RL3

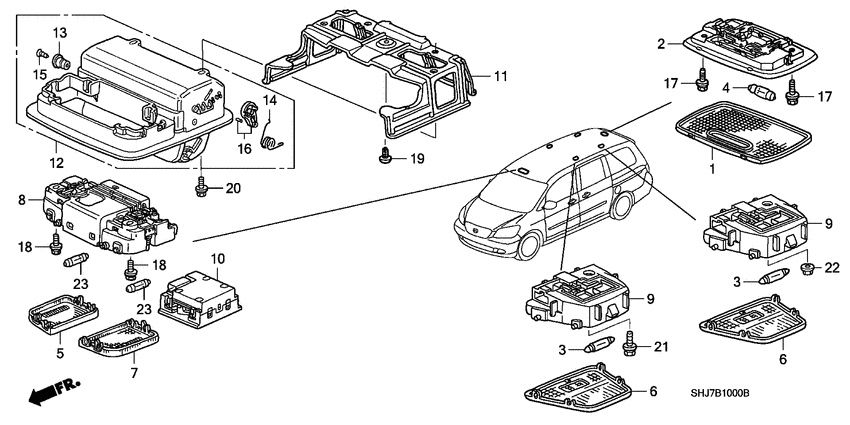

Interior light 16
| # | OEM | Part name |
|---|---|---|
| 1 | 34251-S5A-003 | Lens |
| 3 | 34253-SFE-003 | Bulb - 12V 5W)(DAIICHI |
| 4 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI |
| 4 | 04110-SWA-305 | BULB T10X318W |
| 5 | 34401-SDA-A21 | Lens - R. |
| 6 | 34401-SHJ-A01 | Lens |
| 7 | 34402-SDA-A21 | Lens - L. |
| 8 | 34404-SDA-A22 | Base comp. |
| 9 | 34404-SHJ-A01 | Base comp. |
| 13 | 83251-SDA-A01 | Bush |
| 14 | 83252-SHJ-A01 | Spring |
| 15 | 83255-SDA-A01 | Screw - TAPPING, 3X10 |
| 16 | 83256-SDA-A03 | Cam set - LOCK |
| 17 | 90131-S47-003 | Screw - ET, 5X16 |
| 18 | 90148-S6A-013 | Bolt - EARTH, 5X14 |
| 19 | 91504-SD5-901 | Clip - WASHER MOUTH |
| OEM | Part name | Category |
|---|---|---|
| 04110-SWA-305 | BULB T10X318W | Interior light |
| 34251-S5A-003 | Lens | Interior light |
| 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Interior light |
| 34253-SFE-003 | Bulb - 12V 5W)(DAIICHI | Interior light |
| 34401-SDA-A21 | Lens - R. | Interior light |
| 34401-SHJ-A01 | Lens | Interior light |
| 34402-SDA-A21 | Lens - L. | Interior light |
| 34404-SDA-A22 | Base comp. | Interior light |
| 34404-SHJ-A01 | Base comp. | Interior light |
| 83251-SDA-A01 | Bush | Interior light |
| 83252-SHJ-A01 | Spring | Interior light |
| 83255-SDA-A01 | Screw - TAPPING, 3X10 | Interior light |
| 83256-SDA-A03 | Cam set - LOCK | Interior light |
| 90131-S47-003 | Screw - ET, 5X16 | Interior light |
| 90148-S6A-013 | Bolt - EARTH, 5X14 | Interior light |
| 91504-SD5-901 | Clip - WASHER MOUTH | Interior light |
