RL3

Honda ODYSSEY · 2005 · 2,816 parts · 170 categories
RL3 ×

← Back to categories

2,816 items

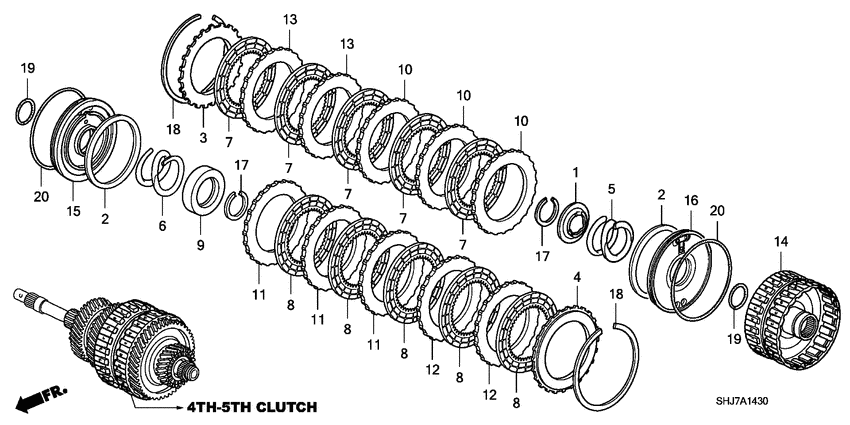

Clutch (4TH-5TH; '07-) 24
#OEMPart name
1 22533-RDK-003 Seat - RETURN SPRING
2 22537-PVL-003 Spring - CLUTCH DISK
3 22575-RJB-003 Plate - CLUTCH END (5) (2.5MM)
3 22579-RJB-003 Plate - CLUTCH END (9) (2.9MM)
3 22574-RJB-003 Plate - CLUTCH END (4) (2.4MM)
3 22578-RJB-003 Plate - CLUTCH END (8) (2.8MM)
3 22573-RJB-003 Plate - CLUTCH END (3) (2.3MM)
3 22577-RJB-003 Plate - CLUTCH END (7) (2.7MM)
3 22572-RJB-003 Plate - CLUTCH END (2) (2.2MM)
3 22576-RJB-003 Plate - CLUTCH END (6) (2.6MM)
3 22571-RJB-003 Plate - CLUTCH END (1) (2.1MM)
5 22642-R97-003 Spring - CLUTCH RETURN
6 22642-RJB-A01 Spring - CLUTCH RETURN
7 22645-RJF-A01 Disk - CLUTCH
9 22654-RJB-003 Seat - RETURN SPRING
10 22657-RJB-013 Plate - CLUTCH (1.6MM)
12 22659-PVL-003 Plate - CLUTCH WAVE (1.6MM)
14 22661-RWE-003 Guide comp - CLUTCH (4-5)
15 22690-RWE-003 Piston comp - CLUTCH
16 22680-RWE-003 Piston comp - CLUTCH
17 90603-P0Z-000 Circlip - EXTERNAL, 44MM
18 90605-P0Z-000 Ring - SNAP, 141MM
19 91302-P0Z-003 O-ring - 44.1X2.2(NOK)
20 91303-PY4-004 O-ring - 119.1X2.3 (NOK)
