RK306

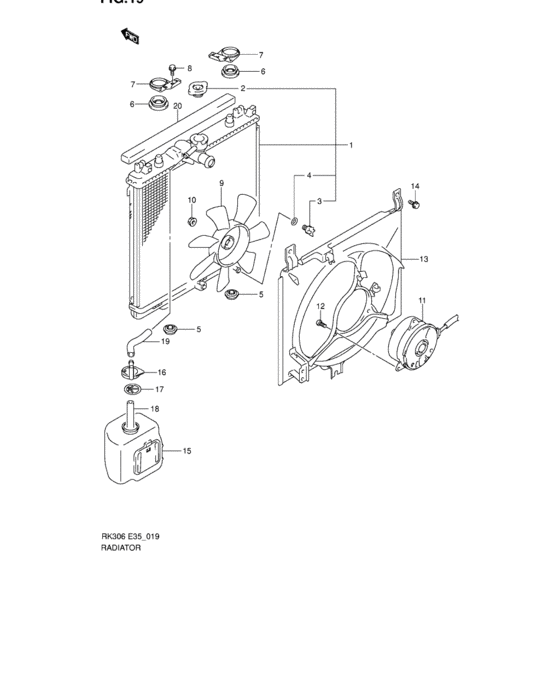

Radiator (RADIATOR) 26
| # | OEM | Part name |
|---|---|---|
| 1 | 17700-83G50-000 | RADIATOR ASSY |
| 2 | 17920-75F00-000 | CAP,RADIATOR |
| 3 | 17751-61A00-000 | PLUG,DRAIN |
| 4 | 17759-72010-000 | O-RING |
| 5 | 17878-75F00-000 | MOUNT,RDTR SUPPORT LWR |
| 6 | 17879-75F00-000 | MOUNT,RDTR SUPPORT UPR |
| 7 | 17861-76G00-000 | Bracket, rdtr sup rh |
| 7 | 17861-73H00-000 | BRACKET,RDTR SUPPORT |
| 8 | 02162-06123-000 | Bolt (6x12) |
| 8 | 02162-0612B-000 | SCREW - Bolt |
| 8 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 9 | 17111-76G01-000 | FAN,COOLING 7 BLADES |
| 10 | 08316-20053-000 | Nut |
| 10 | 08316-2005A-000 | NUT |
| 11 | 17120-76G10-000 | MOTOR ASSY,COOLING FAN |
| 12 | 02142-05103-000 | Screw 5x10 |
| 12 | 02142-0510B-000 | SCREW - Bolt |
| 13 | 17760-78G50-000 | SHROUD ASSY,FAN |
| 14 | 02162-06163-000 | Screw - Bolt |
| 14 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 15 | 17931-73H00-000 | TANK,WATER RESERVE |
| 16 | 17932-76G00-000 | CAP,WATER RESERVE TANK |
| 17 | 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap |
| 18 | 09352-70111-600 | HOSE(7X11X600) |
| 19 | 17938-73H00-000 | HOSE,RDTR TO RSV TANK |
| 20 | 17731-76G00-000 | PACKING,RDTR UPPER |
| OEM | Part name | Category |
|---|---|---|
| 02142-05103-000 | Screw 5x10 | Radiator (RADIATOR) |
| 02142-0510B-000 | SCREW - Bolt | Radiator (RADIATOR) |
| 02162-06123-000 | Bolt (6x12) | Radiator (RADIATOR) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Radiator (RADIATOR) |
| 02162-0612B-000 | SCREW - Bolt | Radiator (RADIATOR) |
| 02162-06163-000 | Screw - Bolt | Radiator (RADIATOR) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Radiator (RADIATOR) |
| 08316-20053-000 | Nut | Radiator (RADIATOR) |
| 08316-2005A-000 | NUT | Radiator (RADIATOR) |
| 09352-70111-600 | HOSE(7X11X600) | Radiator (RADIATOR) |
| 17111-76G01-000 | FAN,COOLING 7 BLADES | Radiator (RADIATOR) |
| 17120-76G10-000 | MOTOR ASSY,COOLING FAN | Radiator (RADIATOR) |
| 17700-83G50-000 | RADIATOR ASSY | Radiator (RADIATOR) |
| 17731-76G00-000 | PACKING,RDTR UPPER | Radiator (RADIATOR) |
| 17751-61A00-000 | PLUG,DRAIN | Radiator (RADIATOR) |
| 17759-72010-000 | O-RING | Radiator (RADIATOR) |
| 17760-78G50-000 | SHROUD ASSY,FAN | Radiator (RADIATOR) |
| 17861-73H00-000 | BRACKET,RDTR SUPPORT | Radiator (RADIATOR) |
| 17861-76G00-000 | Bracket, rdtr sup rh | Radiator (RADIATOR) |
| 17878-75F00-000 | MOUNT,RDTR SUPPORT LWR | Radiator (RADIATOR) |
| 17879-75F00-000 | MOUNT,RDTR SUPPORT UPR | Radiator (RADIATOR) |
| 17920-75F00-000 | CAP,RADIATOR | Radiator (RADIATOR) |
| 17931-73H00-000 | TANK,WATER RESERVE | Radiator (RADIATOR) |
| 17932-76G00-000 | CAP,WATER RESERVE TANK | Radiator (RADIATOR) |
| 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap | Radiator (RADIATOR) |
| 17938-73H00-000 | HOSE,RDTR TO RSV TANK | Radiator (RADIATOR) |
