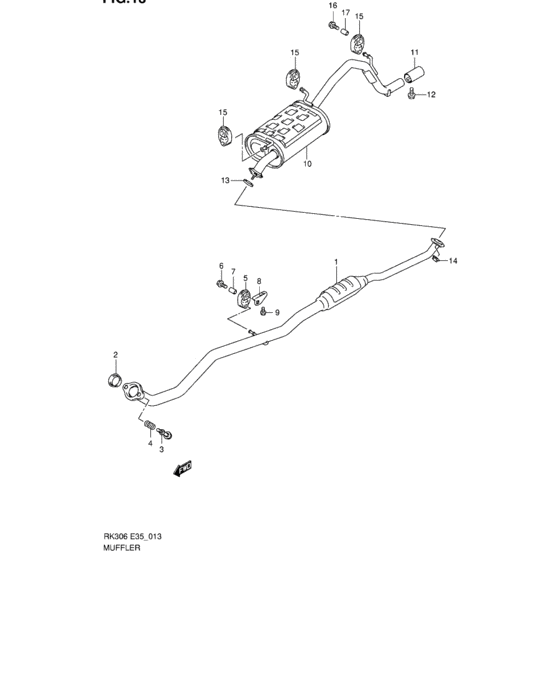

Muffler (MUFFLER)
29
| # | OEM | Part name |
|---|
| 1 |
14190-73H00-000 |
PIPE,EXHAUST |
| 1 |
14190-73H01-000 |
Pipe,exh |
| 2 |
14183-78502-000 |
Ring |
| 2 |
14183-75FC0-000 |
RING,SEAL EXH PIPE |
| 3 |
14493-76G00-000 |
Bolt |
| 3 |
14493-76G01-000 |
BOLT,EXH PIPE |
| 3 |
09119-10039-000 |
Bolt |
| 4 |
14492-83G00-000 |
Spring,exh pipe |
| 4 |
14492-83G01-000 |
SPRING,EXH PIPE |
| 5 |
14281-75F00-000 |
Mounting |
| 5 |
14281-75F01-000 |
MOUNTING,MUF |
| 6 |
01550-08353-000 |
Bolt, rear |
| 6 |
01550-0835B-000 |
Bolt |
| 6 |
01550-0835A-000 |
Bolt |
| 7 |
09180-08057-000 |
Spacer |
| 7 |
09180-08227-000 |
SPACER(8.2X12.5X23.5) |
| 8 |
14284-76G10-000 |
ブラケット,エキゾーストパイプ |
| 8 |
14284-73H00-000 |
BRACKET,EXH PIPE |
| 9 |
02162-06123-000 |
Bolt (6x12) |
| 9 |
02162-0612B-000 |
SCREW - Bolt |
| 9 |
02162-0612A-000 |
SCREW - Bolt, bracket |
| 10 |
14300-73H50-000 |
Muffler |
| 10 |
14300-73HR1-000 |
MUFFLER |
| 10 |
14281-68K00-000 |
MOUNTING,MUF |
| 11 |
14630-78G51-000 |
PIPE,MUFFLER TAIL |
| 13 |
14182-60B00-000 |
GASKET,EXH PIPE |
| 13 |
14182-60B01-000 |
Gasket,exh Pipe |
| 14 |
09159-10049-000 |
Nut |
| 14 |
09159-10102-000 |
NUT |
| OEM |
Part name |
Category |
| 01550-08353-000 |
Bolt, rear |
Muffler (MUFFLER) |
| 01550-0835A-000 |
Bolt |
Muffler (MUFFLER) |
| 01550-0835B-000 |
Bolt |
Muffler (MUFFLER) |
| 02162-06123-000 |
Bolt (6x12) |
Muffler (MUFFLER) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Muffler (MUFFLER) |
| 02162-0612B-000 |
SCREW - Bolt |
Muffler (MUFFLER) |
| 09119-10039-000 |
Bolt |
Muffler (MUFFLER) |
| 09159-10049-000 |
Nut |
Muffler (MUFFLER) |
| 09159-10102-000 |
NUT |
Muffler (MUFFLER) |
| 09180-08057-000 |
Spacer |
Muffler (MUFFLER) |
| 09180-08227-000 |
SPACER(8.2X12.5X23.5) |
Muffler (MUFFLER) |
| 14182-60B00-000 |
GASKET,EXH PIPE |
Muffler (MUFFLER) |
| 14182-60B01-000 |
Gasket,exh Pipe |
Muffler (MUFFLER) |
| 14183-75FC0-000 |
RING,SEAL EXH PIPE |
Muffler (MUFFLER) |
| 14183-78502-000 |
Ring |
Muffler (MUFFLER) |
| 14190-73H00-000 |
PIPE,EXHAUST |
Muffler (MUFFLER) |
| 14190-73H01-000 |
Pipe,exh |
Muffler (MUFFLER) |
| 14281-68K00-000 |
MOUNTING,MUF |
Muffler (MUFFLER) |
| 14281-75F00-000 |
Mounting |
Muffler (MUFFLER) |
| 14281-75F01-000 |
MOUNTING,MUF |
Muffler (MUFFLER) |
| 14284-73H00-000 |
BRACKET,EXH PIPE |
Muffler (MUFFLER) |
| 14284-76G10-000 |
ブラケット,エキゾーストパイプ |
Muffler (MUFFLER) |
| 14300-73H50-000 |
Muffler |
Muffler (MUFFLER) |
| 14300-73HR1-000 |
MUFFLER |
Muffler (MUFFLER) |
| 14492-83G00-000 |
Spring,exh pipe |
Muffler (MUFFLER) |
| 14492-83G01-000 |
SPRING,EXH PIPE |
Muffler (MUFFLER) |
| 14493-76G00-000 |
Bolt |
Muffler (MUFFLER) |
| 14493-76G01-000 |
BOLT,EXH PIPE |
Muffler (MUFFLER) |
| 14630-78G51-000 |
PIPE,MUFFLER TAIL |
Muffler (MUFFLER) |
