RK110

Toyota STOUT · 1979 · 3,837 parts · 159 categories

3,837 items

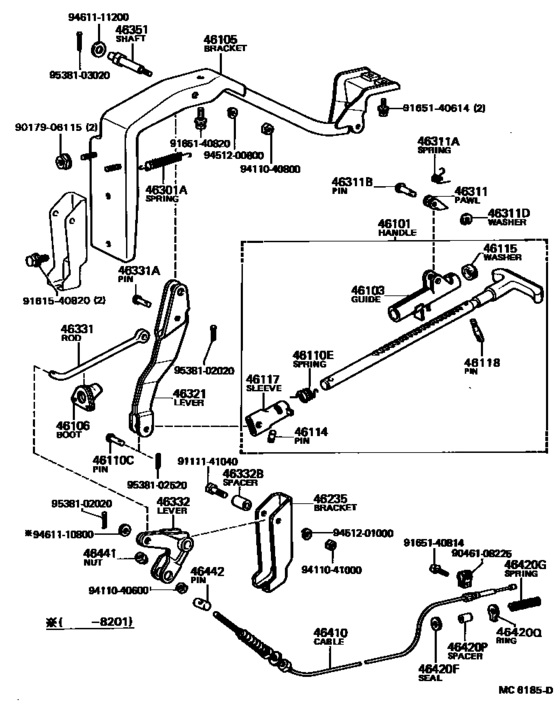

Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA) 52

#	OEM	Part name
46101	46120-35050	Handle Sub-Assy, Parking Brake Control
46103	46103-35070	Guide Sub-Assy, Parking Brake Plunger
46105	46105-35020	Bracket Sub-Assy, Parking Brake Planger Or Pedal
46106	46106-35020	Boot Sub-Assy, Lever Pull Rod
46110	90240-08010	Pin (For Power Take-Off Cable)
46110	90240-08094	Pin, W/hole (For Column Shift Gear Selecting Rod)
46110	90508-14038	Spring, Torsion(For Parking Brake Plunger)
46114	46114-30010	Pin, Parking Brake Plunger
46115	46115-20010	Washer, Parking Brake Plunger
46117	46117-30010	Sleeve, Parking Brake Plunger
46118	46114-20010	Pin(For Parking Brake Handle Set)
46235	46235-35010	Bracket, Parking Brake Lever Support
46301	90506-16020	Spring, Tension(For Intermediate Lever)
46311	46311-28010	Pawl, Parking Brake
46311	90508-08041	Spring(For Parking Brake Pawl)
46311	90249-05010	Pin, Parking Brake Pawl Pivot
46311	90213-03007	Washer, Type C(For Parking Brake Pawl)
46321	46321-35140	Lever, Parking Brake Intermediate
46321	46321-35141	Lever, Parking Brake Intermediate
46331	46331-35020	Rod, Intermediate Lever Pull
46331	90240-08028	Pin, W/hole (For Column Shift Gear Selecting Rod)
46332	46332-35011	Lever, Parking Brake Link
46332	90560-10237	Spacer(For Parking Brake Link Lever)
46351	46351-35020	Shaft, Intermediate Lever Pivot
46410	46410-35200	Cable Assy, Parking Brake, No.1
46420	90303-10001	Seal, Dust(For Parking Brake Cable)
46420	90501-14021	Spring(For Parking Cable Inner Wire Set)
46420	90560-08002	Spacer(For Parking Brake Handle)
46420	96160-00700	Ring, E(For Chain Tensioner Slipper)
46441	46441-30010	Nut, Wire Adjusting, No.1
46442	46442-35010	Pin, Wire Pivot
9017906115	90179-06115	Nut (For Rear Wiper Arm Setting)
9046108225	90461-08225	Clamp, No.3(For Parking Brake Cable)
9111141040	91111-41040	Bolt(For Rear Stabilizer)
9111141040	91111-51040	Shaft, Control Select Lever (For Column Shift)
9161540820	91615-40820	Bolt (for Transmission Control Cable Bracket)
9161540820	91615-60820	Bolt (For Transmission Control Cable Bracket)
9165140614	91651-40614	Bolt
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9165140820	91651-40820	Bolt
9411040600	94110-40600	Nut, Rock
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411041000	94110-41000	Nut(For Steering Damper)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9461110800	94611-10800	Washer, Plate (For Transmission Control Cable)
9461111200	94611-11200	New Genuine Part
9538102020	95381-02020	PIN
9538102520	95381-02520	PINCOTTER
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
46103-35070	Guide Sub-Assy, Parking Brake Plunger	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46105-35020	Bracket Sub-Assy, Parking Brake Planger Or Pedal	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46106-35020	Boot Sub-Assy, Lever Pull Rod	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46114-20010	Pin(For Parking Brake Handle Set)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46114-30010	Pin, Parking Brake Plunger	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46115-20010	Washer, Parking Brake Plunger	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46117-30010	Sleeve, Parking Brake Plunger	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46120-35050	Handle Sub-Assy, Parking Brake Control	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46235-35010	Bracket, Parking Brake Lever Support	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46311-28010	Pawl, Parking Brake	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46321-35140	Lever, Parking Brake Intermediate	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46321-35141	Lever, Parking Brake Intermediate	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46331-35020	Rod, Intermediate Lever Pull	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46332-35011	Lever, Parking Brake Link	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46351-35020	Shaft, Intermediate Lever Pivot	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46410-35200	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46441-30010	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
46442-35010	Pin, Wire Pivot	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90080-11228	New Genuine Part	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90179-06115	Nut (For Rear Wiper Arm Setting)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90213-03007	Washer, Type C(For Parking Brake Pawl)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90240-08010	Pin (For Power Take-Off Cable)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90240-08028	Pin, W/hole (For Column Shift Gear Selecting Rod)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90240-08094	Pin, W/hole (For Column Shift Gear Selecting Rod)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90249-05010	Pin, Parking Brake Pawl Pivot	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90303-10001	Seal, Dust(For Parking Brake Cable)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90461-08225	Clamp, No.3(For Parking Brake Cable)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90501-14021	Spring(For Parking Cable Inner Wire Set)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90506-16020	Spring, Tension(For Intermediate Lever)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90508-08041	Spring(For Parking Brake Pawl)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90508-14038	Spring, Torsion(For Parking Brake Plunger)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90560-08002	Spacer(For Parking Brake Handle)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
90560-10237	Spacer(For Parking Brake Link Lever)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
91111-41040	Bolt(For Rear Stabilizer)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
91111-51040	Shaft, Control Select Lever (For Column Shift)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
91615-40820	Bolt (for Transmission Control Cable Bracket)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
91615-60820	Bolt (For Transmission Control Cable Bracket)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
91651-40614	Bolt	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
91651-40814	BOLT	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
91651-40820	Bolt	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
94110-40600	Nut, Rock	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
94110-40800	Nut(For Steering Damper)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
94110-41000	Nut(For Steering Damper)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
94130-00802	Nut, No.1 (For Center Support Bearing)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
94611-10800	Washer, Plate (For Transmission Control Cable)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
94611-11200	New Genuine Part	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
95381-02020	PIN	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
95381-02520	PINCOTTER	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
96160-00700	Ring, E(For Chain Tensioner Slipper)	Parking Brake & Cable ([03.1979 - ] (7903- )GEN,SA)
