RJ77

Toyota LAND-CRUISER · 1990 · 6,467 parts · 223 categories

6,467 items

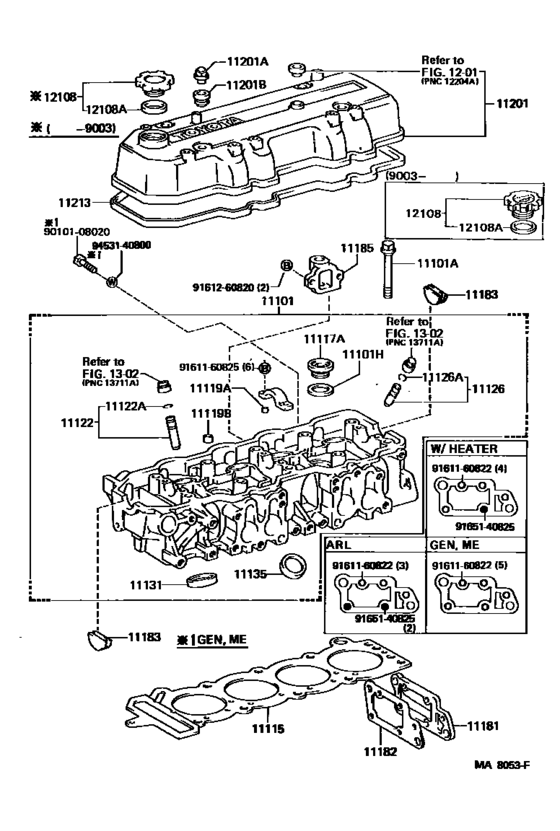

Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R) 44

#	OEM	Part name
11101	11101-35060	Head Sub-Assy, Cylinder
11101	11101-35080	Head Sub-Assy, Cylinder
11101	90105-12092	Bolt(For Cylinder Head Set)
11101	90430-33133	Gasket(For Cylinder Head Screw Plug)
11115	11115-35020	Gasket, Cylinder Head
11115	11115-35022	Gasket, Cylinder Head
11115	11115-35021	Gasket, Cylinder Head
11117	90341-32070	Plug, W/head Taper Screw, No.1
11119	90253-11021	Pin, Ring
11119	90253-16020	Pin, Straight, No.2
11122	11122-35020	Bush, Intake Valve Guide
11122	11123-35020	Bush, Intake Valve Guide
11122	90520-12049	Ring, Shaft Snap (For Valve Guide Bush)
11126	11122-38021	Bush, Intake Valve Guide
11126	11123-38021	Bush, Intake Valve Guide
11131	11131-35011	Seat, Intake Valve
11131	11132-35011	Seat, Intake Valve
11135	11135-35010	Seat, Exhaust Valve
11135	11135-35020	Seat, Exhaust Valve
11135	11136-35010	Seat, Exhaust Valve
11135	11136-35020	Seat, Exhaust Valve
11181	11181-35050	Plate, Cylinder Head, Rear
11182	11182-35050	Gasket, Cylinder Head Rear Plate
11183	11183-38010	Plug, Semicircular
11185	11184-35010	Cover, Cylinder Head Side
11185	11184-35020	Cover, Cylinder Head Side
11201	11201-35031	Cover Sub-Assy, Cylinder Head
11201	11201-35032	Cover Sub-Assy, Cylinder Head
11201	90176-08041	Nut, Cap(For Cylinder Head Cover)
11201	90210-08026	Washer, Seal(For Cylinder Head Cover)
11201	90210-08040	Washer, Seal(For Cylinder Head Cover)
11213	11213-35010	Gasket, Cylinder Head Cover
12108	12180-62010	Cap Sub-Assy, Oil Filler
12108	12180-65011	Cap Sub-Assy, Oil Filler
12108	12180-62011	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
9010108020	90101-08020	New Genuine Part
9161160822	91611-60822	Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161260820	91612-60820	Bolt(For Clutch Release Cylinder Setting)
9161260820	91611-G0820	Bolt
9165140825	91651-40825	Bolt(For Clutch Release Cylinder Setting)
9453140800	94531-40800	New Genuine Part

OEM	Part name	Category
11101-35060	Head Sub-Assy, Cylinder	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11101-35080	Head Sub-Assy, Cylinder	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11115-35020	Gasket, Cylinder Head	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11115-35021	Gasket, Cylinder Head	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11115-35022	Gasket, Cylinder Head	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11122-35020	Bush, Intake Valve Guide	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11122-38021	Bush, Intake Valve Guide	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11123-35020	Bush, Intake Valve Guide	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11123-38021	Bush, Intake Valve Guide	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11131-35011	Seat, Intake Valve	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11132-35011	Seat, Intake Valve	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11135-35010	Seat, Exhaust Valve	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11135-35020	Seat, Exhaust Valve	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11136-35010	Seat, Exhaust Valve	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11136-35020	Seat, Exhaust Valve	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11181-35050	Plate, Cylinder Head, Rear	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11182-35050	Gasket, Cylinder Head Rear Plate	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11183-38010	Plug, Semicircular	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11184-35010	Cover, Cylinder Head Side	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11184-35020	Cover, Cylinder Head Side	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11201-35031	Cover Sub-Assy, Cylinder Head	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11201-35032	Cover Sub-Assy, Cylinder Head	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
11213-35010	Gasket, Cylinder Head Cover	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
12180-62010	Cap Sub-Assy, Oil Filler	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
12180-62011	Cap Sub-Assy, Oil Filler	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
12180-65011	Cap Sub-Assy, Oil Filler	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
90101-08020	New Genuine Part	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
90105-12092	Bolt(For Cylinder Head Set)	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
90176-08041	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
90210-08026	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
90210-08040	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
90253-11021	Pin, Ring	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
90253-16020	Pin, Straight, No.2	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
90341-32070	Plug, W/head Taper Screw, No.1	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
90430-33133	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
90520-12049	Ring, Shaft Snap (For Valve Guide Bush)	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
91611-60822	Bolt	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
91611-G0820	Bolt	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
91612-60820	Bolt(For Clutch Release Cylinder Setting)	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
91651-40825	Bolt(For Clutch Release Cylinder Setting)	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
94531-40800	New Genuine Part	Cylinder Head ([01.1990 - 01.1994] (9001-9401)22R)
