Search › Model › RJ77

RJ77

Toyota LAND-CRUISER · 1990 · 6,467 parts · 223 categories

6,467 items

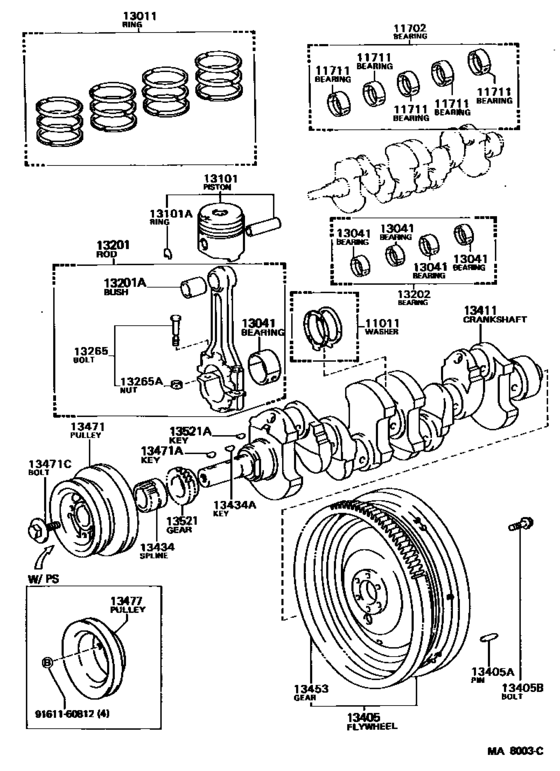

Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R) 39

#	OEM	Part name
11011	11011-35020	Washer Set, Crankshaft Thrust
11011	11012-35030	Washer Set, Crankshaft Thrust
11011	11013-35030	Washer Set, Crankshaft Thrust
11702	11704-35040	Bearing Set, Crankshaft
11711	11701-35030-03	Bearing, Crankshaft
11711	11701-35030-04	Bearing, Crankshaft
11711	11701-35030-05	Bearing, Crankshaft
13011	13011-35071	Ring Set, Piston
13011	13013-35071	Ring Set, Piston
13011	13015-35071	Ring Set, Piston
13041	13041-35030-A0	Bearing, Connecting Rod
13041	13041-35030-B0	Bearing Set, Connecting Rod
13041	13041-35030-C0	Bearing, Connecting Rod
13101	13101-35032-01	Piston Sub-Assy, W/pin
13101	13101-35032-02	Piston Sub-Assy, W/pin
13101	13101-35032-03	Piston Sub-Assy, W/pin
13101	13103-35042	Piston Sub-Assy, W/pin
13101	13105-35042	Piston Sub-Assy, W/pin
13101	90521-25105	Ring, Hole Snap(For Piston Pin)
13201	13201-39015	Rod Sub-Assy, Connecting
13201	90999-73072	Bush(For Connecting Rod Small End)
13202	13204-35040	Bearing Set, Connecting Rod
13265	13265-39025	Bolt, Connecting Rod
13265	90170-10198	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-35021	Flywheel Sub-Assy
13405	90250-08054	Pin, Straight
13405	90913-01011	Bolt, Flywheel Setting
13411	13411-38010	Crankshaft
13434	13434-35010	Spline, Oil Pump Drive
13434	90280-05005	Key(For Oil Pump Drive Spline)
13434	90280-05010	Key(For Oil Pump Drive Spline)
13453	13453-20010	Gear, Flywheel Ring
13471	13408-38010	Pulley, Crankshaft
13471	90105-14004	Bolt(For Crankshaft Pulley Set)
13477	13477-38010	Pulley, Crankshaft, No.2
13521	13521-35010	Gear Or Sprocket, Crankshaft Timing
13521	13521-75010	Gear Or Sprocket, Crankshaft Timing
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt

OEM	Part name	Category
11011-35020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
11012-35030	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
11013-35030	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
11701-35030-03	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
11701-35030-04	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
11701-35030-05	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
11704-35040	Bearing Set, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13011-35071	Ring Set, Piston	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13013-35071	Ring Set, Piston	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13015-35071	Ring Set, Piston	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13041-35030-A0	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13041-35030-B0	Bearing Set, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13041-35030-C0	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13101-35032-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13101-35032-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13101-35032-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13103-35042	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13105-35042	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13201-39015	Rod Sub-Assy, Connecting	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13204-35040	Bearing Set, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13265-39025	Bolt, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13405-35021	Flywheel Sub-Assy	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13408-38010	Pulley, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13411-38010	Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13434-35010	Spline, Oil Pump Drive	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13453-20010	Gear, Flywheel Ring	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13477-38010	Pulley, Crankshaft, No.2	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13521-35010	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
13521-75010	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
90105-14004	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
90170-10198	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
90250-08054	Pin, Straight	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
90280-05005	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
90280-05010	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
90521-25105	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
90913-01011	Bolt, Flywheel Setting	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
90999-73072	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)
91611-B0812	Bolt	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)22R)

Source: Public OEM parts-catalog data
Variants: 1 / 10
Category: 223
Collected: 2026-08-02
