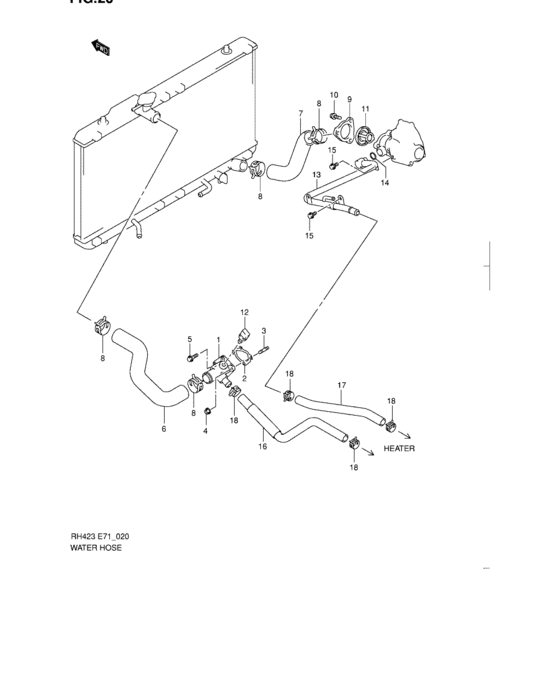

Water hose (WATER HOSE)
18
| # | OEM | Part name |
|---|
| 1 |
17570-54G00-000 |
CAP,WTR OUTLET |
| 2 |
17579-77EA0-000 |
GASKET,WTR OUTLET CAP |
| 3 |
01421-0620A-000 |
BOLT,STUD |
| 4 |
08316-1006A-000 |
NUT |
| 5 |
01550-0620A-000 |
Bolt |
| 6 |
17852-54G10-000 |
HOSE,RADIATOR INLET |
| 7 |
17854-54G10-000 |
HOSE,RADIATOR OUTLET |
| 8 |
09401-35403-000 |
CLIP |
| 9 |
17560-77EA0-000 |
Cap,wtr thermostat |
| 9 |
17560-57L00-000 |
CAP,WTR THERMOSTAT |
| 11 |
17670-65D00-000 |
THERMOSTAT,WATER 82 DEG |
| 12 |
13650-73H00-000 |
Sensor,water Temp |
| 13 |
17880-54G00-000 |
PIPE,HEATER OUTLET |
| 14 |
17889-77EA1-000 |
O-RING,HTR PIPE |
| 15 |
01550-0612A-000 |
Bolt |
| 16 |
17871-54G20-000 |
HOSE,HEATER INLET |
| 17 |
17872-54G20-000 |
HOSE,HEATER OUTLET |
| 18 |
09401-21405-000 |
CLIP |
| OEM |
Part name |
Category |
| 01421-0620A-000 |
BOLT,STUD |
Water hose (WATER HOSE) |
| 01550-0612A-000 |
Bolt |
Water hose (WATER HOSE) |
| 01550-0620A-000 |
Bolt |
Water hose (WATER HOSE) |
| 08316-1006A-000 |
NUT |
Water hose (WATER HOSE) |
| 09401-21405-000 |
CLIP |
Water hose (WATER HOSE) |
| 09401-35403-000 |
CLIP |
Water hose (WATER HOSE) |
| 13650-73H00-000 |
Sensor,water Temp |
Water hose (WATER HOSE) |
| 17560-57L00-000 |
CAP,WTR THERMOSTAT |
Water hose (WATER HOSE) |
| 17560-77EA0-000 |
Cap,wtr thermostat |
Water hose (WATER HOSE) |
| 17570-54G00-000 |
CAP,WTR OUTLET |
Water hose (WATER HOSE) |
| 17579-77EA0-000 |
GASKET,WTR OUTLET CAP |
Water hose (WATER HOSE) |
| 17670-65D00-000 |
THERMOSTAT,WATER 82 DEG |
Water hose (WATER HOSE) |
| 17852-54G10-000 |
HOSE,RADIATOR INLET |
Water hose (WATER HOSE) |
| 17854-54G10-000 |
HOSE,RADIATOR OUTLET |
Water hose (WATER HOSE) |
| 17871-54G20-000 |
HOSE,HEATER INLET |
Water hose (WATER HOSE) |
| 17872-54G20-000 |
HOSE,HEATER OUTLET |
Water hose (WATER HOSE) |
| 17880-54G00-000 |
PIPE,HEATER OUTLET |
Water hose (WATER HOSE) |
| 17889-77EA1-000 |
O-RING,HTR PIPE |
Water hose (WATER HOSE) |
