| 01421-0855A-000 |
BOLT,STUD |

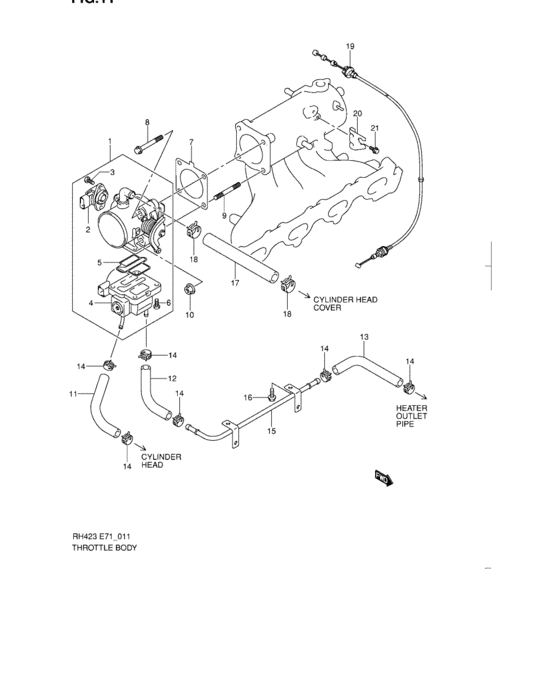

Throttle body (THROTTLE BODY) |
| 01550-0612A-000 |
Bolt |
Throttle body (THROTTLE BODY) |
| 01550-0855A-000 |
Bolt - Bolt, gear holder |
Throttle body (THROTTLE BODY) |
| 08316-1008A-000 |
NUT - Nut, idle gear shaft |
Throttle body (THROTTLE BODY) |
| 09103-06265-000 |
BOLT(6X12) |
Throttle body (THROTTLE BODY) |
| 09355-13207-600 |
HOSE(13X20X600) - Hose, breather |
Throttle body (THROTTLE BODY) |
| 09356-75141-600 |
HOSE(7.5X14.5X600) |
Throttle body (THROTTLE BODY) |
| 09401-12410-000 |
CLIP - Clip, filter outlet |
Throttle body (THROTTLE BODY) |
| 09401-18404-000 |
CLIP |
Throttle body (THROTTLE BODY) |
| 13400-54G11-000 |
BODY ASSY,THROTTLE |
Throttle body (THROTTLE BODY) |
| 13420-54G00-000 |
SENSORTHROTTLE POSITION |
Throttle body (THROTTLE BODY) |
| 13420-54G01-000 |
SENSOR,THROTTLE POSITION |
Throttle body (THROTTLE BODY) |
| 13421-52D00-000 |
GASKET,THROTTLE BODY |
Throttle body (THROTTLE BODY) |
| 13428-77G10-000 |
Screw |
Throttle body (THROTTLE BODY) |
| 13428-77G1V-000 |
SCREW,4X12 |
Throttle body (THROTTLE BODY) |
| 13450-77EA1-000 |
PIPE,WATER |
Throttle body (THROTTLE BODY) |
| 13491-54G20-000 |
HOSE,THROT BODY INLET |
Throttle body (THROTTLE BODY) |
| 13492-54G00-000 |
HOSE,WTR THROT BODY OUTLET |
Throttle body (THROTTLE BODY) |
| 14139-54G10-000 |
GASKET,IAC VALVE |
Throttle body (THROTTLE BODY) |
| 15910-54G22-000 |
CABLE ASSY,ACCEL |
Throttle body (THROTTLE BODY) |
| 15919-62G00-000 |
GUIDE,ACCEL CABLE |
Throttle body (THROTTLE BODY) |
| 18136-54G00-000 |
SCREW,IAC VALVE |
Throttle body (THROTTLE BODY) |
| 18137-54G00-000 |
VALVE,IAC |
Throttle body (THROTTLE BODY) |
