Search › Model › RH423
RH423

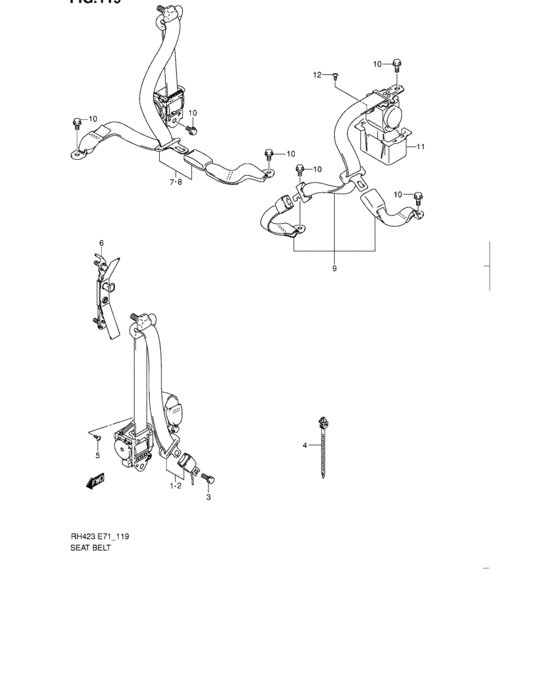

Seat belt (SEAT BELT) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 84901-55G60-ED3 | BELT ASSY,FR,R |
| 1 | 84901-55G60-BHE | BELT ASSY,FR,R |
| 2 | 84902-55G40-ED3 | BELT ASSY,FR,L |
| 2 | 84902-55G40-BHE | BELT ASSY,FR,L |
| 3 | 09117-11001-000 | Bolt (11x20) - Bolt, 2nd belt buckle |
| 3 | 09117-11002-000 | BOLT(11X20) |
| 4 | 09407-11402-000 | CLAMP(L:90) |
| 4 | 09407-17402-000 | CLAMP |
| 5 | 03141-0612A-000 | SCREW |
| 6 | 84990-65DB0-6GS | ADJUSTER ASSY,FR SHLDR |
| 7 | 84904-55G10-ED3 | BELT ASSY,RR,R |
| 7 | 84904-55G10-BHE | BELT ASSY,RR,R |
| 8 | 84905-55G10-ED3 | BELT ASSY,RR,L |
| 8 | 84905-55G10-BHE | Belt assy,rr,l |
| 9 | 84906-55G50-P4Z | BELT ASSY,RR CENTER |
| 9 | 84906-55G50-5PK | BELT ASSY,RR CENTER |
| 10 | 09103-11002-000 | BOLT(7/16X22) |
| 11 | 84988-55G00-000 | COVER,CTR BELT |
| 12 | 03141-0516A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03141-0516A-000 | SCREW | Seat belt (SEAT BELT) |
| 03141-0612A-000 | SCREW | Seat belt (SEAT BELT) |
| 09103-11002-000 | BOLT(7/16X22) | Seat belt (SEAT BELT) |
| 09117-11001-000 | Bolt (11x20) - Bolt, 2nd belt buckle | Seat belt (SEAT BELT) |
| 09117-11002-000 | BOLT(11X20) | Seat belt (SEAT BELT) |
| 09407-11402-000 | CLAMP(L:90) | Seat belt (SEAT BELT) |
| 09407-17402-000 | CLAMP | Seat belt (SEAT BELT) |
| 84901-55G60-BHE | BELT ASSY,FR,R | Seat belt (SEAT BELT) |
| 84901-55G60-ED3 | BELT ASSY,FR,R | Seat belt (SEAT BELT) |
| 84902-55G40-BHE | BELT ASSY,FR,L | Seat belt (SEAT BELT) |
| 84902-55G40-ED3 | BELT ASSY,FR,L | Seat belt (SEAT BELT) |
| 84904-55G10-BHE | BELT ASSY,RR,R | Seat belt (SEAT BELT) |
| 84904-55G10-ED3 | BELT ASSY,RR,R | Seat belt (SEAT BELT) |
| 84905-55G10-BHE | Belt assy,rr,l | Seat belt (SEAT BELT) |
| 84905-55G10-ED3 | BELT ASSY,RR,L | Seat belt (SEAT BELT) |
| 84906-55G50-5PK | BELT ASSY,RR CENTER | Seat belt (SEAT BELT) |
| 84906-55G50-P4Z | BELT ASSY,RR CENTER | Seat belt (SEAT BELT) |
| 84988-55G00-000 | COVER,CTR BELT | Seat belt (SEAT BELT) |
| 84990-65DB0-6GS | ADJUSTER ASSY,FR SHLDR | Seat belt (SEAT BELT) |
