Search › Model › RH423
RH423

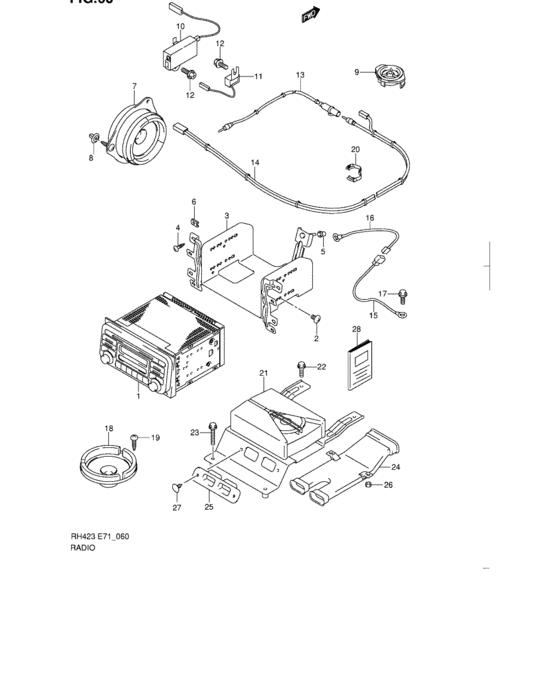

Radio (RADIO) 34
| # | OEM | Part name |
|---|---|---|
| 1 | 39101-59JC0-000 | TUNER ASSY |
| 1 | 39101-59JD0-000 | Tuner assy - Am/fm,6cd changer |
| 1 | 39101-59JD1-000 | TUNER ASSY |
| 1 | 39101-59JE0-000 | TUNER ASSY |
| 1 | 39101-59JF0-000 | TUNER ASSY |
| 2 | 02142-0508A-000 | SCREW - Screw, cap |
| 2 | 02142-0506A-000 | SCREW |
| 3 | 39320-59J00-000 | BRACKET,TUNER |
| 4 | 03541-0516A-000 | SCREW |
| 5 | 34955-59J00-000 | BUSH,RADIO BRKT |
| 6 | 09148-05045-000 | NUT |
| 7 | 39104-59J21-000 | SPEAKER ASSY |
| 8 | 09148-05035-000 | NUT |
| 9 | 39102-59J10-000 | SPEAKER ASSY,TWEETER |
| 10 | 39290-55G01-000 | AMP,ANTENNA |
| 11 | 39295-55G00-000 | FILTER ASSY,NOISE |
| 12 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 12 | 09115-06005-000 | BOLT(6X16) |
| 13 | 39270-59J10-000 | FEEDER,ANT I/P |
| 14 | 39271-55G00-000 | FEEDER,ANT ROOF |
| 15 | 39312-60B20-000 | WIRE,NOISE SUPPR NO.1 |
| 16 | 39312-60G00-000 | WIRE,NOISE SUPPR |
| 18 | 39102-54G21-000 | SPEAKER ASSY,RR |
| 19 | 03111-0516A-000 | SCREW |
| 20 | 36667-55G00-000 | CLAMP,NOISE SUPPRESSOR |
| 21 | 39104-59J00-000 | SPEAKER ASSY,SUB |
| 22 | 01550-0620A-000 | Bolt |
| 23 | 01550-0635A-000 | Bolt |
| 24 | 74654-59J00-000 | DUCT,RR |
| 25 | 74351-59J00-000 | GARNISH,RR HTR |
| 26 | 08361-1505A-000 | NUT |
| 27 | 09409-05307-5ES | CLIP(BLACK) |
| 28 | 39103-51J00-000 | Manual, sub woofer |
| 28 | 39106-66J20-000 | Owner's manual,sub speaker |
| OEM | Part name | Category |
|---|---|---|
| 01550-0620A-000 | Bolt | Radio (RADIO) |
| 01550-0635A-000 | Bolt | Radio (RADIO) |
| 02142-0506A-000 | SCREW | Radio (RADIO) |
| 02142-0508A-000 | SCREW - Screw, cap | Radio (RADIO) |
| 03111-0516A-000 | SCREW | Radio (RADIO) |
| 03541-0516A-000 | SCREW | Radio (RADIO) |
| 08361-1505A-000 | NUT | Radio (RADIO) |
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Radio (RADIO) |
| 09115-06005-000 | BOLT(6X16) | Radio (RADIO) |
| 09148-05035-000 | NUT | Radio (RADIO) |
| 09148-05045-000 | NUT | Radio (RADIO) |
| 09409-05307-5ES | CLIP(BLACK) | Radio (RADIO) |
| 34955-59J00-000 | BUSH,RADIO BRKT | Radio (RADIO) |
| 36667-55G00-000 | CLAMP,NOISE SUPPRESSOR | Radio (RADIO) |
| 39101-59JC0-000 | TUNER ASSY | Radio (RADIO) |
| 39101-59JD0-000 | Tuner assy - Am/fm,6cd changer | Radio (RADIO) |
| 39101-59JD1-000 | TUNER ASSY | Radio (RADIO) |
| 39101-59JE0-000 | TUNER ASSY | Radio (RADIO) |
| 39101-59JF0-000 | TUNER ASSY | Radio (RADIO) |
| 39102-54G21-000 | SPEAKER ASSY,RR | Radio (RADIO) |
| 39102-59J10-000 | SPEAKER ASSY,TWEETER | Radio (RADIO) |
| 39103-51J00-000 | Manual, sub woofer | Radio (RADIO) |
| 39104-59J00-000 | SPEAKER ASSY,SUB | Radio (RADIO) |
| 39104-59J21-000 | SPEAKER ASSY | Radio (RADIO) |
| 39106-66J20-000 | Owner's manual,sub speaker | Radio (RADIO) |
| 39270-59J10-000 | FEEDER,ANT I/P | Radio (RADIO) |
| 39271-55G00-000 | FEEDER,ANT ROOF | Radio (RADIO) |
| 39290-55G01-000 | AMP,ANTENNA | Radio (RADIO) |
| 39295-55G00-000 | FILTER ASSY,NOISE | Radio (RADIO) |
| 39312-60B20-000 | WIRE,NOISE SUPPR NO.1 | Radio (RADIO) |
| 39312-60G00-000 | WIRE,NOISE SUPPR | Radio (RADIO) |
| 39320-59J00-000 | BRACKET,TUNER | Radio (RADIO) |
| 74351-59J00-000 | GARNISH,RR HTR | Radio (RADIO) |
| 74654-59J00-000 | DUCT,RR | Radio (RADIO) |
