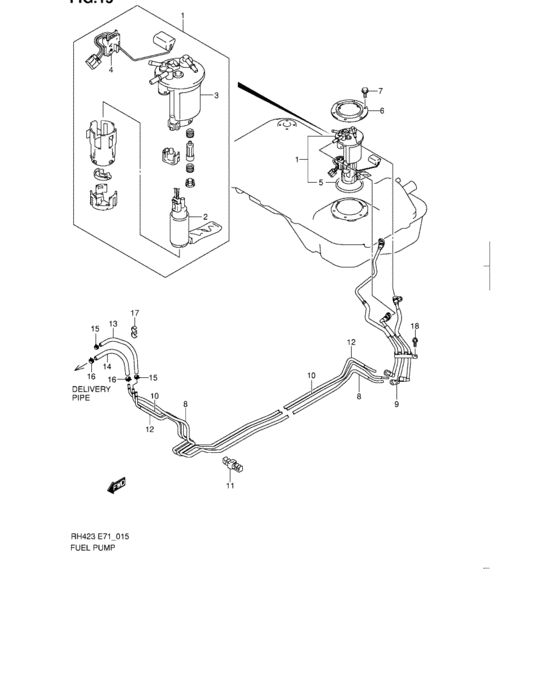

Fuel Pump (FUEL PUMP)
19
| # | OEM | Part name |
|---|
| 1 |
15100-54840-000 |
PUMP SET,FUEL |
| 2 |
15110-54G10-000 |
PUMP ASSY,FUEL |
| 3 |
15310-54G10-000 |
FILTER |
| 4 |
34810-54G00-000 |
GAUGE ASSY,FUEL LEVEL |
| 5 |
15111-50G01-000 |
GASKET,FUEL PUMP |
| 6 |
15121-50G00-000 |
PLATE,FUEL PUMP |
| 7 |
02162-0610A-000 |
SCREW |
| 8 |
15811-54G00-000 |
PIPE,FUEL FEED |
| 9 |
15820-54G10-000 |
PIPE,FUEL TANK SIDE |
| 10 |
15861-54G00-000 |
PIPE,FUEL RTN |
| 11 |
15882-54G00-000 |
CLAMP,FUEL PIPE |
| 12 |
18351-54G00-000 |
PIPE,PURGE |
| 13 |
15856-54G00-000 |
HOSE,FUEL RTN |
| 14 |
15815-54G00-000 |
HOSE,FUEL FEED |
| 15 |
09401-10409-000 |
CLIP |
| 16 |
09401-13419-000 |
CLIP |
| 17 |
09408-00121-000 |
CLAMP |
| 18 |
02162-0616A-000 |
SCREW |
| 18 |
02162-0616B-000 |
SCREW - Bolt, adjust |
| OEM |
Part name |
Category |
| 02162-0610A-000 |
SCREW |
Fuel Pump (FUEL PUMP) |
| 02162-0616A-000 |
SCREW |
Fuel Pump (FUEL PUMP) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
Fuel Pump (FUEL PUMP) |
| 09401-10409-000 |
CLIP |
Fuel Pump (FUEL PUMP) |
| 09401-13419-000 |
CLIP |
Fuel Pump (FUEL PUMP) |
| 09408-00121-000 |
CLAMP |
Fuel Pump (FUEL PUMP) |
| 15100-54840-000 |
PUMP SET,FUEL |
Fuel Pump (FUEL PUMP) |
| 15110-54G10-000 |
PUMP ASSY,FUEL |
Fuel Pump (FUEL PUMP) |
| 15111-50G01-000 |
GASKET,FUEL PUMP |
Fuel Pump (FUEL PUMP) |
| 15121-50G00-000 |
PLATE,FUEL PUMP |
Fuel Pump (FUEL PUMP) |
| 15310-54G10-000 |
FILTER |
Fuel Pump (FUEL PUMP) |
| 15811-54G00-000 |
PIPE,FUEL FEED |
Fuel Pump (FUEL PUMP) |
| 15815-54G00-000 |
HOSE,FUEL FEED |
Fuel Pump (FUEL PUMP) |
| 15820-54G10-000 |
PIPE,FUEL TANK SIDE |
Fuel Pump (FUEL PUMP) |
| 15856-54G00-000 |
HOSE,FUEL RTN |
Fuel Pump (FUEL PUMP) |
| 15861-54G00-000 |
PIPE,FUEL RTN |
Fuel Pump (FUEL PUMP) |
| 15882-54G00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (FUEL PUMP) |
| 18351-54G00-000 |
PIPE,PURGE |
Fuel Pump (FUEL PUMP) |
| 34810-54G00-000 |
GAUGE ASSY,FUEL LEVEL |
Fuel Pump (FUEL PUMP) |
