RH423

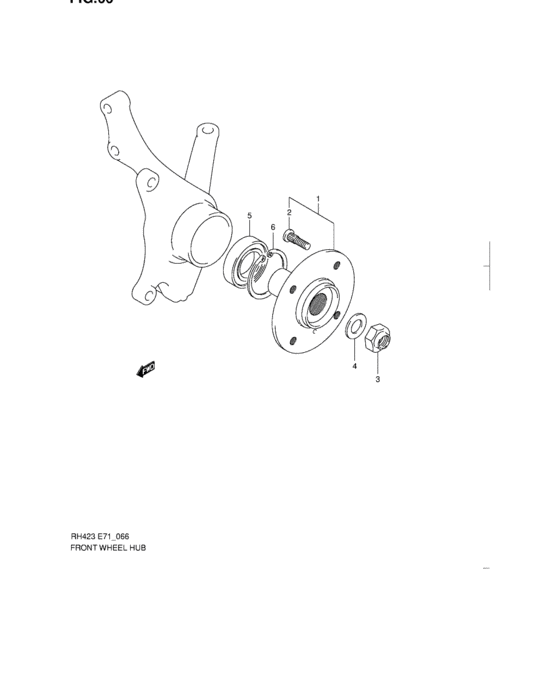

Front wheel hub (FRONT WHEEL HUB) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 43420-50852-000 | Hub,front wheel |
| 1 | 43420-50853-000 | HUB SET,FR WHL |
| 2 | 09119-12012-000 | BOLT(12X38) |
| 3 | 09159-18008-000 | NUT |
| 4 | 09160-18017-000 | WASHER(18X35X4) |
| 5 | 43440-54G01-000 | BEARING FRONT WHEEL |
| 5 | 43440-54G02-000 | BEARING,FR WHEEL |
| 6 | 09381-72002-000 | RING,SNAP |
| OEM | Part name | Category |
|---|---|---|
| 09119-12012-000 | BOLT(12X38) | Front wheel hub (FRONT WHEEL HUB) |
| 09159-18008-000 | NUT | Front wheel hub (FRONT WHEEL HUB) |
| 09160-18017-000 | WASHER(18X35X4) | Front wheel hub (FRONT WHEEL HUB) |
| 09381-72002-000 | RING,SNAP | Front wheel hub (FRONT WHEEL HUB) |
| 43420-50852-000 | Hub,front wheel | Front wheel hub (FRONT WHEEL HUB) |
| 43420-50853-000 | HUB SET,FR WHL | Front wheel hub (FRONT WHEEL HUB) |
| 43440-54G01-000 | BEARING FRONT WHEEL | Front wheel hub (FRONT WHEEL HUB) |
| 43440-54G02-000 | BEARING,FR WHEEL | Front wheel hub (FRONT WHEEL HUB) |
