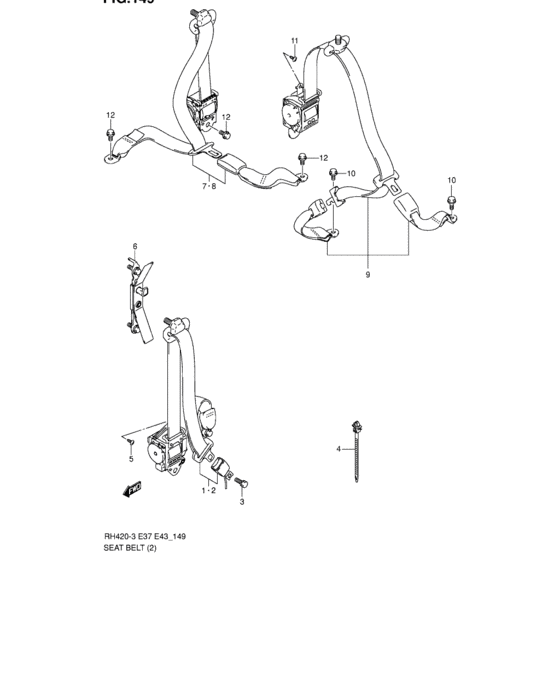

Seat belt (5DR)
14
| # | OEM | Part name |
|---|
| 1 |
84901-54GE1-ED3 |
BELT ASSY,FR,R |
| 2 |
84902-54GE1-ED3 |
BELT ASSY,FR,L |
| 3 |
09118-11001-000 |
BOLT(11X23.5) |
| 4 |
09407-11402-000 |
CLAMP(L:90) |
| 4 |
09407-17402-000 |
CLAMP |
| 5 |
03141-06123-000 |
Screw 6x12 |
| 5 |
03141-0612A-000 |
SCREW |
| 6 |
84990-65DB0-6GS |
ADJUSTER ASSY,FR SHLDR |
| 7 |
84904-54G10-ED3 |
BELT ASSY,RR,R |
| 8 |
84905-54G10-ED3 |
BELT ASSY,RR,L |
| 9 |
84906-54G60-ED3 |
Belt assy,rr center |
| 10 |
09103-11002-000 |
BOLT(7/16X22) |
| 11 |
02162-06163-000 |
Screw - Bolt |
| 11 |
02162-0616B-000 |
SCREW - Bolt, adjust |
| OEM |
Part name |
Category |
| 02162-06163-000 |
Screw - Bolt |
Seat belt (5DR) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
Seat belt (5DR) |
| 03141-06123-000 |
Screw 6x12 |
Seat belt (5DR) |
| 03141-0612A-000 |
SCREW |
Seat belt (5DR) |
| 09103-11002-000 |
BOLT(7/16X22) |
Seat belt (5DR) |
| 09118-11001-000 |
BOLT(11X23.5) |
Seat belt (5DR) |
| 09407-11402-000 |
CLAMP(L:90) |
Seat belt (5DR) |
| 09407-17402-000 |
CLAMP |
Seat belt (5DR) |
| 84901-54GE1-ED3 |
BELT ASSY,FR,R |
Seat belt (5DR) |
| 84902-54GE1-ED3 |
BELT ASSY,FR,L |
Seat belt (5DR) |
| 84904-54G10-ED3 |
BELT ASSY,RR,R |
Seat belt (5DR) |
| 84905-54G10-ED3 |
BELT ASSY,RR,L |
Seat belt (5DR) |
| 84906-54G60-ED3 |
Belt assy,rr center |
Seat belt (5DR) |
| 84990-65DB0-6GS |
ADJUSTER ASSY,FR SHLDR |
Seat belt (5DR) |
