Search › Model › RH420
RH420

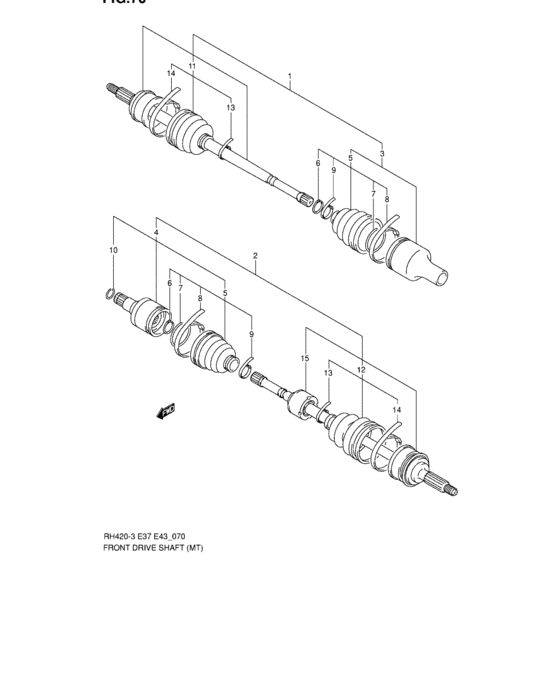

Drive shaft (MT) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 44101-54G90-000 | SHAFT ASSY,FRONT DRIVE,R |
| 2 | 44102-54G90-000 | SHAFT ASSY,FRONT DRIVE,L |
| 3 | 44117-54G90-000 | JOINT ASSY,DIFF SIDE |
| 4 | 44117-54GK0-000 | Joint assy, diff side |
| 4 | 44117-54GK1-000 | JOINT ASSY,DIFF SIDE |
| 5 | 44119-54G90-000 | Boot set, diff side |
| 5 | 44119-55G50-000 | BOOT SET,DIFF SIDE |
| 6 | 44111-53B10-000 | RING,SNAP |
| 7 | 44114-60A00-000 | CIRCLIP |
| 8 | 44123-60A00-000 | CLAMP,BOOT - Clamp, universal joint |
| 9 | 44124-60A00-000 | BAND |
| 10 | 44111-65D00-000 | RING,SNAP |
| 11 | 44118-54G90-000 | Boot set, wheel side |
| 11 | 44118-54G91-000 | BOOT SET,WHEEL SIDE |
| 12 | 44118-54GK0-000 | Boot set, wheel side |
| 13 | 44121-54G90-000 | BAND,BOOT SMALL |
| 14 | 44122-54G90-000 | BAND,BOOT |
| 15 | 44125-54GK0-000 | DAMPER SET |
| OEM | Part name | Category |
|---|---|---|
| 44101-54G90-000 | SHAFT ASSY,FRONT DRIVE,R | Drive shaft (MT) |
| 44102-54G90-000 | SHAFT ASSY,FRONT DRIVE,L | Drive shaft (MT) |
| 44111-53B10-000 | RING,SNAP | Drive shaft (MT) |
| 44111-65D00-000 | RING,SNAP | Drive shaft (MT) |
| 44114-60A00-000 | CIRCLIP | Drive shaft (MT) |
| 44117-54G90-000 | JOINT ASSY,DIFF SIDE | Drive shaft (MT) |
| 44117-54GK0-000 | Joint assy, diff side | Drive shaft (MT) |
| 44117-54GK1-000 | JOINT ASSY,DIFF SIDE | Drive shaft (MT) |
| 44118-54G90-000 | Boot set, wheel side | Drive shaft (MT) |
| 44118-54G91-000 | BOOT SET,WHEEL SIDE | Drive shaft (MT) |
| 44118-54GK0-000 | Boot set, wheel side | Drive shaft (MT) |
| 44119-54G90-000 | Boot set, diff side | Drive shaft (MT) |
| 44119-55G50-000 | BOOT SET,DIFF SIDE | Drive shaft (MT) |
| 44121-54G90-000 | BAND,BOOT SMALL | Drive shaft (MT) |
| 44122-54G90-000 | BAND,BOOT | Drive shaft (MT) |
| 44123-60A00-000 | CLAMP,BOOT - Clamp, universal joint | Drive shaft (MT) |
| 44124-60A00-000 | BAND | Drive shaft (MT) |
| 44125-54GK0-000 | DAMPER SET | Drive shaft (MT) |
