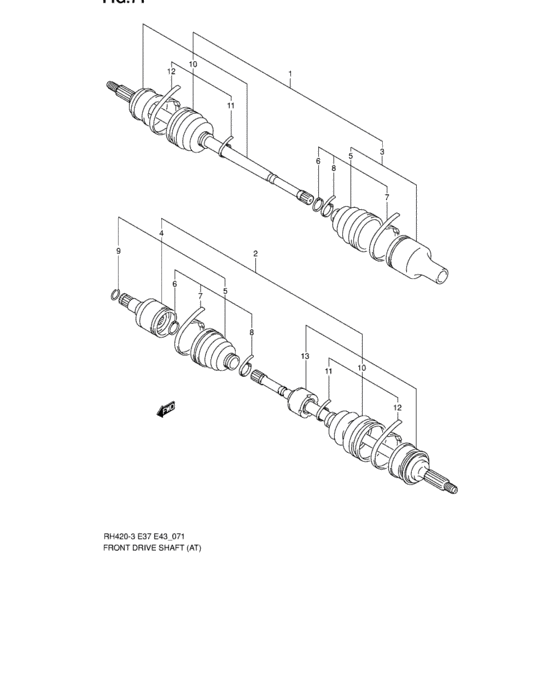

Drive shaft (AT)
13
| # | OEM | Part name |
|---|
| 1 |
44101-54G70-000 |
SHAFT ASSY,FRONT DRIVE,R |
| 2 |
44102-54G70-000 |
SHAFT ASSY,FRONT DRIVE,L |
| 3 |
44117-54G70-000 |
JOINT ASSY,DIFF SIDE |
| 4 |
44117-54G80-000 |
Joint assy,diff side,l |
| 5 |
44119-54G70-000 |
BOOT SET,DIFF SIDE |
| 6 |
44211-54G70-000 |
CIRCLIP |
| 7 |
44222-50F00-000 |
BAND,BOOT |
| 8 |
44223-50F00-000 |
BAND,BOOT |
| 9 |
44177-54G50-000 |
RING,SNAP |
| 10 |
44118-54G70-000 |
BOOT SET,WHEEL SIDE |
| 11 |
44124-54G70-000 |
BAND,BOOT |
| 12 |
44122-54G70-000 |
BAND,BOOT |
| 13 |
44125-54G70-000 |
DAMPER SET |
| OEM |
Part name |
Category |
| 44101-54G70-000 |
SHAFT ASSY,FRONT DRIVE,R |
Drive shaft (AT) |
| 44102-54G70-000 |
SHAFT ASSY,FRONT DRIVE,L |
Drive shaft (AT) |
| 44117-54G70-000 |
JOINT ASSY,DIFF SIDE |
Drive shaft (AT) |
| 44117-54G80-000 |
Joint assy,diff side,l |
Drive shaft (AT) |
| 44118-54G70-000 |
BOOT SET,WHEEL SIDE |
Drive shaft (AT) |
| 44119-54G70-000 |
BOOT SET,DIFF SIDE |
Drive shaft (AT) |
| 44122-54G70-000 |
BAND,BOOT |
Drive shaft (AT) |
| 44124-54G70-000 |
BAND,BOOT |
Drive shaft (AT) |
| 44125-54G70-000 |
DAMPER SET |
Drive shaft (AT) |
| 44177-54G50-000 |
RING,SNAP |
Drive shaft (AT) |
| 44211-54G70-000 |
CIRCLIP |
Drive shaft (AT) |
| 44222-50F00-000 |
BAND,BOOT |
Drive shaft (AT) |
| 44223-50F00-000 |
BAND,BOOT |
Drive shaft (AT) |
