RH420

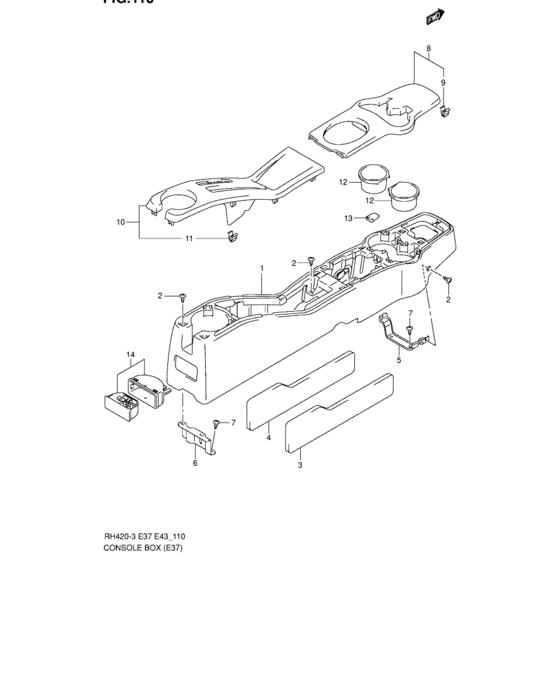

Console box (Brazil) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 75811-54G30-P4Z | BOX,FLOOR CONSOLE |
| 2 | 03142-05123-000 | Screw - Screw, belt cooling duct |
| 2 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 3 | 75851-76F00-000 | SILENCER,CONSOLE BOX REAR,R |
| 4 | 75852-76F00-000 | SILENCER,CONSOLE BOX REAR,L |
| 5 | 75815-54G10-000 | Bracket,floor console box fr |
| 6 | 75816-54G00-000 | Bracket,floor console box rr |
| 8 | 75821-54G20-P4Z | GARNISH,GEAR SHIFT AT |
| 9 | 09409-08326-000 | CLIP |
| 10 | 75830-54G10-P4Z | GARNISH,PARK LEVER |
| 12 | 75846-54G00-P4Z | ADAPTER,CUP HOLDER |
| 13 | 75845-54G00-000 | SUPPORT,CUP HOLDER |
| 14 | 89850-60B00-P4Z | アッシュトレー,リヤ(グレー) |
| 14 | 89850-50J00-P4Z | ASHTRAY,RR |
| OEM | Part name | Category |
|---|---|---|
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Console box (Brazil) |
| 03142-05123-000 | Screw - Screw, belt cooling duct | Console box (Brazil) |
| 09409-08326-000 | CLIP | Console box (Brazil) |
| 75811-54G30-P4Z | BOX,FLOOR CONSOLE | Console box (Brazil) |
| 75815-54G10-000 | Bracket,floor console box fr | Console box (Brazil) |
| 75816-54G00-000 | Bracket,floor console box rr | Console box (Brazil) |
| 75821-54G20-P4Z | GARNISH,GEAR SHIFT AT | Console box (Brazil) |
| 75830-54G10-P4Z | GARNISH,PARK LEVER | Console box (Brazil) |
| 75845-54G00-000 | SUPPORT,CUP HOLDER | Console box (Brazil) |
| 75846-54G00-P4Z | ADAPTER,CUP HOLDER | Console box (Brazil) |
| 75851-76F00-000 | SILENCER,CONSOLE BOX REAR,R | Console box (Brazil) |
| 75852-76F00-000 | SILENCER,CONSOLE BOX REAR,L | Console box (Brazil) |
| 89850-50J00-P4Z | ASHTRAY,RR | Console box (Brazil) |
| 89850-60B00-P4Z | アッシュトレー,リヤ(グレー) | Console box (Brazil) |
