Search › Model › RH42

RH42

Toyota HIACE · 1977 · 4,655 parts · 190 categories

4,655 items

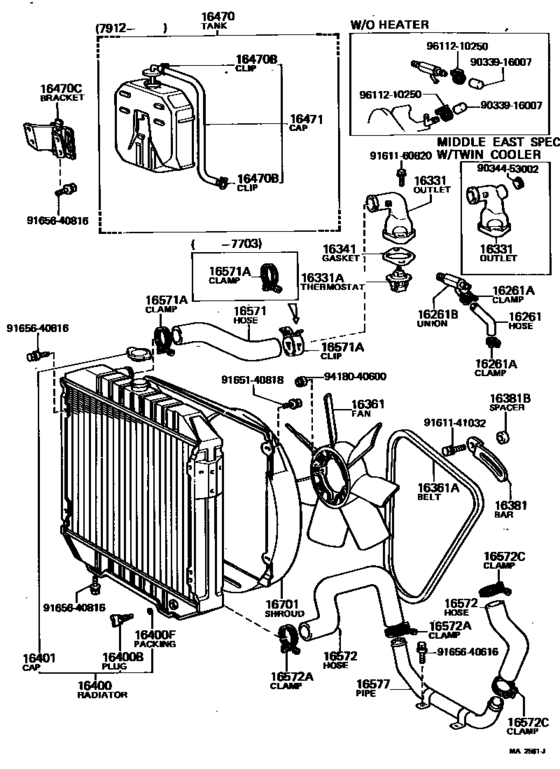

Radiator & Water Outlet ([02.1977 - ] (7702- )18R) 61

#	OEM	Part name
16261	90910-05106	Hose, Water By-Pass
16261	96112-10160	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	90404-17005	Union(For Water By-Pass Hose)
16331	16331-34120	Outlet, Water
16331	16331-36012	Outlet, Water
16331	90916-03036	Thermostat
16331	90916-03078	Thermostat
16331	90916-03040	Thermostat
16341	16341-38010	Gasket, Water Outlet
16341	16341-34010	Gasket, Water Outlet
16341	16341-38011	Gasket, Water Outlet
16341	16341-49010	Gasket, Water Outlet
16361	16361-34030	Fan
16361	16361-38010	Fan
16361	99321-00840	Belt, V(For Fan & Alternator)
16361	99521-10839	Belt, V(For Fan & Alternator)
16381	16381-34030	Bar, Fan Belt Adjusting
16381	90560-10005	Spacer, Fan Belt Adjusting Bar
16400	16400-34230	Radiator Assy
16400	16400-34321	Radiator Assy
16400	16400-34320	Radiator Assy
16400	16417-24051	Plug, Radiator Drain Cock
16400	16418-24051	Packing(For Radiator Drain Cock)
16401	16401-23070	Cap Sub-Assy, Radiator
16401	16401-41021	Cap Sub-Assy, Radiator
16470	16470-95A01	Tank Assy, Radiator Reserve
16470	16470-95A07	Tank Assy, Radiator Reserve
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16470	16402-95A00	Bracket(For Radiator Reserve Tank)
16471	16405-95A02	Cap Sub-Assy, Reserve Tank
16471	16405-95A04	Cap Sub-Assy, Reserve Tank
16471	16405-95A03	Cap Sub-Assy, Reserve Tank
16571	16571-36041	Hose, Radiator, Inlet
16571	90467-37001	Clip(For Water Inlet Hose)
16571	90467-37003	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96111-10430	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96111-10440	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96111-10450	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-36030	Hose, Radiator, Outlet
16572	16572-36031	Hose, Radiator, Outlet
16572	16573-34011	Hose, Radiator, Outlet
16572	96111-10460	Clamp Or Clip, Hose(For Radiator Inlet)
16572	96111-10480	Clamp Or Clip, Hose(For Radiator Outlet No.1)
16577	16577-36011	Pipe, Radiator, No.7
16577	16577-36012	Pipe, Radiator, No.7
16701	16711-36050	Shroud Sub-Assy, Fan
9033916007	90339-16007	Plug
9033916007	90339-16001	Plug, Heater Water
9034453002	90344-53002	Plug, W/head Taper Screw, No.1
9161141032	91611-41032	New Genuine Part
9161141032	91612-61032	New Genuine Part
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9165140818	91651-40818	BOLT, W-WASHER
9165640616	91656-40616	Bolt
9165640616	91651-60614	Bolt
9165640816	91656-40816	New Genuine Part
9165640816	91651-B0814	Bolt with washer
9165640816	90119-A0109	New Genuine Part
9418040600	94180-40600	Retainer, Roof Window Hinge
9611210250	96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)

OEM	Part name	Category
16331-34120	Outlet, Water	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16331-36012	Outlet, Water	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16341-34010	Gasket, Water Outlet	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16341-38010	Gasket, Water Outlet	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16341-38011	Gasket, Water Outlet	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16341-49010	Gasket, Water Outlet	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16361-34030	Fan	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16361-38010	Fan	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16381-34030	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16400-34230	Radiator Assy	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16400-34320	Radiator Assy	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16400-34321	Radiator Assy	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16401-23070	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16401-41021	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16402-95A00	Bracket(For Radiator Reserve Tank)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16405-95A02	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16405-95A03	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16405-95A04	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16417-24051	Plug, Radiator Drain Cock	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16418-24051	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16470-95A01	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16470-95A07	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16571-36041	Hose, Radiator, Inlet	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16572-36030	Hose, Radiator, Outlet	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16572-36031	Hose, Radiator, Outlet	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16573-34011	Hose, Radiator, Outlet	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16577-36011	Pipe, Radiator, No.7	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16577-36012	Pipe, Radiator, No.7	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
16711-36050	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90119-A0109	New Genuine Part	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90339-16001	Plug, Heater Water	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90339-16007	Plug	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90344-53002	Plug, W/head Taper Screw, No.1	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90404-17005	Union(For Water By-Pass Hose)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90467-37001	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90467-37003	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90560-10005	Spacer, Fan Belt Adjusting Bar	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90910-05106	Hose, Water By-Pass	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90916-03036	Thermostat	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90916-03040	Thermostat	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
90916-03078	Thermostat	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
91611-41032	New Genuine Part	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
91611-60820	Bolt(For Transaxle & Engine Setting)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
91611-G0820	Bolt	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
91612-61032	New Genuine Part	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
91651-40818	BOLT, W-WASHER	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
91651-60614	Bolt	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
91651-B0814	Bolt with washer	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
91656-40616	Bolt	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
91656-40816	New Genuine Part	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
94180-40600	Retainer, Roof Window Hinge	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
96111-10430	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
96111-10440	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
96111-10450	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
96111-10460	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
96111-10480	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
96112-10160	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
99321-00840	Belt, V(For Fan & Alternator)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
99521-10839	Belt, V(For Fan & Alternator)	Radiator & Water Outlet ([02.1977 - ] (7702- )18R)
