RH42

Toyota HIACE · 1977 · 4,655 parts · 190 categories
RH42 ×

← Back to categories

4,655 items

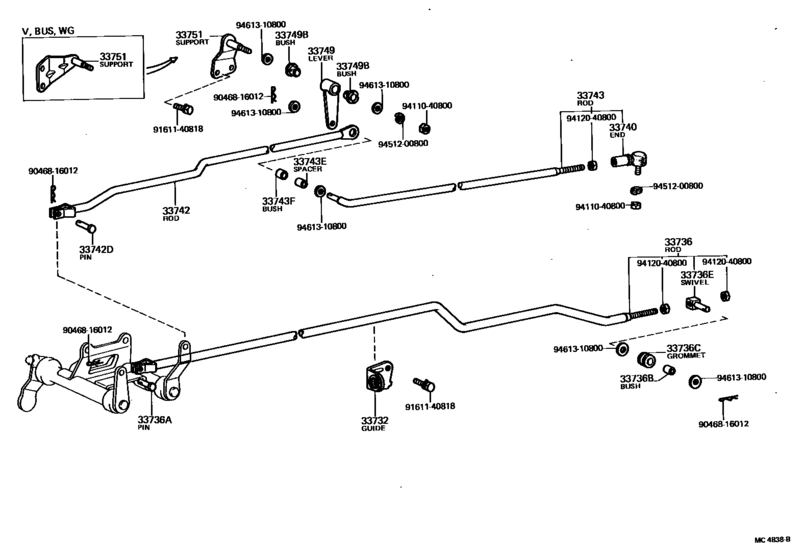

Control Shaft & Crossshaft ([02.1977 - ] (7702- )4H) 24
#OEMPart name
33732 33732-26013 Guide, Selecting Rod
33736 33790-26060 Rod, Gear Selecting, No.2(For Column Shift)
33736 90240-08094 Pin, W/hole (For Column Shift Gear Selecting Rod)
33736 90387-08071 Bush(For Gear Selecting Rod, No.2)
33736 90480-17254 Grommet(For Gear Selecting Rod, No.2)
33736 33723-26010 Swivel, Connecting Rod (For Floor Shift)
33740 33740-35011 End Assy, Connecting Rod, No.1(For Column Shift)
33740 33740-26010 End Assy, Connecting Rod, No.1(For Column Shift)
33742 33742-26013 Rod, Gear Shifting, No.2(For Column Shift)
33743 33840-26023 Rod, Gear Shifting, No.3 (For Column Shift)
33743 33840-26024 Rod, Gear Shifting, No.3 (For Column Shift)
33743 90560-08366 Spacer (For Floor Shift Control Cable)
33743 90385-10063 Bush (For Floor Shift Control Shaft)
33749 33749-26023 Lever, Gear Shifting, No.3 (For Column Shift)
33749 90386-13007 Bush(For Clutch Pedal)
33751 33705-26040 Support, Gear Shift Link Lever (For Column Shift)
9046816012 90468-16012 Pin, Sub Seat Cushion Pin
9161140818 91611-40818 Bolt(for Oil Receiver Pipe)
9161140818 90119-08830 Bolt(For Oil Receiver Pipe)
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461310800 94613-10800 Spacer (For Control Select Lever Support)
