RH418

Suzuki LIANA · 3,879 parts · 200 categories
RH418 ×

← Back to categories

3,879 items

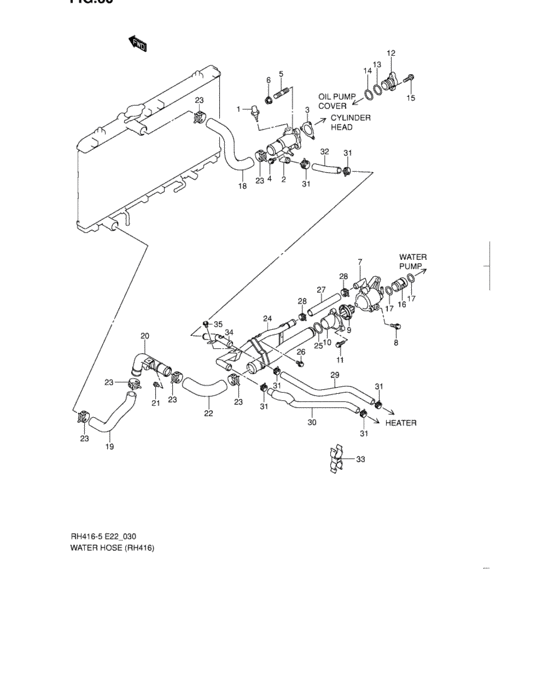

Water hose (RH416) 36
#OEMPart name
1 13650-54G00-000 Sensor,water Temp
2 17570-86G00-000 CAP,WATER OUTLET
3 17699-69G00-000 GASKET,WATER OUTLET CAP
4 01550-0825A-000 Bolt
5 01421-0825A-000 BOLT,STUD
6 08316-1008A-000 NUT - Nut, idle gear shaft
7 17690-63J00-000 CASE COMPTHERMOSTAT
7 01550-0620A-000 Bolt
7 17561-80JA0-000 CAP,WATER THERMOSTAT
7 17690-80JA0-000 CASE,THERMOSTAT
8 01550-0835A-000 Bolt
9 17670-65D00-000 THERMOSTAT,WATER 82 DEG
10 17561-63J00-000 CAPWATER THERMOSTAT
11 01550-0625A-000 Bolt
12 17581-69G00-000 CAP,WATER OUTLET
13 17582-54D00-000 O-RING,NO.1 D:3.5 ID:30.7
14 17583-54D00-000 O-RING,NO.2 D:3.8 ID:27.7
15 01550-0845A-000 Bolt - Bolt, oil pump (s)
16 17831-69G00-000 PIPE,THERMO CASE WATER OUTLET
17 09280-28008-000 O RING(D:3.5,ID:27.7)
18 17852-55GA0-000 Hose, radiator inlet
18 17852-55GB0-000 HOSE,RADIATOR INLET
19 17854-55GA0-000 Hose, radiator outlet
19 17854-55GA1-000 HOSE,RADIATOR OUTLET
20 17860-55GA0-000 PIPE,WATER INLET NO.2
21 01550-0612A-000 Bolt
22 17853-69G00-000 HOSE,WATER INLET
23 09401-35403-000 CLIP
24 17840-55GA0-000 PIPE,WATER INLET NO.1
27 17873-69G00-000 HOSE,WATER BYPASS
28 09401-21405-000 CLIP
29 17871-55GA0-000 HOSE,HEATER INLET NO.1
30 17872-55GA0-000 HOSE,HEATER OUTLET
32 17875-55GA0-000 HOSE,HEATER INLET NO.2
33 09408-00166-000 CLAMP
34 17830-55GA0-000 PIPE,HEATER INLET
