RH418

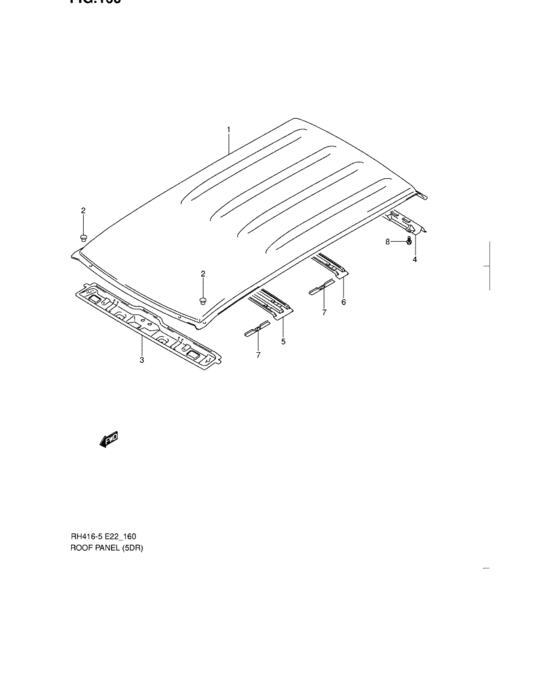

Roof panel (5DR) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 65111-54G00-000 | PANEL,ROOF |
| 2 | 65112-84000-000 | STUD,MOLDING |
| 3 | 65121-54G00-000 | RAIL,ROOF FR INNER |
| 4 | 65130-54G10-000 | MEMBER,ROOF BACK INR |
| 5 | 65151-54G00-000 | REINF,ROOF PANEL CTR NO.1 |
| 6 | 65152-54G01-000 | REINF,ROOF PANEL CTR NO.2 |
| 7 | 65161-54G00-000 | BRACKET,ROOF CARRIER |
| 8 | 01550-0612A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Roof panel (5DR) |
| 65111-54G00-000 | PANEL,ROOF | Roof panel (5DR) |
| 65112-84000-000 | STUD,MOLDING | Roof panel (5DR) |
| 65121-54G00-000 | RAIL,ROOF FR INNER | Roof panel (5DR) |
| 65130-54G10-000 | MEMBER,ROOF BACK INR | Roof panel (5DR) |
| 65151-54G00-000 | REINF,ROOF PANEL CTR NO.1 | Roof panel (5DR) |
| 65152-54G01-000 | REINF,ROOF PANEL CTR NO.2 | Roof panel (5DR) |
| 65161-54G00-000 | BRACKET,ROOF CARRIER | Roof panel (5DR) |
