| 01551-0816A-000 |
ボルト |

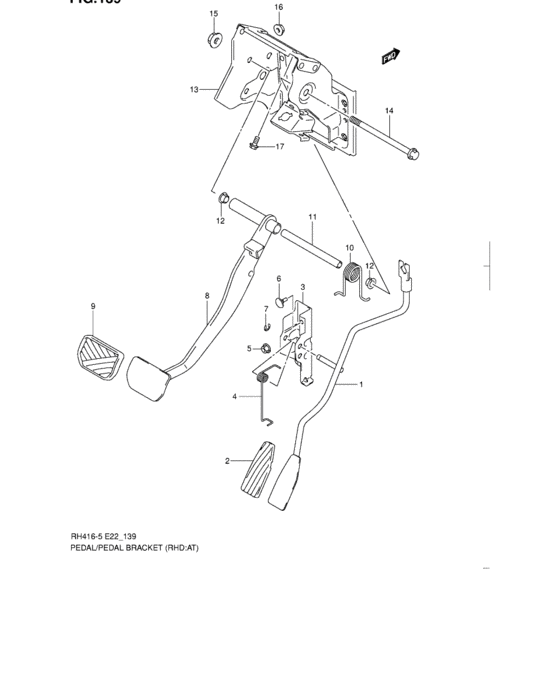

Pedal/pedal bracket (RHD:AT) |
| 01551-0816C-000 |
Bolt |
Pedal/pedal bracket (RHD:AT) |
| 08316-10103-000 |
Nut |
Pedal/pedal bracket (RHD:AT) |
| 08316-1010B-000 |
NUT |
Pedal/pedal bracket (RHD:AT) |
| 08332-11073-000 |
E ring |
Pedal/pedal bracket (RHD:AT) |
| 08332-1107A-000 |
E RING |
Pedal/pedal bracket (RHD:AT) |
| 09103-10123-000 |
BOLT(10X165) |
Pedal/pedal bracket (RHD:AT) |
| 09159-08069-000 |
Nut |
Pedal/pedal bracket (RHD:AT) |
| 09159-08135-000 |
NUT |
Pedal/pedal bracket (RHD:AT) |
| 09180-10134-000 |
SPACER(10X13X148.2) |
Pedal/pedal bracket (RHD:AT) |
| 09307-13005-000 |
BUSH - Bushing |
Pedal/pedal bracket (RHD:AT) |
| 09321-06026-000 |
CUSHION |
Pedal/pedal bracket (RHD:AT) |
| 49410-54G00-000 |
ペダル,アクセレレータ |
Pedal/pedal bracket (RHD:AT) |
| 49410-54G01-000 |
PEDAL,ACCELERATOR |
Pedal/pedal bracket (RHD:AT) |
| 49451-60B00-000 |
PAD,ACCELERATOR PEDAL |
Pedal/pedal bracket (RHD:AT) |
| 49491-54G00-000 |
SPRING,ACCELERATOR PEDAL |
Pedal/pedal bracket (RHD:AT) |
| 49511-54G00-000 |
BRACKET,ACCELERATOR PEDAL |
Pedal/pedal bracket (RHD:AT) |
| 49610-55G10-000 |
PEDAL,BRAKE |
Pedal/pedal bracket (RHD:AT) |
| 49691-54G00-000 |
SPRING,BRAKE PEDAL RETURN |
Pedal/pedal bracket (RHD:AT) |
| 49710-55G00-000 |
BRACKET,PEDAL |
Pedal/pedal bracket (RHD:AT) |
| 49751-58J10-000 |
PAD,PEDAL |
Pedal/pedal bracket (RHD:AT) |
