Search › Model › RH418
RH418

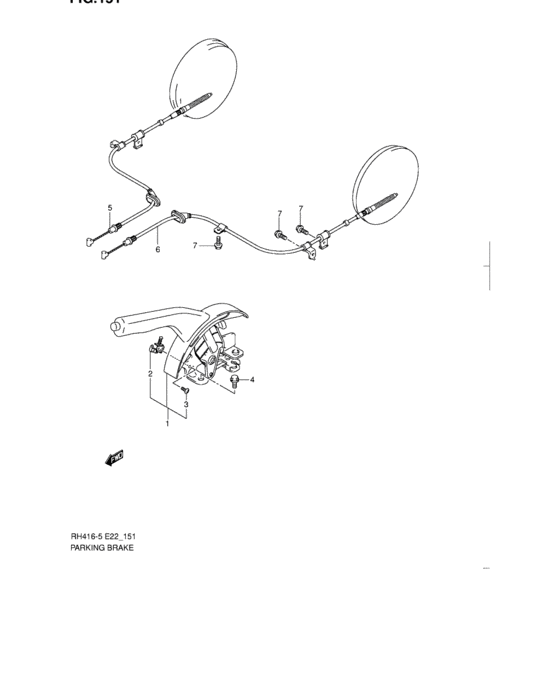

Parking brake (PARKING BRAKE) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 54100-59J00-P4Z | LEVER ASSY,PARKING BK |
| 1 | 54100-59J01-P4Z | LEVER ASSY,PARK BK(GRAY) |
| 2 | 37940-59J00-000 | SWITCH ASSY,PARKING BRAKE |
| 3 | 54115-76G00-000 | SCREW |
| 4 | 01551-0816A-000 | ボルト |
| 4 | 01551-0816C-000 | Bolt |
| 5 | 54401-54G00-000 | CABLE,PARKING BRAKE,R |
| 6 | 54402-54G00-000 | CABLE,PARKING BRAKE,L |
| 7 | 02162-0612A-000 | SCREW - Bolt, bracket |
| OEM | Part name | Category |
|---|---|---|
| 01551-0816A-000 | ボルト | Parking brake (PARKING BRAKE) |
| 01551-0816C-000 | Bolt | Parking brake (PARKING BRAKE) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Parking brake (PARKING BRAKE) |
| 37940-59J00-000 | SWITCH ASSY,PARKING BRAKE | Parking brake (PARKING BRAKE) |
| 54100-59J00-P4Z | LEVER ASSY,PARKING BK | Parking brake (PARKING BRAKE) |
| 54100-59J01-P4Z | LEVER ASSY,PARK BK(GRAY) | Parking brake (PARKING BRAKE) |
| 54115-76G00-000 | SCREW | Parking brake (PARKING BRAKE) |
| 54401-54G00-000 | CABLE,PARKING BRAKE,R | Parking brake (PARKING BRAKE) |
| 54402-54G00-000 | CABLE,PARKING BRAKE,L | Parking brake (PARKING BRAKE) |
