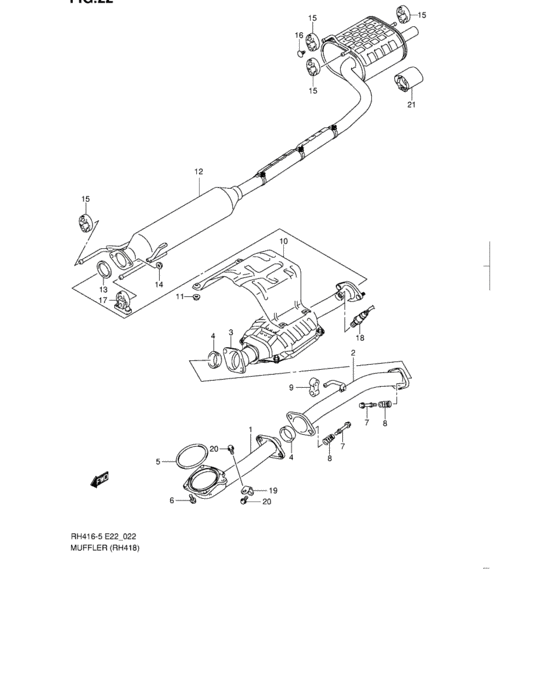

Muffler (RH418)
24
| # | OEM | Part name |
|---|
| 1 |
14190-54G31-000 |
PIPE,EXH NO.1 |
| 2 |
14220-54G11-000 |
PIPE,EXH NO.2 |
| 3 |
14250-55GB0-000 |
CASE,CATALYST |
| 4 |
14183-76A00-000 |
RING,SEAL EXH PIPE |
| 5 |
14181-70H00-000 |
GASKET,EXH MANF |
| 6 |
09103-10324-000 |
BOLT(10X20) |
| 7 |
09119-10073-000 |
BOLT(10X65) |
| 8 |
14492-65G00-000 |
SPRING,EXH PIPE |
| 9 |
14281-70H00-000 |
MOUNTINGMUFFLER |
| 9 |
14281-80JA0-000 |
MOUNTING,MUF |
| 10 |
14231-54G00-000 |
INSULATOR,CATALYST HEAT |
| 11 |
14357-72J00-000 |
NUT |
| 12 |
14300-55G60-000 |
MUFFLER |
| 12 |
14300-54G60-000 |
MUFFLER |
| 13 |
14184-60G00-000 |
GASKET,EXH PIPE |
| 14 |
09159-10049-000 |
Nut |
| 14 |
09159-10102-000 |
NUT |
| 16 |
09409-11302-5PK |
CLIP(BLACK) |
| 17 |
14281-54G00-000 |
MOUNTINGMUFFLER |
| 17 |
14281-80J00-000 |
MOUNTING,MUF |
| 18 |
18213-65G31-000 |
Sensor, oxygen |
| 18 |
18213-65G32-000 |
SENSOR,OXYGEN |
| 19 |
14271-54G20-000 |
STIFFENER,EXH MANF |
| 21 |
14630-54G11-000 |
PIPE,TAIL |
| OEM |
Part name |
Category |
| 09103-10324-000 |
BOLT(10X20) |
Muffler (RH418) |
| 09119-10073-000 |
BOLT(10X65) |
Muffler (RH418) |
| 09159-10049-000 |
Nut |
Muffler (RH418) |
| 09159-10102-000 |
NUT |
Muffler (RH418) |
| 09409-11302-5PK |
CLIP(BLACK) |
Muffler (RH418) |
| 14181-70H00-000 |
GASKET,EXH MANF |
Muffler (RH418) |
| 14183-76A00-000 |
RING,SEAL EXH PIPE |
Muffler (RH418) |
| 14184-60G00-000 |
GASKET,EXH PIPE |
Muffler (RH418) |
| 14190-54G31-000 |
PIPE,EXH NO.1 |
Muffler (RH418) |
| 14220-54G11-000 |
PIPE,EXH NO.2 |
Muffler (RH418) |
| 14231-54G00-000 |
INSULATOR,CATALYST HEAT |
Muffler (RH418) |
| 14250-55GB0-000 |
CASE,CATALYST |
Muffler (RH418) |
| 14271-54G20-000 |
STIFFENER,EXH MANF |
Muffler (RH418) |
| 14281-54G00-000 |
MOUNTINGMUFFLER |
Muffler (RH418) |
| 14281-70H00-000 |
MOUNTINGMUFFLER |
Muffler (RH418) |
| 14281-80J00-000 |
MOUNTING,MUF |
Muffler (RH418) |
| 14281-80JA0-000 |
MOUNTING,MUF |
Muffler (RH418) |
| 14300-54G60-000 |
MUFFLER |
Muffler (RH418) |
| 14300-55G60-000 |
MUFFLER |
Muffler (RH418) |
| 14357-72J00-000 |
NUT |
Muffler (RH418) |
| 14492-65G00-000 |
SPRING,EXH PIPE |
Muffler (RH418) |
| 14630-54G11-000 |
PIPE,TAIL |
Muffler (RH418) |
| 18213-65G31-000 |
Sensor, oxygen |
Muffler (RH418) |
| 18213-65G32-000 |
SENSOR,OXYGEN |
Muffler (RH418) |
