Search › Model › RH418
RH418

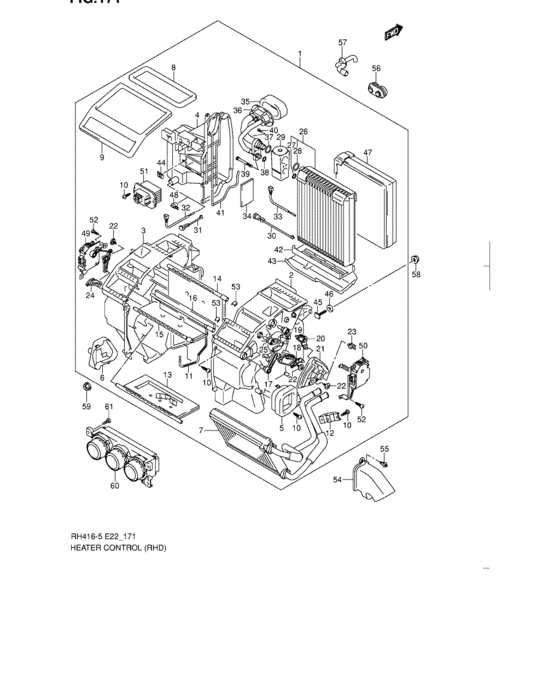

Heater control (RHD) 66
| # | OEM | Part name |
|---|---|---|
| 1 | 74100-59JA1-000 | HEATER UNIT |
| 1 | 74100-59J01-000 | HEATER UNIT |
| 1 | 74100-59J81-000 | HEATER UNIT |
| 2 | 74111-59J00-000 | CASE,HTR DRIVER SIDE |
| 2 | 74111-59J80-000 | CASE,HTR DRIVER SIDE |
| 3 | 74112-59J00-000 | CASE,HTR ASSISTANT SIDE |
| 4 | 74113-54G00-000 | DUCT,AIR JOINT |
| 5 | 74116-59J00-000 | DUCT,AIR,R |
| 6 | 74115-59J00-000 | DUCT,AIR,L |
| 7 | 74120-54G01-000 | CORE,HEATER |
| 8 | 74139-59J00-000 | PACKING,DEFROSTER |
| 9 | 74140-59J00-000 | PACKING,FACE |
| 10 | 03112-04163-000 | Screw |
| 10 | 03111-0416A-000 | SCREW |
| 11 | 74132-54G00-000 | PACKING,CASE |
| 12 | 74131-54G00-000 | BRACKET |
| 13 | 74171-54G00-000 | DOOR ASSY,AIR MIXTURE |
| 14 | 74172-59J00-000 | DOOR,DEFROSTER |
| 15 | 74173-54G00-000 | DOOR ASSY,FACE |
| 16 | 74174-59J00-000 | DOOR,SIDE FACE |
| 17 | 74181-54G00-000 | LEVER,FACE |
| 18 | 74183-59J00-000 | LEVER,FACE SUB |
| 19 | 74182-59J00-000 | LEVER,DFR |
| 20 | 74184-59J00-000 | LEVER,DFR SUB |
| 21 | 74185-59J00-000 | PLATE,MODE MAIN |
| 22 | 74183-82005-000 | SCREW,LINK |
| 23 | 74187-81A00-000 | CLAMP |
| 24 | 74191-54G00-000 | LEVER,AIR MXT |
| 25 | 74186-59J00-000 | LEVER,SIDE FACE |
| 26 | 95410-54G00-000 | EVAPORATOR ASSY |
| 27 | 95895-50G00-000 | O-RING,D:2.4 ID:10.8 |
| 28 | 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
| 29 | 95431-65D10-000 | VALVE,EXPANSION |
| 30 | 95452-54G00-000 | CLAMP,THERMISTOR |
| 31 | 95452-54G10-000 | CLAMP,TERMISTER |
| 32 | 95541-54G10-000 | THERMISTOR |
| 33 | 95541-54G01-000 | THERMISTOR |
| 34 | 74137-54G00-000 | PACKING |
| 35 | 74136-54G00-000 | PACKING,AIR CONDITIONER PIPE |
| 36 | 74135-54G00-000 | TUBE,AIR CONDITIONER |
| 38 | 95891-50G00-000 | O-RING,D:1.8 ID:6.7 |
| 39 | 74134-54G00-000 | BOLT,EXPANSION VALVE |
| 40 | 74138-54G00-000 | Bolt |
| 41 | 74133-54G00-000 | PACKING,EVAPORATOR |
| 42 | 95461-54G00-000 | COVER,EVAPORATOR |
| 43 | 95462-54G00-000 | PACKING,EVAPORATOR LOWER |
| 44 | 09148-04024-000 | NUT |
| 45 | 74115-65D00-000 | Bolt |
| 46 | 74119-78F00-000 | WASHER,RBR |
| 47 | 95428-54G00-000 | BOARD,AIR RESISTOR |
| 48 | 74118-54G00-000 | PLUG |
| 49 | 95651-54G10-000 | ACTUATOR,TEMP |
| 50 | 95653-59J00-000 | ACTUATOR,MODE |
| 51 | 95626-54G01-000 | DRIVER,BLOWER FAN |
| 53 | 74133-59J00-000 | CLAMP |
| 54 | 74114-59J00-000 | DUCT,FOOT DRVR |
| 55 | 09409-07308-5PK | CLIP(BLACK) |
| 56 | 74812-77E00-000 | GROMMET,HTR |
| 57 | 95481-54G00-000 | HOSE,DRAIN |
| 58 | 08361-2506A-000 | NUT |
| 59 | 09159-06081-000 | NUT |
| 60 | 39510-59J11-000 | PANEL UNIT,A/C |
| 60 | 39510-59J01-000 | PANEL UNIT,A/C |
| 60 | 39510-59J51-000 | Panel unit, auto air con |
| 60 | 39510-59J52-000 | PANEL UNIT,A/C |
| 61 | 03541-0512A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03111-0416A-000 | SCREW | Heater control (RHD) |
| 03112-04163-000 | Screw | Heater control (RHD) |
| 03541-0512A-000 | SCREW | Heater control (RHD) |
| 08361-2506A-000 | NUT | Heater control (RHD) |
| 09148-04024-000 | NUT | Heater control (RHD) |
| 09159-06081-000 | NUT | Heater control (RHD) |
| 09409-07308-5PK | CLIP(BLACK) | Heater control (RHD) |
| 39510-59J01-000 | PANEL UNIT,A/C | Heater control (RHD) |
| 39510-59J11-000 | PANEL UNIT,A/C | Heater control (RHD) |
| 39510-59J51-000 | Panel unit, auto air con | Heater control (RHD) |
| 39510-59J52-000 | PANEL UNIT,A/C | Heater control (RHD) |
| 74100-59J01-000 | HEATER UNIT | Heater control (RHD) |
| 74100-59J81-000 | HEATER UNIT | Heater control (RHD) |
| 74100-59JA1-000 | HEATER UNIT | Heater control (RHD) |
| 74111-59J00-000 | CASE,HTR DRIVER SIDE | Heater control (RHD) |
| 74111-59J80-000 | CASE,HTR DRIVER SIDE | Heater control (RHD) |
| 74112-59J00-000 | CASE,HTR ASSISTANT SIDE | Heater control (RHD) |
| 74113-54G00-000 | DUCT,AIR JOINT | Heater control (RHD) |
| 74114-59J00-000 | DUCT,FOOT DRVR | Heater control (RHD) |
| 74115-59J00-000 | DUCT,AIR,L | Heater control (RHD) |
| 74115-65D00-000 | Bolt | Heater control (RHD) |
| 74116-59J00-000 | DUCT,AIR,R | Heater control (RHD) |
| 74118-54G00-000 | PLUG | Heater control (RHD) |
| 74119-78F00-000 | WASHER,RBR | Heater control (RHD) |
| 74120-54G01-000 | CORE,HEATER | Heater control (RHD) |
| 74131-54G00-000 | BRACKET | Heater control (RHD) |
| 74132-54G00-000 | PACKING,CASE | Heater control (RHD) |
| 74133-54G00-000 | PACKING,EVAPORATOR | Heater control (RHD) |
| 74133-59J00-000 | CLAMP | Heater control (RHD) |
| 74134-54G00-000 | BOLT,EXPANSION VALVE | Heater control (RHD) |
| 74135-54G00-000 | TUBE,AIR CONDITIONER | Heater control (RHD) |
| 74136-54G00-000 | PACKING,AIR CONDITIONER PIPE | Heater control (RHD) |
| 74137-54G00-000 | PACKING | Heater control (RHD) |
| 74138-54G00-000 | Bolt | Heater control (RHD) |
| 74139-59J00-000 | PACKING,DEFROSTER | Heater control (RHD) |
| 74140-59J00-000 | PACKING,FACE | Heater control (RHD) |
| 74171-54G00-000 | DOOR ASSY,AIR MIXTURE | Heater control (RHD) |
| 74172-59J00-000 | DOOR,DEFROSTER | Heater control (RHD) |
| 74173-54G00-000 | DOOR ASSY,FACE | Heater control (RHD) |
| 74174-59J00-000 | DOOR,SIDE FACE | Heater control (RHD) |
| 74181-54G00-000 | LEVER,FACE | Heater control (RHD) |
| 74182-59J00-000 | LEVER,DFR | Heater control (RHD) |
| 74183-59J00-000 | LEVER,FACE SUB | Heater control (RHD) |
| 74183-82005-000 | SCREW,LINK | Heater control (RHD) |
| 74184-59J00-000 | LEVER,DFR SUB | Heater control (RHD) |
| 74185-59J00-000 | PLATE,MODE MAIN | Heater control (RHD) |
| 74186-59J00-000 | LEVER,SIDE FACE | Heater control (RHD) |
| 74187-81A00-000 | CLAMP | Heater control (RHD) |
| 74191-54G00-000 | LEVER,AIR MXT | Heater control (RHD) |
| 74812-77E00-000 | GROMMET,HTR | Heater control (RHD) |
| 95410-54G00-000 | EVAPORATOR ASSY | Heater control (RHD) |
| 95428-54G00-000 | BOARD,AIR RESISTOR | Heater control (RHD) |
| 95431-65D10-000 | VALVE,EXPANSION | Heater control (RHD) |
| 95452-54G00-000 | CLAMP,THERMISTOR | Heater control (RHD) |
| 95452-54G10-000 | CLAMP,TERMISTER | Heater control (RHD) |
| 95461-54G00-000 | COVER,EVAPORATOR | Heater control (RHD) |
| 95462-54G00-000 | PACKING,EVAPORATOR LOWER | Heater control (RHD) |
| 95481-54G00-000 | HOSE,DRAIN | Heater control (RHD) |
| 95541-54G01-000 | THERMISTOR | Heater control (RHD) |
| 95541-54G10-000 | THERMISTOR | Heater control (RHD) |
| 95626-54G01-000 | DRIVER,BLOWER FAN | Heater control (RHD) |
| 95651-54G10-000 | ACTUATOR,TEMP | Heater control (RHD) |
| 95653-59J00-000 | ACTUATOR,MODE | Heater control (RHD) |
| 95891-50G00-000 | O-RING,D:1.8 ID:6.7 | Heater control (RHD) |
| 95895-50G00-000 | O-RING,D:2.4 ID:10.8 | Heater control (RHD) |
| 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) | Heater control (RHD) |
