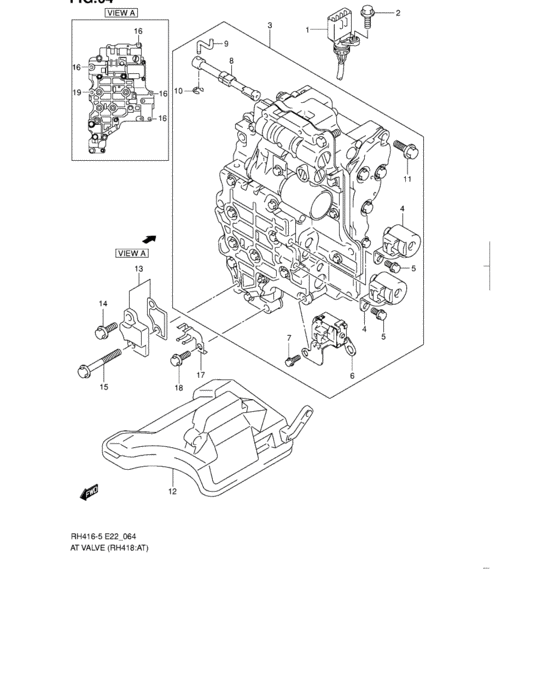

At valve (RH418:AT)
19
| # | OEM | Part name |
|---|
| 1 |
24892-65G30-000 |
HARNESS,SOLENOID WIRE |
| 2 |
29999-57B00-000 |
Bolt |
| 3 |
26500-54G91-000 |
Valve assy, transmission |
| 3 |
26500-54G92-000 |
Valve assy,transmission |
| 4 |
26426-60G11-000 |
SOLENOID,T/M CONTROL |
| 5 |
29983-57B00-000 |
BOLT,SOLENOID NO.2 |
| 6 |
26427-60G10-000 |
SOLENOID,DUTY CONTROL |
| 7 |
26428-60G10-000 |
BOLT,SOLENOID |
| 8 |
26591-60G10-000 |
VALVE,MANUAL |
| 9 |
26592-60G10-000 |
ROD,MANUAL VALVE |
| 10 |
26593-60G10-000 |
E-RING,MANUAL VALVE |
| 11 |
26579-60G10-000 |
BOLT,RR VALVE BODY COVER |
| 12 |
26445-60G10-000 |
STRAINER,OIL |
| 13 |
26441-60G10-000 |
COVER,SUCTION |
| 14 |
26443-60G10-000 |
Bolt |
| 15 |
26446-60G10-000 |
BOLT,VALVE BODY NO.3 |
| 17 |
26448-65G10-000 |
CLAMP,ATF TEMP WIRING |
| 18 |
26449-65G10-000 |
Bolt |
| 19 |
26444-60G10-000 |
BOLT,VALVE BODY NO.2 |
| OEM |
Part name |
Category |
| 24892-65G30-000 |
HARNESS,SOLENOID WIRE |
At valve (RH418:AT) |
| 26426-60G11-000 |
SOLENOID,T/M CONTROL |
At valve (RH418:AT) |
| 26427-60G10-000 |
SOLENOID,DUTY CONTROL |
At valve (RH418:AT) |
| 26428-60G10-000 |
BOLT,SOLENOID |
At valve (RH418:AT) |
| 26441-60G10-000 |
COVER,SUCTION |
At valve (RH418:AT) |
| 26443-60G10-000 |
Bolt |
At valve (RH418:AT) |
| 26444-60G10-000 |
BOLT,VALVE BODY NO.2 |
At valve (RH418:AT) |
| 26445-60G10-000 |
STRAINER,OIL |
At valve (RH418:AT) |
| 26446-60G10-000 |
BOLT,VALVE BODY NO.3 |
At valve (RH418:AT) |
| 26448-65G10-000 |
CLAMP,ATF TEMP WIRING |
At valve (RH418:AT) |
| 26449-65G10-000 |
Bolt |
At valve (RH418:AT) |
| 26500-54G91-000 |
Valve assy, transmission |
At valve (RH418:AT) |
| 26500-54G92-000 |
Valve assy,transmission |
At valve (RH418:AT) |
| 26579-60G10-000 |
BOLT,RR VALVE BODY COVER |
At valve (RH418:AT) |
| 26591-60G10-000 |
VALVE,MANUAL |
At valve (RH418:AT) |
| 26592-60G10-000 |
ROD,MANUAL VALVE |
At valve (RH418:AT) |
| 26593-60G10-000 |
E-RING,MANUAL VALVE |
At valve (RH418:AT) |
| 29983-57B00-000 |
BOLT,SOLENOID NO.2 |
At valve (RH418:AT) |
| 29999-57B00-000 |
Bolt |
At valve (RH418:AT) |
