RH418

Suzuki LIANA · 3,879 parts · 200 categories
RH418 ×

← Back to categories

3,879 items

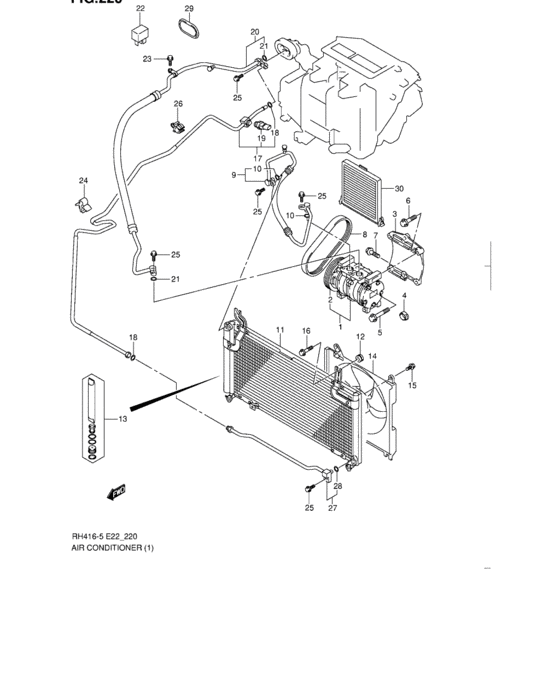

Air conditioner (LHD) 44
#OEMPart name
0 95000-54G10-000 AIR CONDITIONER SET
1 95200-65DA0-000 COMPRESSOR ASSY
1 95200-65DA1-000 COMPRESSOR ASSY
2 95210-65DA0-000 CLUTCH ASSY,MAGNET
3 95111-54G01-000 BRACKET,COMPRESSOR
4 09407-14403-000 CLAMP(L:125) - Clamp, spark plug cap
5 01550-08753-000 Bolt
5 01550-0875B-000 Bolt
5 01550-0875A-000 Bolt
6 01550-08303-000 Bolt
6 01550-0830B-000 Bolt
6 01550-0830A-000 Bolt - Bolt, mount oil seal cover
7 01550-08603-000 Bolt, crankcase - Bolt, sec case
7 01550-0860B-000 Bolt - Bolt, sec case
7 01550-0860A-000 Bolt
8 17521-85300-000 V-BELT,4PK1010
9 95720-54G11-000 HOSE,DISCHARGE
10 95895-50G00-000 O-RING,D:2.4 ID:10.8
11 95310-54G12-000 CONDENSER
11 95310-54G30-000 Condenser
11 95310-54G31-000 CONDENSER
12 95851-60B00-000 BUSH,COND
12 95851-60B10-000 BUSH,COND
13 95339-78F01-000 DRYER SET,RECEIVER
13 95339-65D00-000 DRYER CONDENSER
13 95339-58J10-000 DRYER KIT
14 95560-54G02-000 FAN ASSY,COND
15 09122-86003-000 SCREW(6X16) - Bolt (6x16)
16 09116-06146-000 BOLT(6X25) - Bolt (6x20)
16 09116-06150-000 BOLT(6X25) - Bolt, air cleaner chamber
17 95731-54G30-000 PIPE,LIQUID
18 95891-50G00-000 O-RING,D:1.8 ID:6.7
19 95526-78F00-000 SWITCH,TRIPLE PRESSURE
20 95710-54G31-000 HOSE,SUCTION
21 95896-50G00-000 O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4)
22 38860-76F01-000 RELAY ASSY - Relay, starting motor
24 09403-08406-000 CLAMP
25 01550-06203-000 Bolt
25 01550-0620B-000 Bolt - Bolt, inspection cap
26 09403-08321-000 CLAMP
27 95732-54G10-000 Pipe, liquid
27 95732-54G11-000 PIPE,LIQUID
29 95831-60G00-000 GROMMET,A/C HOLE
30 95861-54G00-000 FILTER
