RH418

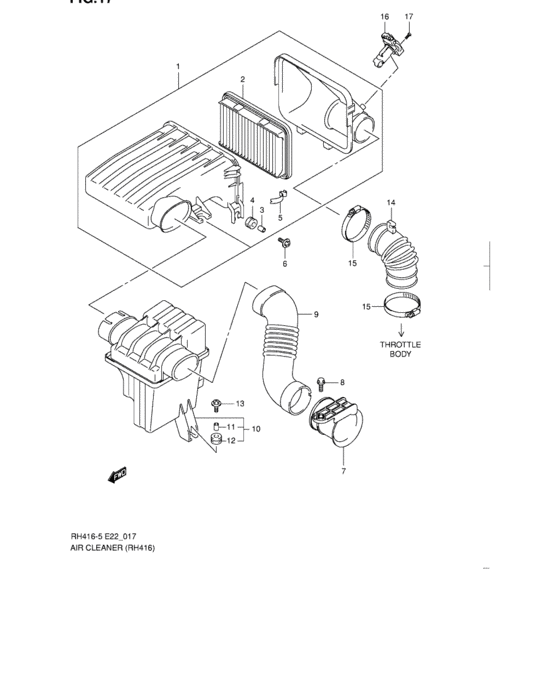

Air cleaner (RH416) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 13700-63J00-000 | CLEANER ASSY,AIR |
| 2 | 13780-63J00-000 | ELEMENT,AIR CLEANER |
| 3 | 13812-72G40-000 | COLLAR |
| 4 | 13813-83000-000 | GROMMET |
| 4 | 13813-61AT0-000 | GROMMET SET,AIR CLEANER |
| 5 | 13755-65D00-000 | CLIP,AIR CLEANER |
| 6 | 01550-0625A-000 | Bolt |
| 7 | 13765-55GA0-000 | PIPE,AIR CLNR SUCTION |
| 8 | 02112-06123-000 | Screw, breather cover |
| 8 | 02112-0612B-000 | SCREW - Screw, oil guide plate |
| 8 | 02112-0612A-000 | SCREW |
| 9 | 13766-55GA0-000 | HOSE,AIR SUCTION |
| 10 | 13870-63J00-000 | PIPE,AIR INTAKE |
| 13 | 01550-0620A-000 | Bolt |
| 14 | 13881-63J00-000 | HOSE,AIR CLEANER OUTLET |
| 15 | 09402-70503-000 | CLAMP - Clamp,tank |
| 16 | 13800-63J00-000 | SENSOR ASSY,MAIN AIR FLOW |
| 17 | 02112-04103-000 | Screw 4x10 |
| 17 | 02112-0410A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01550-0620A-000 | Bolt | Air cleaner (RH416) |
| 01550-0625A-000 | Bolt | Air cleaner (RH416) |
| 02112-04103-000 | Screw 4x10 | Air cleaner (RH416) |
| 02112-0410A-000 | SCREW | Air cleaner (RH416) |
| 02112-06123-000 | Screw, breather cover | Air cleaner (RH416) |
| 02112-0612A-000 | SCREW | Air cleaner (RH416) |
| 02112-0612B-000 | SCREW - Screw, oil guide plate | Air cleaner (RH416) |
| 09402-70503-000 | CLAMP - Clamp,tank | Air cleaner (RH416) |
| 13700-63J00-000 | CLEANER ASSY,AIR | Air cleaner (RH416) |
| 13755-65D00-000 | CLIP,AIR CLEANER | Air cleaner (RH416) |
| 13765-55GA0-000 | PIPE,AIR CLNR SUCTION | Air cleaner (RH416) |
| 13766-55GA0-000 | HOSE,AIR SUCTION | Air cleaner (RH416) |
| 13780-63J00-000 | ELEMENT,AIR CLEANER | Air cleaner (RH416) |
| 13800-63J00-000 | SENSOR ASSY,MAIN AIR FLOW | Air cleaner (RH416) |
| 13812-72G40-000 | COLLAR | Air cleaner (RH416) |
| 13813-61AT0-000 | GROMMET SET,AIR CLEANER | Air cleaner (RH416) |
| 13813-83000-000 | GROMMET | Air cleaner (RH416) |
| 13870-63J00-000 | PIPE,AIR INTAKE | Air cleaner (RH416) |
| 13881-63J00-000 | HOSE,AIR CLEANER OUTLET | Air cleaner (RH416) |
