| 01550-06123-000 |
Bolt |

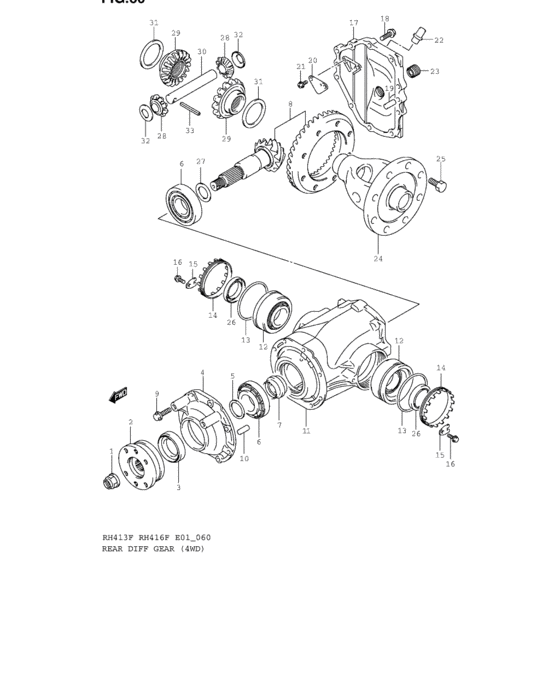

Rear diff gear (4WD) |
| 01550-0612A-000 |
Bolt |
Rear diff gear (4WD) |
| 01550-0612B-000 |
Bolt - Bolt, clamp |
Rear diff gear (4WD) |
| 01550-08303-000 |
Bolt |
Rear diff gear (4WD) |
| 01550-0830A-000 |
Bolt - Bolt, mount oil seal cover |
Rear diff gear (4WD) |
| 01550-0830B-000 |
Bolt |
Rear diff gear (4WD) |
| 02162-06123-000 |
Bolt (6x12) |
Rear diff gear (4WD) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Rear diff gear (4WD) |
| 02162-0612B-000 |
SCREW - Bolt |
Rear diff gear (4WD) |
| 04211-09169-000 |
PIN |
Rear diff gear (4WD) |
| 09160-25066-000 |
WASHER(25X38X2.5) |
Rear diff gear (4WD) |
| 09160-35002-000 |
WASHER(35X46X1) |
Rear diff gear (4WD) |
| 09160-35003-000 |
WASHER(35X46X1.1) |
Rear diff gear (4WD) |
| 09160-35004-000 |
WASHER(35X46X1.2) |
Rear diff gear (4WD) |
| 09160-35006-000 |
WASHER(35X46X0.9) |
Rear diff gear (4WD) |
| 09160-35008-000 |
WASHER(35X46X0.95) - Washer (35x46x0.95) |
Rear diff gear (4WD) |
| 09160-35009-000 |
WASHER(35X46X1.05) |
Rear diff gear (4WD) |
| 09160-35010-000 |
WASHER(35X46X1.15) |
Rear diff gear (4WD) |
| 09164-15003-000 |
WASHER |
Rear diff gear (4WD) |
| 09181-30001-000 |
SHIM(30X38X0.3) |
Rear diff gear (4WD) |
| 09205-05007-000 |
PIN,SPRING(5X36) |
Rear diff gear (4WD) |
| 09246-16010-000 |
PLUG |
Rear diff gear (4WD) |
| 09246-16021-000 |
Plug,t/m Oil Drain |
Rear diff gear (4WD) |
| 09265-30018-000 |
BEARING(30X72X20.75) |
Rear diff gear (4WD) |
| 09280-78001-000 |
O RING(D:3,ID:78) - O ring (d:3.5,id:73.5) |
Rear diff gear (4WD) |
| 27110-63202-000 |
FLANGE,UNIVERSAL JOINT |
Rear diff gear (4WD) |
| 27300-62820-000 |
BEVEL PINION&GEAR SET |
Rear diff gear (4WD) |
| 27331-78FJ1-000 |
PINION,DIFFERENTIAL |
Rear diff gear (4WD) |
| 27331-78G11-000 |
ピニオン,ディファレンシャル |
Rear diff gear (4WD) |
| 27341-76G12-000 |
GEAR,DIFF |
Rear diff gear (4WD) |
| 27341-82000-000 |
GEAR DIFF |
Rear diff gear (4WD) |
| 27351-62B00-000 |
SHAFT,DIFF SIDE PINION |
Rear diff gear (4WD) |
| 27371-80F00-000 |
OIL SEAL,DIFF INPUT |
Rear diff gear (4WD) |
| 27375-80F00-000 |
NUT,DRIVE PINION |
Rear diff gear (4WD) |
| 27411-74C11-000 |
CASE,RR DIFF |
Rear diff gear (4WD) |
| 27415-74C10-000 |
BOLT,RR DRIVE BEVEL GEAR |
Rear diff gear (4WD) |
| 27431-73B20-000 |
OIL SEAL,DIFF SIDE - Seal, defferential side oil |
Rear diff gear (4WD) |
| 27431-73H30-000 |
SEAL,OIL |
Rear diff gear (4WD) |
| 27451-65G00-000 |
CARRIER,RR DIFF |
Rear diff gear (4WD) |
| 27453-71C00-000 |
RETAINER,DIFF SIDE BRG |
Rear diff gear (4WD) |
| 27454-71C00-000 |
Cover,rr diff breather |
Rear diff gear (4WD) |
| 27455-71C20-000 |
STOPPER |
Rear diff gear (4WD) |
| 27461-60G00-000 |
COVER,DIFF |
Rear diff gear (4WD) |
| 27490-71C00-000 |
BEARING ASSY,RR DIFF SIDE |
Rear diff gear (4WD) |
| 27621-60G00-000 |
CASE,DIFF CARRIER,FR |
Rear diff gear (4WD) |
| 29171-56F01-000 |
SPACER,T/F INPUT BEVEL |
Rear diff gear (4WD) |
| 29515-80050-000 |
PLUG,T/F BREATHER |
Rear diff gear (4WD) |
| 29521-74C00-000 |
SHIM,BEVEL PINION T:0.60 |
Rear diff gear (4WD) |
| 29521-74C20-000 |
SHIM,T/F PINION BRG T:0.66 |
Rear diff gear (4WD) |
| 29521-74C40-000 |
SHIM,BEVEL PINION T:0.72 |
Rear diff gear (4WD) |
| 29521-74C60-000 |
SHIM,T/F PINION BRG T:0.78 |
Rear diff gear (4WD) |
| 29521-74C80-000 |
SHIM,BEVEL PINION T:0.84 |
Rear diff gear (4WD) |
