Search › Model › RH416F

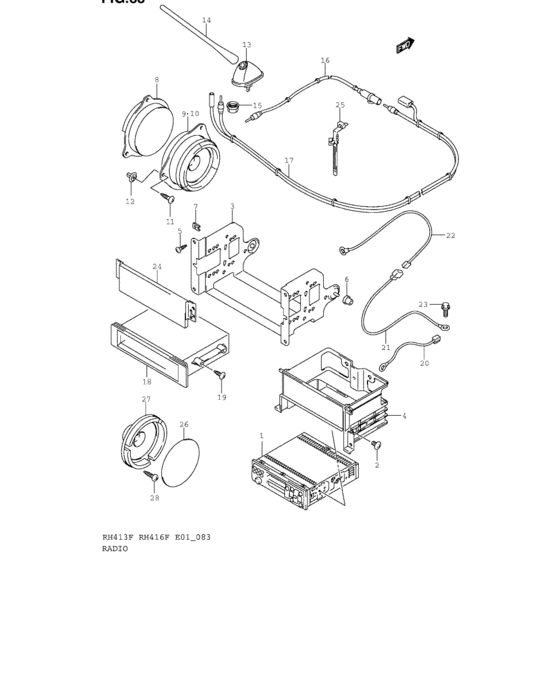

RH416F
Radio (RADIO) 47
| # | OEM | Part name |
|---|---|---|
| 1 | 39101-65D21-000 | Tuner assy |
| 1 | 39101-65D10-000 | TUNER ASSY,AM/FM CASSETTE 10KH - Tuner assy (am/fm,cassette,10khz) |
| 1 | 39101-54G10-000 | Tuner assy |
| 1 | 39101-54G20-000 | Tuner assy |
| 2 | 02142-05083-000 | Screw |
| 2 | 02142-0508A-000 | SCREW - Screw, cap |
| 3 | 39321-54G01-000 | Bracket, tuner |
| 3 | 39321-54G03-000 | BRACKET,TUNER |
| 4 | 39321-54G10-000 | BRACKET,TUNER |
| 5 | 03142-05163-000 | Screw |
| 5 | 03141-0516A-000 | SCREW |
| 6 | 34955-54G00-000 | ブッシュ,ラジオブラケット |
| 6 | 34955-54G10-000 | BUSH,RADIO BRKT |
| 7 | 09148-05045-000 | NUT |
| 8 | 39354-54G00-000 | BRACKET ASSY,SPEAKER |
| 9 | 39104-54G10-000 | SPEAKER ASSY,DOOR,R |
| 10 | 39104-54G00-000 | SPEAKER ASSY,DOOR,L |
| 11 | 03242-06163-000 | Screw - Screw, tilt handle |
| 11 | 03241-0616C-000 | SCREW |
| 12 | 09148-05035-000 | NUT |
| 13 | 39253-54G40-000 | Base, antenna |
| 13 | 39253-54G41-000 | BASE,ANTENNA |
| 14 | 39251-54G10-000 | ROD,ANTENNA |
| 15 | 39269-54G01-000 | ナット,アンテナ |
| 15 | 39269-78H00-000 | NUT,ANTENNA |
| 16 | 39270-54G00-000 | FEEDER,ANT I/P |
| 17 | 39271-54G00-000 | FEEDER,ANT ROOF |
| 18 | 39182-70E50-000 | POCKETTUNER |
| 18 | 39182-70E51-000 | POCKET,TUNER |
| 19 | 03242-05123-000 | Screw, inner cover |
| 19 | 03241-0512A-000 | SCREW |
| 20 | 39191-50F00-000 | WIRE,TUNER GND |
| 21 | 39312-60G00-000 | WIRE,NOISE SUPPR |
| 22 | 39312-60B20-000 | WIRE,NOISE SUPPR NO.1 |
| 23 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 23 | 09115-06005-000 | BOLT(6X16) |
| 24 | 39161-70E01-000 | COVER,RADIO HOLE |
| 25 | 09407-12404-000 | CLAMP(L:140) |
| 26 | 39239-54G00-000 | COVER,SPEAKER HOLE,RR |
| 27 | 39102-54G10-000 | スピーカアッシ,リヤ |
| 27 | 39102-54G31-000 | SPEAKER ASSY,RR |
| 28 | 03111-05163-000 | Screw - Screw, sensor |
| 28 | 03111-0516A-000 | SCREW |
| 29 | 39103-65D10-000 | MANUAL,OWNER'S |
| 29 | 39103-65D20-000 | MANUAL,OWNER'S |
| 29 | 39103-69G20-000 | Owner's manual |
| 29 | 39103-69G10-000 | MANUAL,OWNER'S |
| OEM | Part name | Category |
|---|---|---|
| 02142-05083-000 | Screw | Radio (RADIO) |
| 02142-0508A-000 | SCREW - Screw, cap | Radio (RADIO) |
| 03111-05163-000 | Screw - Screw, sensor | Radio (RADIO) |
| 03111-0516A-000 | SCREW | Radio (RADIO) |
| 03141-0516A-000 | SCREW | Radio (RADIO) |
| 03142-05163-000 | Screw | Radio (RADIO) |
| 03241-0512A-000 | SCREW | Radio (RADIO) |
| 03241-0616C-000 | SCREW | Radio (RADIO) |
| 03242-05123-000 | Screw, inner cover | Radio (RADIO) |
| 03242-06163-000 | Screw - Screw, tilt handle | Radio (RADIO) |
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Radio (RADIO) |
| 09115-06005-000 | BOLT(6X16) | Radio (RADIO) |
| 09148-05035-000 | NUT | Radio (RADIO) |
| 09148-05045-000 | NUT | Radio (RADIO) |
| 09407-12404-000 | CLAMP(L:140) | Radio (RADIO) |
| 34955-54G00-000 | ブッシュ,ラジオブラケット | Radio (RADIO) |
| 34955-54G10-000 | BUSH,RADIO BRKT | Radio (RADIO) |
| 39101-54G10-000 | Tuner assy | Radio (RADIO) |
| 39101-54G20-000 | Tuner assy | Radio (RADIO) |
| 39101-65D10-000 | TUNER ASSY,AM/FM CASSETTE 10KH - Tuner assy (am/fm,cassette,10khz) | Radio (RADIO) |
| 39101-65D21-000 | Tuner assy | Radio (RADIO) |
| 39102-54G10-000 | スピーカアッシ,リヤ | Radio (RADIO) |
| 39102-54G31-000 | SPEAKER ASSY,RR | Radio (RADIO) |
| 39103-65D10-000 | MANUAL,OWNER'S | Radio (RADIO) |
| 39103-65D20-000 | MANUAL,OWNER'S | Radio (RADIO) |
| 39103-69G10-000 | MANUAL,OWNER'S | Radio (RADIO) |
| 39103-69G20-000 | Owner's manual | Radio (RADIO) |
| 39104-54G00-000 | SPEAKER ASSY,DOOR,L | Radio (RADIO) |
| 39104-54G10-000 | SPEAKER ASSY,DOOR,R | Radio (RADIO) |
| 39161-70E01-000 | COVER,RADIO HOLE | Radio (RADIO) |
| 39182-70E50-000 | POCKETTUNER | Radio (RADIO) |
| 39182-70E51-000 | POCKET,TUNER | Radio (RADIO) |
| 39191-50F00-000 | WIRE,TUNER GND | Radio (RADIO) |
| 39239-54G00-000 | COVER,SPEAKER HOLE,RR | Radio (RADIO) |
| 39251-54G10-000 | ROD,ANTENNA | Radio (RADIO) |
| 39253-54G40-000 | Base, antenna | Radio (RADIO) |
| 39253-54G41-000 | BASE,ANTENNA | Radio (RADIO) |
| 39269-54G01-000 | ナット,アンテナ | Radio (RADIO) |
| 39269-78H00-000 | NUT,ANTENNA | Radio (RADIO) |
| 39270-54G00-000 | FEEDER,ANT I/P | Radio (RADIO) |
| 39271-54G00-000 | FEEDER,ANT ROOF | Radio (RADIO) |
| 39312-60B20-000 | WIRE,NOISE SUPPR NO.1 | Radio (RADIO) |
| 39312-60G00-000 | WIRE,NOISE SUPPR | Radio (RADIO) |
| 39321-54G01-000 | Bracket, tuner | Radio (RADIO) |
| 39321-54G03-000 | BRACKET,TUNER | Radio (RADIO) |
| 39321-54G10-000 | BRACKET,TUNER | Radio (RADIO) |
| 39354-54G00-000 | BRACKET ASSY,SPEAKER | Radio (RADIO) |
