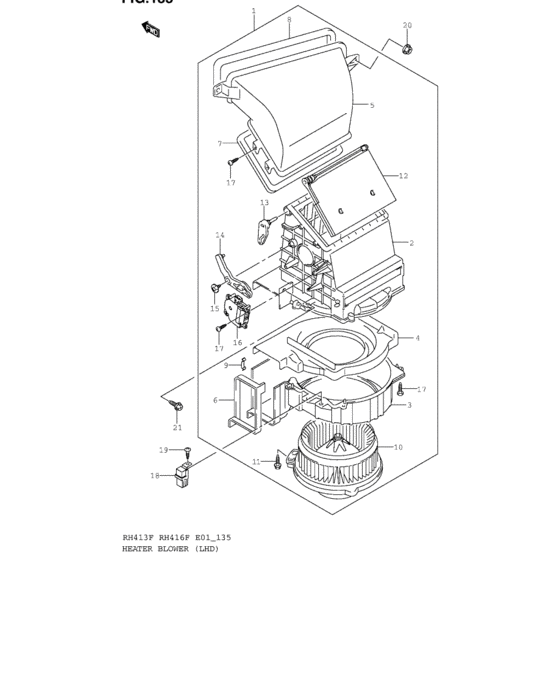

Heater blower (LHD)
28
| # | OEM | Part name |
|---|
| 1 |
74200-54G10-000 |
Blower unit |
| 1 |
74200-54G30-000 |
BLOWER UNIT |
| 2 |
74211-54G30-000 |
CASE,UPPER |
| 3 |
74212-54G10-000 |
CASE,LOWER |
| 4 |
74213-54G10-000 |
PLATE |
| 5 |
74214-54G10-000 |
Case, inlet duct |
| 5 |
74214-59J10-000 |
CASE,INLET DUCT |
| 6 |
74215-54G00-000 |
PACKING,HEATER JOINT |
| 7 |
74216-54G00-000 |
PACKING,BLOWER DUCT |
| 8 |
74217-54G00-000 |
PACKING |
| 9 |
74133-82000-000 |
CLAMP,CASE |
| 10 |
74250-54G10-000 |
MOTOR ASSY,FAN |
| 11 |
94135-82000-000 |
SCREW |
| 12 |
74271-54G00-000 |
DOOR ASSY |
| 13 |
74281-54G10-000 |
LEVER,LINK |
| 14 |
74282-54G10-000 |
LEVER,DR |
| 15 |
74183-82005-000 |
SCREW,LINK |
| 16 |
95652-54G10-000 |
Actuator, frash air |
| 16 |
74211-54G31-000 |
CASE,UPPER |
| 16 |
95652-54G11-000 |
ACTUATOR,FRESH AIR |
| 17 |
03112-04163-000 |
Screw |
| 17 |
03111-0416A-000 |
SCREW |
| 18 |
74291-54G00-000 |
RELAY,BLOWER MOTOR |
| 19 |
03541-05103-000 |
Screw5 x 10 |
| 19 |
03541-0510B-000 |
SCREW |
| 19 |
03541-0510A-000 |
SCREW - Screw, rr cover |
| 20 |
09159-06081-000 |
NUT |
| 21 |
09136-06140-000 |
SCREW(6X25) |
| OEM |
Part name |
Category |
| 03111-0416A-000 |
SCREW |
Heater blower (LHD) |
| 03112-04163-000 |
Screw |
Heater blower (LHD) |
| 03541-05103-000 |
Screw5 x 10 |
Heater blower (LHD) |
| 03541-0510A-000 |
SCREW - Screw, rr cover |
Heater blower (LHD) |
| 03541-0510B-000 |
SCREW |
Heater blower (LHD) |
| 09136-06140-000 |
SCREW(6X25) |
Heater blower (LHD) |
| 09159-06081-000 |
NUT |
Heater blower (LHD) |
| 74133-82000-000 |
CLAMP,CASE |
Heater blower (LHD) |
| 74183-82005-000 |
SCREW,LINK |
Heater blower (LHD) |
| 74200-54G10-000 |
Blower unit |
Heater blower (LHD) |
| 74200-54G30-000 |
BLOWER UNIT |
Heater blower (LHD) |
| 74211-54G30-000 |
CASE,UPPER |
Heater blower (LHD) |
| 74211-54G31-000 |
CASE,UPPER |
Heater blower (LHD) |
| 74212-54G10-000 |
CASE,LOWER |
Heater blower (LHD) |
| 74213-54G10-000 |
PLATE |
Heater blower (LHD) |
| 74214-54G10-000 |
Case, inlet duct |
Heater blower (LHD) |
| 74214-59J10-000 |
CASE,INLET DUCT |
Heater blower (LHD) |
| 74215-54G00-000 |
PACKING,HEATER JOINT |
Heater blower (LHD) |
| 74216-54G00-000 |
PACKING,BLOWER DUCT |
Heater blower (LHD) |
| 74217-54G00-000 |
PACKING |
Heater blower (LHD) |
| 74250-54G10-000 |
MOTOR ASSY,FAN |
Heater blower (LHD) |
| 74271-54G00-000 |
DOOR ASSY |
Heater blower (LHD) |
| 74281-54G10-000 |
LEVER,LINK |
Heater blower (LHD) |
| 74282-54G10-000 |
LEVER,DR |
Heater blower (LHD) |
| 74291-54G00-000 |
RELAY,BLOWER MOTOR |
Heater blower (LHD) |
| 94135-82000-000 |
SCREW |
Heater blower (LHD) |
| 95652-54G10-000 |
Actuator, frash air |
Heater blower (LHD) |
| 95652-54G11-000 |
ACTUATOR,FRESH AIR |
Heater blower (LHD) |
