Search › Model › RH414D
RH414D

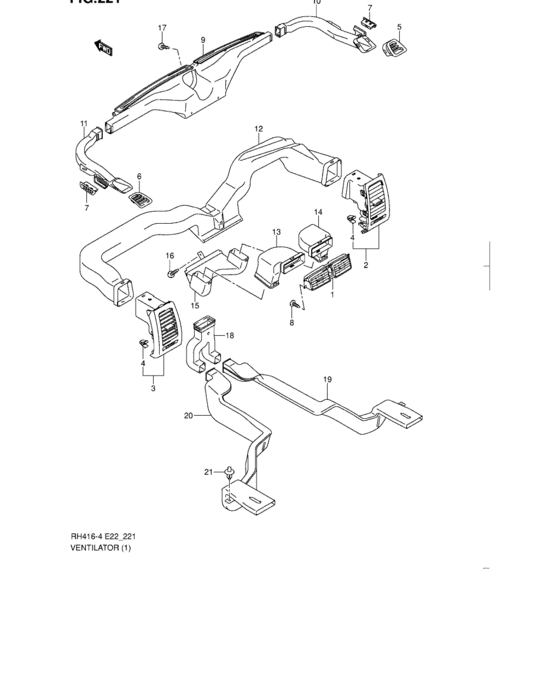

Ventilator 24
| # | OEM | Part name |
|---|---|---|
| 1 | 73610-59J00-C48 | LOUVER,CTR VENT |
| 2 | 73630-59J00-MA1 | LOUVER,SIDE VENT,R |
| 3 | 73640-59J00-MA1 | LOUVER,SIDE VENT,L |
| 4 | 09409-08332-000 | CLIP |
| 5 | 73651-59J00-P4Z | NOZZLE,SIDE DEMISTER,R |
| 6 | 73652-59J00-P4Z | NOZZLE,SIDE DEMISTER,L |
| 7 | 73653-59J00-P4Z | NOZZLE,SIDE PILLAR DEMISTER,R |
| 8 | 03541-0412A-000 | SCREW - Screw, speedometer |
| 9 | 73660-59J00-000 | NOZZLE,DEFROSTER |
| 10 | 73681-59J00-000 | DUCT,DEMISTER,R |
| 11 | 73691-59J00-000 | DUCT,DEMISTER,L |
| 12 | 74621-59J30-000 | DUCT,VENT |
| 12 | 74621-59J00-000 | DUCT,VENT |
| 13 | 74622-59J00-000 | DUCT,VENT CTR,R |
| 14 | 74623-59J00-000 | DUCT,VENT CTR,L |
| 15 | 74624-59J10-000 | DUCT,VENT CTR |
| 15 | 74624-59J00-000 | DUCT,VENT CTR |
| 16 | 03141-0516A-000 | SCREW |
| 17 | 03541-0516A-000 | SCREW |
| 18 | 74651-54G10-000 | DUCT,RR CTR |
| 18 | 74651-54G00-000 | DUCT,RR CTR |
| 19 | 74652-59J00-000 | DUCT,RR,R |
| 20 | 74653-59J00-000 | DUCT,RR,L |
| 21 | 09409-06318-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 03141-0516A-000 | SCREW | Ventilator |
| 03541-0412A-000 | SCREW - Screw, speedometer | Ventilator |
| 03541-0516A-000 | SCREW | Ventilator |
| 09409-06318-000 | CLIP | Ventilator |
| 09409-08332-000 | CLIP | Ventilator |
| 73610-59J00-C48 | LOUVER,CTR VENT | Ventilator |
| 73630-59J00-MA1 | LOUVER,SIDE VENT,R | Ventilator |
| 73640-59J00-MA1 | LOUVER,SIDE VENT,L | Ventilator |
| 73651-59J00-P4Z | NOZZLE,SIDE DEMISTER,R | Ventilator |
| 73652-59J00-P4Z | NOZZLE,SIDE DEMISTER,L | Ventilator |
| 73653-59J00-P4Z | NOZZLE,SIDE PILLAR DEMISTER,R | Ventilator |
| 73660-59J00-000 | NOZZLE,DEFROSTER | Ventilator |
| 73681-59J00-000 | DUCT,DEMISTER,R | Ventilator |
| 73691-59J00-000 | DUCT,DEMISTER,L | Ventilator |
| 74621-59J00-000 | DUCT,VENT | Ventilator |
| 74621-59J30-000 | DUCT,VENT | Ventilator |
| 74622-59J00-000 | DUCT,VENT CTR,R | Ventilator |
| 74623-59J00-000 | DUCT,VENT CTR,L | Ventilator |
| 74624-59J00-000 | DUCT,VENT CTR | Ventilator |
| 74624-59J10-000 | DUCT,VENT CTR | Ventilator |
| 74651-54G00-000 | DUCT,RR CTR | Ventilator |
| 74651-54G10-000 | DUCT,RR CTR | Ventilator |
| 74652-59J00-000 | DUCT,RR,R | Ventilator |
| 74653-59J00-000 | DUCT,RR,L | Ventilator |
