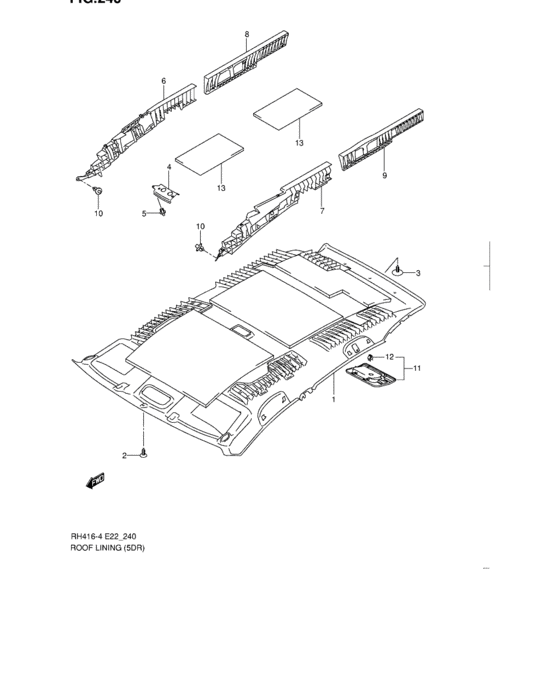

Roof lining (5DR)
15
| # | OEM | Part name |
|---|
| 1 |
78110-54G20-6GS |
Lining comp,roof |
| 1 |
78110-54G30-6GS |
LINING,ROOF |
| 1 |
78110-54G40-6GS |
LINING,ROOF |
| 2 |
09409-06312-6GS |
CLIP(GRAY) |
| 3 |
09409-06326-6GS |
CLIP(GRAY) |
| 4 |
78121-54G00-000 |
RETAINER,SPOT LAMP |
| 5 |
09409-06312-000 |
CLIP |
| 6 |
78151-55G00-000 |
PAD,ROOF SIDE RAIL FR,R |
| 7 |
78161-55G00-000 |
PAD,ROOF SIDE RAIL FR,L |
| 8 |
78152-54G10-000 |
PAD,ROOF SIDE RAIL RR,R |
| 9 |
78162-54G10-000 |
PAD,ROOF SIDE RAIL RR,L |
| 10 |
09409-07308-5PK |
CLIP(BLACK) |
| 11 |
78170-54G40-P7Z |
COVER,RR CTR SEAT BELT |
| 12 |
09409-08325-000 |
CLIP |
| 13 |
78181-54G00-000 |
SHEET,ROOF SILENCER |
| OEM |
Part name |
Category |
| 09409-06312-000 |
CLIP |
Roof lining (5DR) |
| 09409-06312-6GS |
CLIP(GRAY) |
Roof lining (5DR) |
| 09409-06326-6GS |
CLIP(GRAY) |
Roof lining (5DR) |
| 09409-07308-5PK |
CLIP(BLACK) |
Roof lining (5DR) |
| 09409-08325-000 |
CLIP |
Roof lining (5DR) |
| 78110-54G20-6GS |
Lining comp,roof |
Roof lining (5DR) |
| 78110-54G30-6GS |
LINING,ROOF |
Roof lining (5DR) |
| 78110-54G40-6GS |
LINING,ROOF |
Roof lining (5DR) |
| 78121-54G00-000 |
RETAINER,SPOT LAMP |
Roof lining (5DR) |
| 78151-55G00-000 |
PAD,ROOF SIDE RAIL FR,R |
Roof lining (5DR) |
| 78152-54G10-000 |
PAD,ROOF SIDE RAIL RR,R |
Roof lining (5DR) |
| 78161-55G00-000 |
PAD,ROOF SIDE RAIL FR,L |
Roof lining (5DR) |
| 78162-54G10-000 |
PAD,ROOF SIDE RAIL RR,L |
Roof lining (5DR) |
| 78170-54G40-P7Z |
COVER,RR CTR SEAT BELT |
Roof lining (5DR) |
| 78181-54G00-000 |
SHEET,ROOF SILENCER |
Roof lining (5DR) |
