Search › Model › RH414D
RH414D

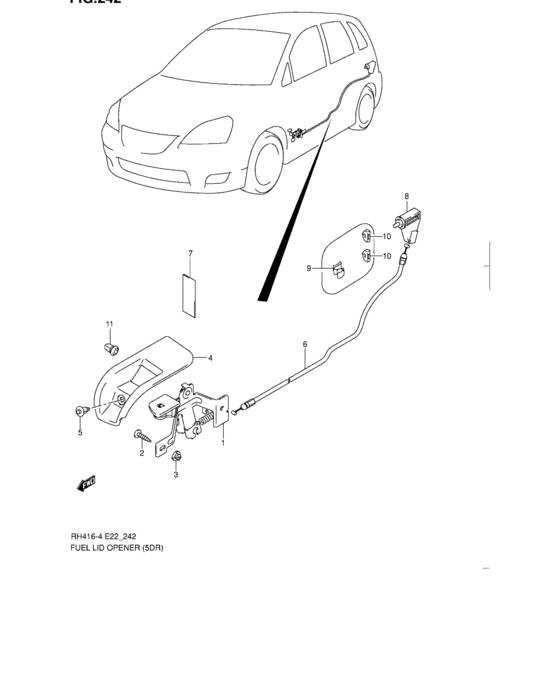

Fuel lid opener (5DR) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 83310-54G11-P4Z | HANDLE,FUEL LID OPENER,L |
| 1 | 83310-54G01-P4Z | HANDLE,FUEL LID OPENER,R |
| 2 | 03241-0612A-000 | SCREW |
| 3 | 09148-06007-000 | NUT |
| 4 | 83321-54G10-P4Z | COVER,OPENER LEVER,L |
| 4 | 83321-54G00-P4Z | COVER,OPENER LEVER |
| 5 | 09409-07308-P4Z | CLIP(GRAY) |
| 6 | 83350-54G30-000 | CABLE,FUEL LID OPENER,L |
| 6 | 83350-54G20-000 | CABLE,FUEL LID OPENER |
| 7 | 36930-82010-000 | COVER,HARNESS - Cover, roof wire |
| 8 | 76520-76G01-000 | OPENER ASSY,FUEL LID |
| 9 | 77111-81A00-000 | SPRING,FUEL LID |
| 10 | 77116-60B20-000 | CUSHION |
| 11 | 09148-05049-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 03241-0612A-000 | SCREW | Fuel lid opener (5DR) |
| 09148-05049-000 | NUT | Fuel lid opener (5DR) |
| 09148-06007-000 | NUT | Fuel lid opener (5DR) |
| 09409-07308-P4Z | CLIP(GRAY) | Fuel lid opener (5DR) |
| 36930-82010-000 | COVER,HARNESS - Cover, roof wire | Fuel lid opener (5DR) |
| 76520-76G01-000 | OPENER ASSY,FUEL LID | Fuel lid opener (5DR) |
| 77111-81A00-000 | SPRING,FUEL LID | Fuel lid opener (5DR) |
| 77116-60B20-000 | CUSHION | Fuel lid opener (5DR) |
| 83310-54G01-P4Z | HANDLE,FUEL LID OPENER,R | Fuel lid opener (5DR) |
| 83310-54G11-P4Z | HANDLE,FUEL LID OPENER,L | Fuel lid opener (5DR) |
| 83321-54G00-P4Z | COVER,OPENER LEVER | Fuel lid opener (5DR) |
| 83321-54G10-P4Z | COVER,OPENER LEVER,L | Fuel lid opener (5DR) |
| 83350-54G20-000 | CABLE,FUEL LID OPENER | Fuel lid opener (5DR) |
| 83350-54G30-000 | CABLE,FUEL LID OPENER,L | Fuel lid opener (5DR) |
