Search › Model › RH414D
RH414D

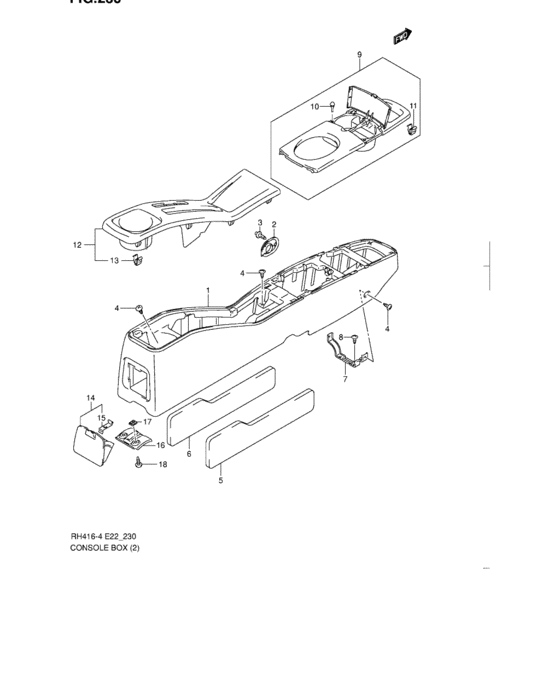

Console box (Saudi Arabia:) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 75811-54G10-P4Z | BOX,FLOOR CONSOLE |
| 2 | 75818-60E30-P4Z | CAP,CONSOLE BOX SIDE |
| 3 | 09409-06317-P4Z | CLIP(GRAY) |
| 4 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 5 | 75851-76F00-000 | SILENCER,CONSOLE BOX REAR,R |
| 6 | 75852-76F00-000 | SILENCER,CONSOLE BOX REAR,L |
| 7 | 75815-54G00-000 | BRACKET,FLOOR CONSOLE BOX,FR |
| 9 | 75820-54G10-P4Z | GARNISH ASSY,GEAR SHIFT |
| 10 | 75813-80F00-000 | CUSHION |
| 11 | 09409-08326-000 | CLIP |
| 12 | 75830-54G00-P4Z | GARNISH,PARK LEVER |
| 14 | 89850-55F00-P4Z | ASHTRAY,RR |
| 15 | 89853-55F01-000 | SPRING,ASHTRAY |
| 16 | 89852-55F00-000 | COVER,RR ASHTRAY |
| 17 | 09148-05045-000 | NUT |
| 18 | 03141-0516A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Console box (Saudi Arabia:) |
| 03141-0516A-000 | SCREW | Console box (Saudi Arabia:) |
| 09148-05045-000 | NUT | Console box (Saudi Arabia:) |
| 09409-06317-P4Z | CLIP(GRAY) | Console box (Saudi Arabia:) |
| 09409-08326-000 | CLIP | Console box (Saudi Arabia:) |
| 75811-54G10-P4Z | BOX,FLOOR CONSOLE | Console box (Saudi Arabia:) |
| 75813-80F00-000 | CUSHION | Console box (Saudi Arabia:) |
| 75815-54G00-000 | BRACKET,FLOOR CONSOLE BOX,FR | Console box (Saudi Arabia:) |
| 75818-60E30-P4Z | CAP,CONSOLE BOX SIDE | Console box (Saudi Arabia:) |
| 75820-54G10-P4Z | GARNISH ASSY,GEAR SHIFT | Console box (Saudi Arabia:) |
| 75830-54G00-P4Z | GARNISH,PARK LEVER | Console box (Saudi Arabia:) |
| 75851-76F00-000 | SILENCER,CONSOLE BOX REAR,R | Console box (Saudi Arabia:) |
| 75852-76F00-000 | SILENCER,CONSOLE BOX REAR,L | Console box (Saudi Arabia:) |
| 89850-55F00-P4Z | ASHTRAY,RR | Console box (Saudi Arabia:) |
| 89852-55F00-000 | COVER,RR ASHTRAY | Console box (Saudi Arabia:) |
| 89853-55F01-000 | SPRING,ASHTRAY | Console box (Saudi Arabia:) |
