RH414D

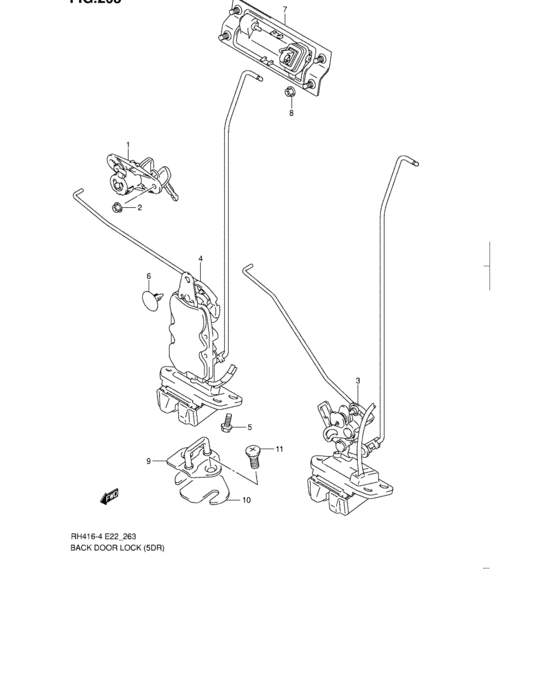

Back door lock (5DR) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 82500-54840-000 | CYLINDER ASSY,BACK DR LOCK |
| 2 | 08316-1006A-000 | NUT |
| 3 | 82510-54G32-000 | LATCH ASSY,BACK DR |
| 4 | 82510-54G22-000 | LATCH ASSY,BACK DR |
| 5 | 02162-0616C-000 | SCREW |
| 5 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 6 | 09409-06326-5PK | CLIP(BLACK) |
| 6 | 09409-07320-000 | CAP |
| 7 | 82850-54G00-000 | HANDLE,BACK DOOR |
| 9 | 82610-60D00-000 | STRIKER,DOOR LATCH |
| 10 | 78199-78000-000 | SPACER,DOOR LOCK STRIKER |
| 11 | 09137-08004-000 | SCREW(8X18) |
| 11 | 09137-08011-000 | SCREW(8X18) |
| OEM | Part name | Category |
|---|---|---|
| 02162-0616B-000 | SCREW - Bolt, adjust | Back door lock (5DR) |
| 02162-0616C-000 | SCREW | Back door lock (5DR) |
| 08316-1006A-000 | NUT | Back door lock (5DR) |
| 09137-08004-000 | SCREW(8X18) | Back door lock (5DR) |
| 09137-08011-000 | SCREW(8X18) | Back door lock (5DR) |
| 09409-06326-5PK | CLIP(BLACK) | Back door lock (5DR) |
| 09409-07320-000 | CAP | Back door lock (5DR) |
| 78199-78000-000 | SPACER,DOOR LOCK STRIKER | Back door lock (5DR) |
| 82500-54840-000 | CYLINDER ASSY,BACK DR LOCK | Back door lock (5DR) |
| 82510-54G22-000 | LATCH ASSY,BACK DR | Back door lock (5DR) |
| 82510-54G32-000 | LATCH ASSY,BACK DR | Back door lock (5DR) |
| 82610-60D00-000 | STRIKER,DOOR LATCH | Back door lock (5DR) |
| 82850-54G00-000 | HANDLE,BACK DOOR | Back door lock (5DR) |
