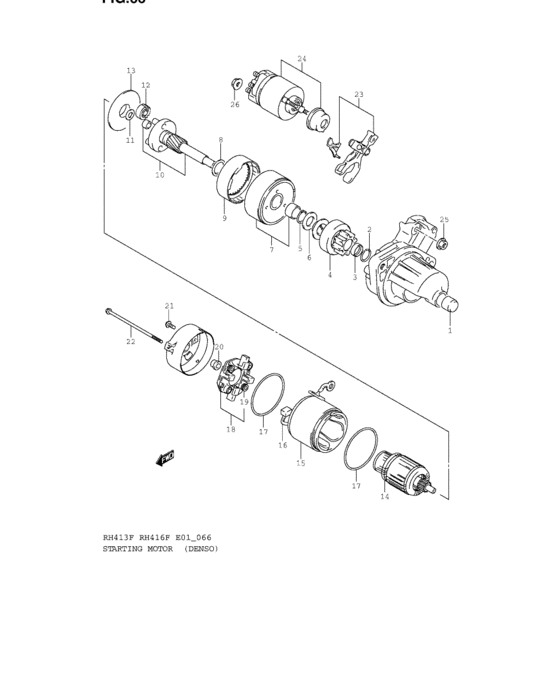

Starting motor (DENSO)
30
| # | OEM | Part name |
|---|
| 0 |
31100-80G00-000 |
MOTOR ASSY,STARTING |
| 1 |
31152-52A50-000 |
BEARING |
| 2 |
31312-51A10-000 |
RING,SNAP |
| 3 |
31313-79010-000 |
COLLAR,PINION STOP |
| 4 |
31320-60B50-000 |
CLUTCH,STARTER |
| 5 |
31361-10200-000 |
RING,SNAP |
| 6 |
31155-60B50-000 |
WASHER |
| 7 |
31348-60B50-000 |
SHOCK ABSORBER |
| 8 |
31154-60B50-000 |
WASHER |
| 9 |
31343-60B50-000 |
GEAR,INTERNAL |
| 10 |
31341-60B50-000 |
SHAFT,PLANETARY CARRIER |
| 11 |
31153-60B50-000 |
WASHER |
| 12 |
31344-60B50-000 |
GEAR,PLNTY |
| 13 |
31349-60B50-000 |
PLATE |
| 14 |
31311-60B51-000 |
ARMATURE ASSY,STARTER |
| 15 |
31110-60B51-000 |
YOKE ASSY |
| 16 |
31131-60B50-000 |
STARTER KIT |
| 17 |
31125-60B50-000 |
O-RING |
| 18 |
31173-60B50-000 |
HOLDER ASSY,BRUSH |
| 19 |
31135-60B50-000 |
SPRING,BRUSH |
| 20 |
31172-60B50-000 |
BEARING |
| 21 |
31136-64G00-000 |
SCREW |
| 22 |
31281-24B10-000 |
Bolt |
| 22 |
31281-31D00-000 |
Bolt - Screw |
| 23 |
31191-60B50-000 |
LEVER,STARTER DRIVE |
| 24 |
31220-51A10-000 |
SWITCH ASSY |
| 25 |
08316-10063-000 |
Nut |
| 25 |
08316-1006B-000 |
NUT |
| 26 |
08316-10083-000 |
Nut |
| 26 |
08316-1008B-000 |
NUT |
| OEM |
Part name |
Category |
| 08316-10063-000 |
Nut |
Starting motor (DENSO) |
| 08316-1006B-000 |
NUT |
Starting motor (DENSO) |
| 08316-10083-000 |
Nut |
Starting motor (DENSO) |
| 08316-1008B-000 |
NUT |
Starting motor (DENSO) |
| 31100-80G00-000 |
MOTOR ASSY,STARTING |
Starting motor (DENSO) |
| 31110-60B51-000 |
YOKE ASSY |
Starting motor (DENSO) |
| 31125-60B50-000 |
O-RING |
Starting motor (DENSO) |
| 31131-60B50-000 |
STARTER KIT |
Starting motor (DENSO) |
| 31135-60B50-000 |
SPRING,BRUSH |
Starting motor (DENSO) |
| 31136-64G00-000 |
SCREW |
Starting motor (DENSO) |
| 31152-52A50-000 |
BEARING |
Starting motor (DENSO) |
| 31153-60B50-000 |
WASHER |
Starting motor (DENSO) |
| 31154-60B50-000 |
WASHER |
Starting motor (DENSO) |
| 31155-60B50-000 |
WASHER |
Starting motor (DENSO) |
| 31172-60B50-000 |
BEARING |
Starting motor (DENSO) |
| 31173-60B50-000 |
HOLDER ASSY,BRUSH |
Starting motor (DENSO) |
| 31191-60B50-000 |
LEVER,STARTER DRIVE |
Starting motor (DENSO) |
| 31220-51A10-000 |
SWITCH ASSY |
Starting motor (DENSO) |
| 31281-24B10-000 |
Bolt |
Starting motor (DENSO) |
| 31281-31D00-000 |
Bolt - Screw |
Starting motor (DENSO) |
| 31311-60B51-000 |
ARMATURE ASSY,STARTER |
Starting motor (DENSO) |
| 31312-51A10-000 |
RING,SNAP |
Starting motor (DENSO) |
| 31313-79010-000 |
COLLAR,PINION STOP |
Starting motor (DENSO) |
| 31320-60B50-000 |
CLUTCH,STARTER |
Starting motor (DENSO) |
| 31341-60B50-000 |
SHAFT,PLANETARY CARRIER |
Starting motor (DENSO) |
| 31343-60B50-000 |
GEAR,INTERNAL |
Starting motor (DENSO) |
| 31344-60B50-000 |
GEAR,PLNTY |
Starting motor (DENSO) |
| 31348-60B50-000 |
SHOCK ABSORBER |
Starting motor (DENSO) |
| 31349-60B50-000 |
PLATE |
Starting motor (DENSO) |
| 31361-10200-000 |
RING,SNAP |
Starting motor (DENSO) |
