RH413F

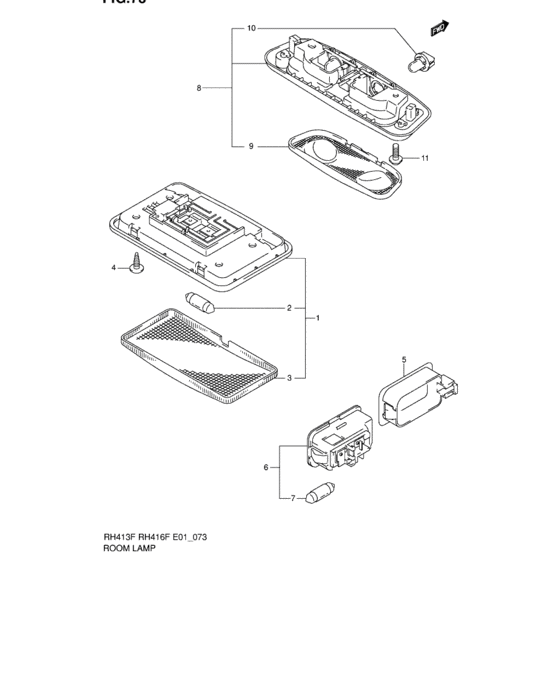

Room lamp (ROOM LAMP) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 36210-60G00-6GS | LAMP |
| 1 | 36210-60G01-6GS | LAMP ASSY,ROOM |
| 2 | 09471-12187-000 | BULB(12V8W,TOKAI DENSO) |
| 3 | 36212-60G00-000 | LENS,ROOM LAMP |
| 4 | 03142-05123-000 | Screw - Screw, belt cooling duct |
| 4 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 5 | 36216-54G00-000 | COVER,LUGGAGE LAMP HOLE |
| 6 | 36210-54G10-000 | LAMP ASSY,LUGGAGE ROOM |
| 7 | 09471-12073-000 | BULB(12V,5W) |
| 8 | 36230-65D00-6GS | LAMP |
| 8 | 36230-65D01-6GS | LAMP ASSY,SPOT |
| 9 | 36232-65D00-000 | LENS,SPOT LAMP |
| 10 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 10 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| OEM | Part name | Category |
|---|---|---|
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Room lamp (ROOM LAMP) |
| 03142-05123-000 | Screw - Screw, belt cooling duct | Room lamp (ROOM LAMP) |
| 09471-12073-000 | BULB(12V,5W) | Room lamp (ROOM LAMP) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Room lamp (ROOM LAMP) |
| 09471-12187-000 | BULB(12V8W,TOKAI DENSO) | Room lamp (ROOM LAMP) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Room lamp (ROOM LAMP) |
| 36210-54G10-000 | LAMP ASSY,LUGGAGE ROOM | Room lamp (ROOM LAMP) |
| 36210-60G00-6GS | LAMP | Room lamp (ROOM LAMP) |
| 36210-60G01-6GS | LAMP ASSY,ROOM | Room lamp (ROOM LAMP) |
| 36212-60G00-000 | LENS,ROOM LAMP | Room lamp (ROOM LAMP) |
| 36216-54G00-000 | COVER,LUGGAGE LAMP HOLE | Room lamp (ROOM LAMP) |
| 36230-65D00-6GS | LAMP | Room lamp (ROOM LAMP) |
| 36230-65D01-6GS | LAMP ASSY,SPOT | Room lamp (ROOM LAMP) |
| 36232-65D00-000 | LENS,SPOT LAMP | Room lamp (ROOM LAMP) |
