| 01550-10203-000 |
Bolt - Bolt, lower |

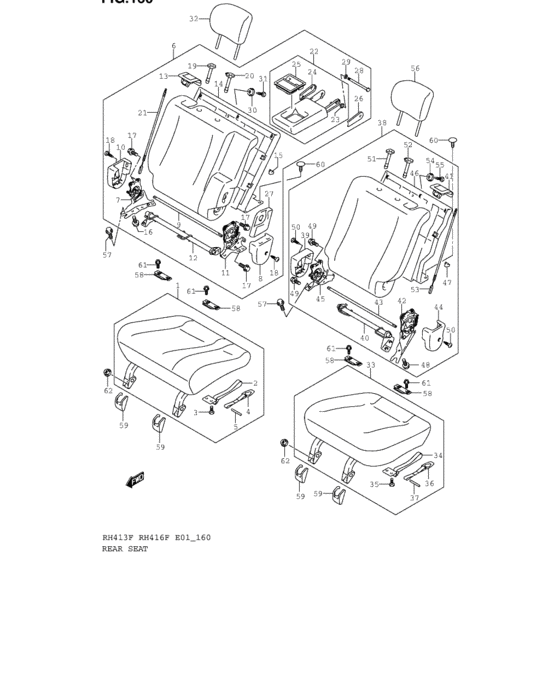

Rear seat (W/ARMREST) |
| 01550-1020A-000 |
Bolt - Bolt, bal sprocket |
Rear seat (W/ARMREST) |
| 01551-10253-000 |
Bolt |
Rear seat (W/ARMREST) |
| 01551-1025A-000 |
Bolt |
Rear seat (W/ARMREST) |
| 02142-06163-000 |
Screw |
Rear seat (W/ARMREST) |
| 02142-0616A-000 |
SCREW |
Rear seat (W/ARMREST) |
| 02162-06163-000 |
Screw - Bolt |
Rear seat (W/ARMREST) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
Rear seat (W/ARMREST) |
| 03241-0512A-000 |
SCREW |
Rear seat (W/ARMREST) |
| 03241-0520A-000 |
SCREW |
Rear seat (W/ARMREST) |
| 03242-05123-000 |
Screw, inner cover |
Rear seat (W/ARMREST) |
| 03242-05203-000 |
Screw, inner |
Rear seat (W/ARMREST) |
| 08316-10103-000 |
Nut |
Rear seat (W/ARMREST) |
| 08316-1010B-000 |
NUT |
Rear seat (W/ARMREST) |
| 08321-01103-000 |
Washer - Lock washer |
Rear seat (W/ARMREST) |
| 08321-0110A-000 |
WASHER,LOCK |
Rear seat (W/ARMREST) |
| 08321-0110B-000 |
WASHER,LOCK - Washer, knuckle end |
Rear seat (W/ARMREST) |
| 09119-10071-000 |
Bolt |
Rear seat (W/ARMREST) |
| 09409-06324-000 |
CLIP |
Rear seat (W/ARMREST) |
| 09409-10302-P4Z |
CLIP(GRAY) |
Rear seat (W/ARMREST) |
| 85291-82C00-000 |
BUSH |
Rear seat (W/ARMREST) |
| 85341-81A00-P4Z |
GUIDE,HEADRESTRAINT |
Rear seat (W/ARMREST) |
| 85840-81A00-P4Z |
ガイド,ヘッドレストレイント(グレー) |
Rear seat (W/ARMREST) |
| 85840-81A10-P4Z |
GUIDE,HEADRESTRAINT |
Rear seat (W/ARMREST) |
| 86401-54G00-GA2 |
HEADRESTRAINT ASSY |
Rear seat (W/ARMREST) |
| 86401-54G00-GA3 |
HEADRESTRAINT ASSY |
Rear seat (W/ARMREST) |
| 87101-54G00-FJ2 |
Cushion assy, rr rh |
Rear seat (W/ARMREST) |
| 87101-54G00-FJ4 |
Cushion assy, rr rh |
Rear seat (W/ARMREST) |
| 87101-54G01-FJ2 |
CUSHION ASSY,RR,R |
Rear seat (W/ARMREST) |
| 87101-54G01-FJ4 |
CUSHION ASSY,RR,R |
Rear seat (W/ARMREST) |
| 87102-54G00-FJ2 |
Cushion assy, rr lh |
Rear seat (W/ARMREST) |
| 87102-54G00-FJ4 |
Cushion assy, rr lh |
Rear seat (W/ARMREST) |
| 87102-54G01-FJ4 |
CUSHION ASSY,RR,L |
Rear seat (W/ARMREST) |
| 87210-54G00-000 |
Reclining assy,rr outside,r |
Rear seat (W/ARMREST) |
| 87221-54G00-P4Z |
COVER,RECL UPPER OUT,R |
Rear seat (W/ARMREST) |
| 87230-54G00-000 |
Reclining assy,rr inside,r |
Rear seat (W/ARMREST) |
| 87241-54G00-P4Z |
カバー,リクラアッパインサイド,ライト(グレー) |
Rear seat (W/ARMREST) |
| 87241-54G01-P4Z |
COVER,RECL UPPER INS,R |
Rear seat (W/ARMREST) |
| 87251-54G00-000 |
ROD,RCLNG,R |
Rear seat (W/ARMREST) |
| 87260-54G00-000 |
BRACKET,CHILD ANCHORAGE,R |
Rear seat (W/ARMREST) |
| 87290-54G00-000 |
ノブ,リクラリリース |
Rear seat (W/ARMREST) |
| 87294-54G00-000 |
Cable,rclng release |
Rear seat (W/ARMREST) |
| 87301-54G90-FJ2 |
Back assy, rear rh |
Rear seat (W/ARMREST) |
| 87301-54G90-FJ4 |
Back assy, rear rh |
Rear seat (W/ARMREST) |
| 87302-54G80-FJ2 |
BACK ASSY,RR,L |
Rear seat (W/ARMREST) |
| 87302-54G80-FJ4 |
BACK ASSY,RR,L |
Rear seat (W/ARMREST) |
| 87390-54G20-P9S |
BOARD,RR BACK,R |
Rear seat (W/ARMREST) |
| 87420-54G00-000 |
バンド,リヤストッパ |
Rear seat (W/ARMREST) |
| 87420-54G01-000 |
BAND,RR STOPPER |
Rear seat (W/ARMREST) |
| 87423-65DA0-000 |
PIN,REAR STOPPER BAND |
Rear seat (W/ARMREST) |
| 87429-65DA0-5PK |
GUIDE,STOPPER BAND |
Rear seat (W/ARMREST) |
| 87440-54G00-000 |
STRIKER,RR CUSHION |
Rear seat (W/ARMREST) |
| 87460-54G00-000 |
ロック,リヤクッション |
Rear seat (W/ARMREST) |
| 87460-54G01-000 |
LOCK,RR CUSH |
Rear seat (W/ARMREST) |
| 87491-54G00-P4Z |
COVER,RR CUSHION HINGE |
Rear seat (W/ARMREST) |
| 87501-54G50-P8E |
ARMREST ASSY,RR BACK |
Rear seat (W/ARMREST) |
| 87501-54G50-P8F |
ARMREST ASSY,RR BACK |
Rear seat (W/ARMREST) |
| 87561-54G50-P4Z |
COVER,ARMREST STAY,OUT |
Rear seat (W/ARMREST) |
| 87562-54G50-P4Z |
COVER,ARMREST STAY,INS |
Rear seat (W/ARMREST) |
| 87571-54G00-000 |
カバー,アームレストヒンジ |
Rear seat (W/ARMREST) |
| 87572-54G00-000 |
ボルト,アームレスト |
Rear seat (W/ARMREST) |
| 87572-54G50-000 |
Bolt,armrest |
Rear seat (W/ARMREST) |
| 87590-54G50-P4Z |
HOLDER ASSY,CUP |
Rear seat (W/ARMREST) |
| 87710-54G00-000 |
Reclining assy,rr outside,l |
Rear seat (W/ARMREST) |
| 87721-54G00-P4Z |
COVER,RECL UPPER OUT,L |
Rear seat (W/ARMREST) |
| 87730-54G00-000 |
Reclining assy,rr inside,l |
Rear seat (W/ARMREST) |
| 87741-54G00-P4Z |
カバー,リクライニングアッパインサイド,レフト |
Rear seat (W/ARMREST) |
| 87741-54G01-P4Z |
COVER,RECL UPPER INS,L |
Rear seat (W/ARMREST) |
| 87751-54G00-000 |
ROD,RCLNG,L |
Rear seat (W/ARMREST) |
| 87760-54G00-000 |
BRACKET,CHILD ANCHORAGE,L |
Rear seat (W/ARMREST) |
| 87890-54G20-P9S |
BOARD,RR BACK,L |
Rear seat (W/ARMREST) |
