Search › Model › RH413F
RH413F

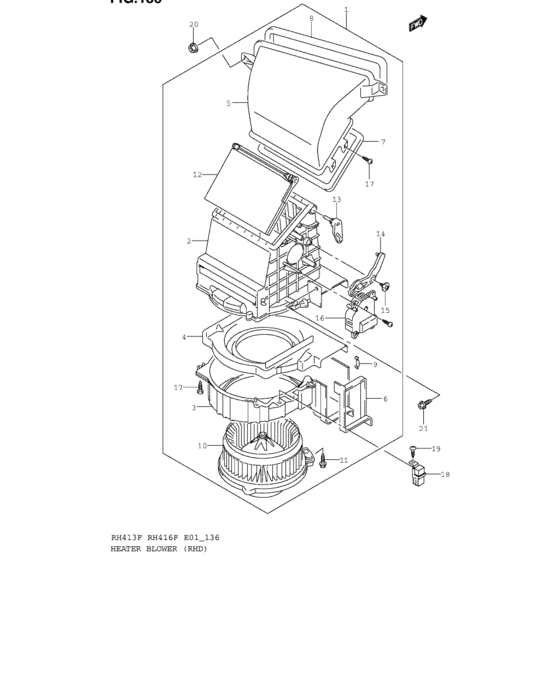

Heater blower (RHD) 26
| # | OEM | Part name |
|---|---|---|
| 1 | 74200-54G00-000 | Blower unit |
| 1 | 74200-54G01-000 | BLOWER UNIT |
| 2 | 74211-54G20-000 | CASE,UPPER |
| 3 | 74212-54G00-000 | CASE,LOWER |
| 4 | 74213-54G00-000 | PLATE |
| 5 | 74214-54G00-000 | ケース,インレットダクト |
| 5 | 74214-59J00-000 | CASE,INLET DUCT |
| 6 | 74215-54G00-000 | PACKING,HEATER JOINT |
| 7 | 74216-54G00-000 | PACKING,BLOWER DUCT |
| 8 | 74217-54G00-000 | PACKING |
| 9 | 74133-82000-000 | CLAMP,CASE |
| 10 | 74250-54G00-000 | MOTOR ASSY,FAN |
| 11 | 94135-82000-000 | SCREW |
| 12 | 74271-54G00-000 | DOOR ASSY |
| 13 | 74281-54G00-000 | LEVER,LINK |
| 14 | 74282-54G00-000 | LEVER,DR |
| 15 | 74183-82005-000 | SCREW,LINK |
| 16 | 95652-54G00-000 | ACTUATOR,FRESH / RECIRCULATION |
| 17 | 03112-04163-000 | Screw |
| 17 | 03111-0416A-000 | SCREW |
| 18 | 74291-54G00-000 | RELAY,BLOWER MOTOR |
| 19 | 03541-05103-000 | Screw5 x 10 |
| 19 | 03541-0510B-000 | SCREW |
| 19 | 03541-0510A-000 | SCREW - Screw, rr cover |
| 20 | 09159-06081-000 | NUT |
| 21 | 09136-06140-000 | SCREW(6X25) |
| OEM | Part name | Category |
|---|---|---|
| 03111-0416A-000 | SCREW | Heater blower (RHD) |
| 03112-04163-000 | Screw | Heater blower (RHD) |
| 03541-05103-000 | Screw5 x 10 | Heater blower (RHD) |
| 03541-0510A-000 | SCREW - Screw, rr cover | Heater blower (RHD) |
| 03541-0510B-000 | SCREW | Heater blower (RHD) |
| 09136-06140-000 | SCREW(6X25) | Heater blower (RHD) |
| 09159-06081-000 | NUT | Heater blower (RHD) |
| 74133-82000-000 | CLAMP,CASE | Heater blower (RHD) |
| 74183-82005-000 | SCREW,LINK | Heater blower (RHD) |
| 74200-54G00-000 | Blower unit | Heater blower (RHD) |
| 74200-54G01-000 | BLOWER UNIT | Heater blower (RHD) |
| 74211-54G20-000 | CASE,UPPER | Heater blower (RHD) |
| 74212-54G00-000 | CASE,LOWER | Heater blower (RHD) |
| 74213-54G00-000 | PLATE | Heater blower (RHD) |
| 74214-54G00-000 | ケース,インレットダクト | Heater blower (RHD) |
| 74214-59J00-000 | CASE,INLET DUCT | Heater blower (RHD) |
| 74215-54G00-000 | PACKING,HEATER JOINT | Heater blower (RHD) |
| 74216-54G00-000 | PACKING,BLOWER DUCT | Heater blower (RHD) |
| 74217-54G00-000 | PACKING | Heater blower (RHD) |
| 74250-54G00-000 | MOTOR ASSY,FAN | Heater blower (RHD) |
| 74271-54G00-000 | DOOR ASSY | Heater blower (RHD) |
| 74281-54G00-000 | LEVER,LINK | Heater blower (RHD) |
| 74282-54G00-000 | LEVER,DR | Heater blower (RHD) |
| 74291-54G00-000 | RELAY,BLOWER MOTOR | Heater blower (RHD) |
| 94135-82000-000 | SCREW | Heater blower (RHD) |
| 95652-54G00-000 | ACTUATOR,FRESH / RECIRCULATION | Heater blower (RHD) |
