RH413F

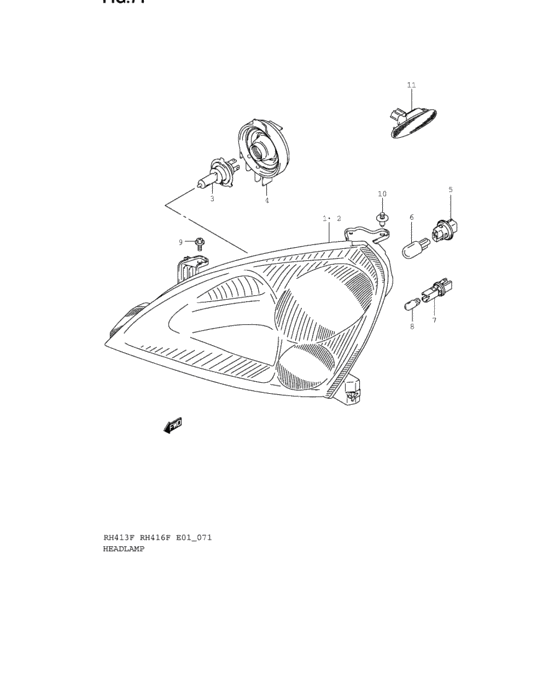

Headlamp (HEADLAMP) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 35120-54G40-000 | UNIT,HEADLAMP,R |
| 1 | 35120-54G30-000 | UNIT,HEADLAMP,R |
| 1 | 35120-54G10-000 | UNIT,HEADLAMP,R |
| 1 | 35120-54G20-000 | UNIT,HEADLAMP,R |
| 2 | 35320-54G40-000 | UNIT,HEADLAMP,L |
| 2 | 35320-54G30-000 | UNIT,HEADLAMP,L |
| 2 | 35320-54G10-000 | UNIT,HEADLAMP,L |
| 2 | 35320-54G20-000 | UNIT,HEADLAMP,L |
| 3 | 09471-12182-000 | BULB(12V60/55W,H4) |
| 4 | 35125-77A00-000 | COVER,SOCKET |
| 5 | 36118-76F10-000 | SOCKET,TURN LAMP |
| 6 | 09471-12045-000 | BULB(12V21W) |
| 7 | 35118-76F00-000 | SOCKET,POSITION LAMP |
| 8 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 8 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 9 | 09122-76001-000 | SCREW(6X16) |
| 10 | 09409-07308-5PK | CLIP(BLACK) |
| 11 | 36410-54G00-000 | ランプアッシ,サイドターンシグナル |
| 11 | 36410-54G01-000 | LAMP ASSY,TURN SIG |
| OEM | Part name | Category |
|---|---|---|
| 09122-76001-000 | SCREW(6X16) | Headlamp (HEADLAMP) |
| 09409-07308-5PK | CLIP(BLACK) | Headlamp (HEADLAMP) |
| 09471-12045-000 | BULB(12V21W) | Headlamp (HEADLAMP) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Headlamp (HEADLAMP) |
| 09471-12182-000 | BULB(12V60/55W,H4) | Headlamp (HEADLAMP) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Headlamp (HEADLAMP) |
| 35118-76F00-000 | SOCKET,POSITION LAMP | Headlamp (HEADLAMP) |
| 35120-54G10-000 | UNIT,HEADLAMP,R | Headlamp (HEADLAMP) |
| 35120-54G20-000 | UNIT,HEADLAMP,R | Headlamp (HEADLAMP) |
| 35120-54G30-000 | UNIT,HEADLAMP,R | Headlamp (HEADLAMP) |
| 35120-54G40-000 | UNIT,HEADLAMP,R | Headlamp (HEADLAMP) |
| 35125-77A00-000 | COVER,SOCKET | Headlamp (HEADLAMP) |
| 35320-54G10-000 | UNIT,HEADLAMP,L | Headlamp (HEADLAMP) |
| 35320-54G20-000 | UNIT,HEADLAMP,L | Headlamp (HEADLAMP) |
| 35320-54G30-000 | UNIT,HEADLAMP,L | Headlamp (HEADLAMP) |
| 35320-54G40-000 | UNIT,HEADLAMP,L | Headlamp (HEADLAMP) |
| 36118-76F10-000 | SOCKET,TURN LAMP | Headlamp (HEADLAMP) |
| 36410-54G00-000 | ランプアッシ,サイドターンシグナル | Headlamp (HEADLAMP) |
| 36410-54G01-000 | LAMP ASSY,TURN SIG | Headlamp (HEADLAMP) |
