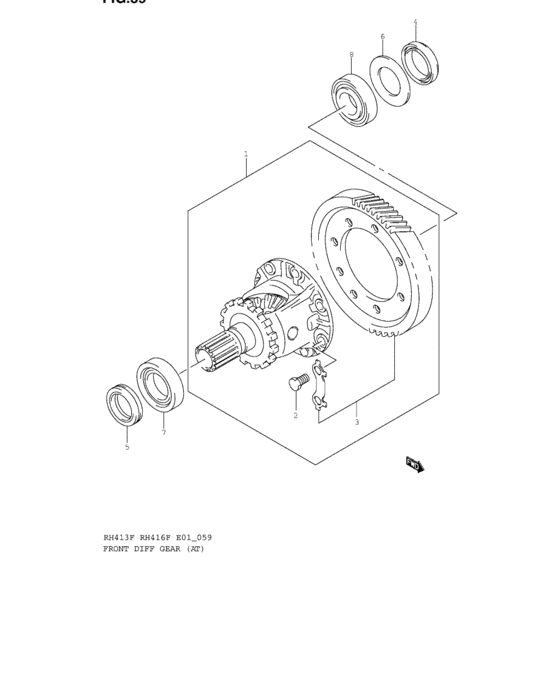

Front diff gear (AT)
25
| # | OEM | Part name |
|---|
| 1 |
27300-54GH0-000 |
GEAR ASSY,DIFFERENTIAL |
| 1 |
27300-54G10-000 |
GEAR ASSY,DIFFERENTIAL |
| 2 |
27516-60G10-000 |
BOLT,FINAL DRIVEN GEAR |
| 3 |
27511-61GT0-000 |
GEAR SET,FINAL DRIVEN |
| 4 |
27431-60G10-000 |
SEAL,DIFF SIDE OIL |
| 5 |
27441-60G10-000 |
SEAL,DIFF SIDE,R |
| 6 |
27454-60G10-002 |
SHIM,DIFF SIDE T:2.35 |
| 6 |
27454-60G10-003 |
SHIM,DIFF SIDE T:2.40 |
| 6 |
27454-60G10-004 |
SHIM,DIFF SIDE T:2.45 |
| 6 |
27454-60G10-005 |
SHIM,DIFF SIDE T:2.50 |
| 6 |
27454-60G10-006 |
SHIM,DIFF SIDE T:2.55 |
| 6 |
27454-60G10-007 |
SHIM,DIFF SIDE T:2.60 |
| 6 |
27454-60G10-008 |
SHIM,DIFF SIDE T:2.65 |
| 6 |
27454-60G10-009 |
SHIM,DIFF SIDE T:2.70 |
| 6 |
27454-60G10-010 |
SHIM,DIFF SIDE T:2.75 |
| 6 |
27454-60G10-011 |
SHIM,DIFF SIDE T:2.80 |
| 6 |
27454-60G10-012 |
SHIM,DIFF SIDE T:2.85 |
| 6 |
27454-60G10-013 |
SHIM,DIFF SIDE T:2.90 |
| 6 |
27454-60G10-014 |
SHIM,DIFF SIDE T:2.10 |
| 6 |
27454-60G10-015 |
SHIM,DIFF SIDE T:2.15 |
| 6 |
27454-60G10-016 |
SHIM,DIFF SIDE T:2.20 |
| 6 |
27454-60G10-017 |
SHIM,DIFF SIDE T:2.25 |
| 6 |
27454-60G10-018 |
SHIM,DIFF SIDE T:2.30 |
| 7 |
27483-60G10-000 |
RACE,DIFF SIDE |
| 8 |
27484-60G10-000 |
RACE,DIFF SIDE |
| OEM |
Part name |
Category |
| 27300-54G10-000 |
GEAR ASSY,DIFFERENTIAL |
Front diff gear (AT) |
| 27300-54GH0-000 |
GEAR ASSY,DIFFERENTIAL |
Front diff gear (AT) |
| 27431-60G10-000 |
SEAL,DIFF SIDE OIL |
Front diff gear (AT) |
| 27441-60G10-000 |
SEAL,DIFF SIDE,R |
Front diff gear (AT) |
| 27454-60G10-002 |
SHIM,DIFF SIDE T:2.35 |
Front diff gear (AT) |
| 27454-60G10-003 |
SHIM,DIFF SIDE T:2.40 |
Front diff gear (AT) |
| 27454-60G10-004 |
SHIM,DIFF SIDE T:2.45 |
Front diff gear (AT) |
| 27454-60G10-005 |
SHIM,DIFF SIDE T:2.50 |
Front diff gear (AT) |
| 27454-60G10-006 |
SHIM,DIFF SIDE T:2.55 |
Front diff gear (AT) |
| 27454-60G10-007 |
SHIM,DIFF SIDE T:2.60 |
Front diff gear (AT) |
| 27454-60G10-008 |
SHIM,DIFF SIDE T:2.65 |
Front diff gear (AT) |
| 27454-60G10-009 |
SHIM,DIFF SIDE T:2.70 |
Front diff gear (AT) |
| 27454-60G10-010 |
SHIM,DIFF SIDE T:2.75 |
Front diff gear (AT) |
| 27454-60G10-011 |
SHIM,DIFF SIDE T:2.80 |
Front diff gear (AT) |
| 27454-60G10-012 |
SHIM,DIFF SIDE T:2.85 |
Front diff gear (AT) |
| 27454-60G10-013 |
SHIM,DIFF SIDE T:2.90 |
Front diff gear (AT) |
| 27454-60G10-014 |
SHIM,DIFF SIDE T:2.10 |
Front diff gear (AT) |
| 27454-60G10-015 |
SHIM,DIFF SIDE T:2.15 |
Front diff gear (AT) |
| 27454-60G10-016 |
SHIM,DIFF SIDE T:2.20 |
Front diff gear (AT) |
| 27454-60G10-017 |
SHIM,DIFF SIDE T:2.25 |
Front diff gear (AT) |
| 27454-60G10-018 |
SHIM,DIFF SIDE T:2.30 |
Front diff gear (AT) |
| 27483-60G10-000 |
RACE,DIFF SIDE |
Front diff gear (AT) |
| 27484-60G10-000 |
RACE,DIFF SIDE |
Front diff gear (AT) |
| 27511-61GT0-000 |
GEAR SET,FINAL DRIVEN |
Front diff gear (AT) |
| 27516-60G10-000 |
BOLT,FINAL DRIVEN GEAR |
Front diff gear (AT) |
