Search › Model › RH413F
RH413F

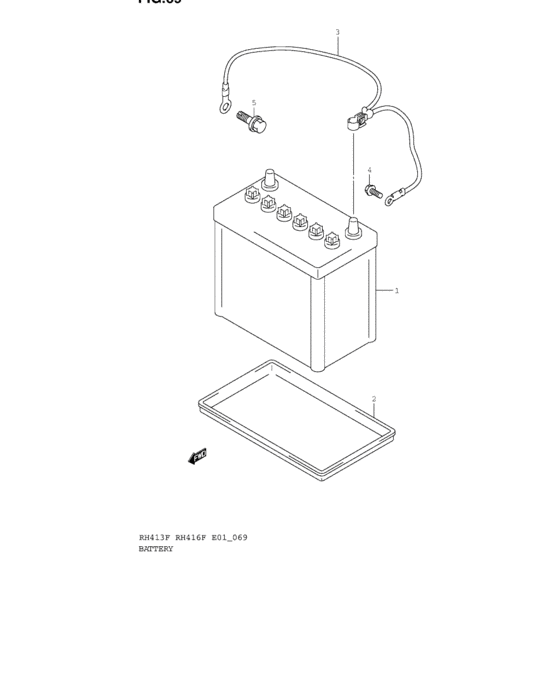

Battery (BATTERY) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) |
| 1 | 33610-60G10-000 | Battery,55b24l,12v38ah/5hr |
| 1 | 33610-60GV1-000 | BATTERY ASSY,55B24L [Cannot be supplied] |
| 1 | 33610-77E60-000 | バッテリアッシ,75D23LーMF(FB) |
| 1 | 33610-77EV8-000 | BATTERY ASSY,75D23L (Cannot be supplied) |
| 2 | 33660-60G00-000 | TRAY,BATTERY |
| 3 | 33850-54G10-000 | ケーブル,バッテリグランド |
| 3 | 33850-54G11-000 | CABLE,BATTERY GROUND |
| 3 | 33850-54G30-000 | Cable, battery ground |
| 3 | 33850-54G31-000 | CABLE,BATTERY GROUND |
| 4 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 4 | 09115-06005-000 | BOLT(6X16) |
| OEM | Part name | Category |
|---|---|---|
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Battery (BATTERY) |
| 09115-06005-000 | BOLT(6X16) | Battery (BATTERY) |
| 33610-60G10-000 | Battery,55b24l,12v38ah/5hr | Battery (BATTERY) |
| 33610-60GV1-000 | BATTERY ASSY,55B24L [Cannot be supplied] | Battery (BATTERY) |
| 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) | Battery (BATTERY) |
| 33610-77E60-000 | バッテリアッシ,75D23LーMF(FB) | Battery (BATTERY) |
| 33610-77EV8-000 | BATTERY ASSY,75D23L (Cannot be supplied) | Battery (BATTERY) |
| 33660-60G00-000 | TRAY,BATTERY | Battery (BATTERY) |
| 33850-54G10-000 | ケーブル,バッテリグランド | Battery (BATTERY) |
| 33850-54G11-000 | CABLE,BATTERY GROUND | Battery (BATTERY) |
| 33850-54G30-000 | Cable, battery ground | Battery (BATTERY) |
| 33850-54G31-000 | CABLE,BATTERY GROUND | Battery (BATTERY) |
