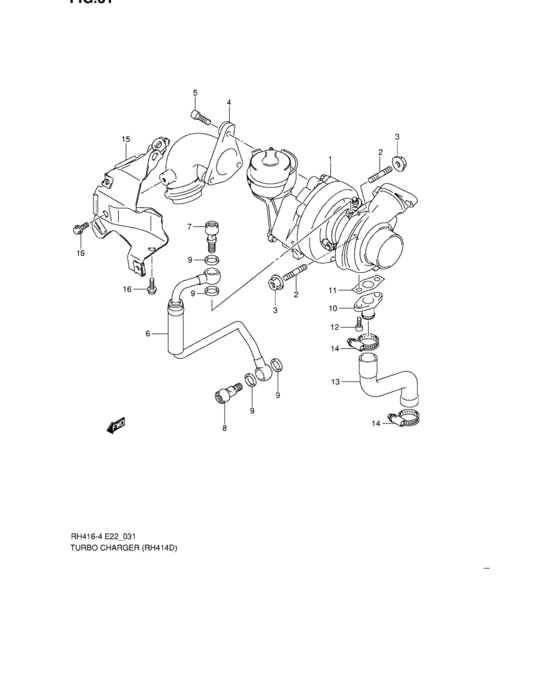

Turbo charger (DIESEL)
17
| # | OEM | Part name |
|---|
| 1 |
13900-73J01-000 |
Charger assy, turbo |
| 2 |
13912-67G10-000 |
STUD BOLT,M8 |
| 3 |
13913-67G10-000 |
NUT,M8 |
| 4 |
13920-73J00-000 |
Elbow |
| 5 |
14116-66G00-000 |
Bolt,turbo outlet pipe |
| 6 |
13930-73J00-000 |
Pipe, turbo oil |
| 7 |
13941-73J00-000 |
Bolt, union - 10x35 |
| 8 |
13942-73J00-000 |
Bolt, union - 10x27 |
| 9 |
13943-73J00-000 |
Gasket - 12.2x18x3 |
| 10 |
13950-73J00-000 |
Pipe, oil return |
| 11 |
13941-66G00-000 |
GASKET,OIL DRAIN PIPE |
| 11 |
13941-66G01-000 |
GASKET,OIL DRAIN PIPE |
| 12 |
13946-73J00-000 |
Bolt - 6x16 |
| 13 |
13951-73J00-000 |
Hose, oil return |
| 14 |
13914-67G10-000 |
CLAMP |
| 15 |
13961-73J00-000 |
Deflector, turbo air |
| 16 |
16937-67G10-000 |
BOLT,6X16 |
| OEM |
Part name |
Category |
| 13900-73J01-000 |
Charger assy, turbo |
Turbo charger (DIESEL) |
| 13912-67G10-000 |
STUD BOLT,M8 |
Turbo charger (DIESEL) |
| 13913-67G10-000 |
NUT,M8 |
Turbo charger (DIESEL) |
| 13914-67G10-000 |
CLAMP |
Turbo charger (DIESEL) |
| 13920-73J00-000 |
Elbow |
Turbo charger (DIESEL) |
| 13930-73J00-000 |
Pipe, turbo oil |
Turbo charger (DIESEL) |
| 13941-66G00-000 |
GASKET,OIL DRAIN PIPE |
Turbo charger (DIESEL) |
| 13941-66G01-000 |
GASKET,OIL DRAIN PIPE |
Turbo charger (DIESEL) |
| 13941-73J00-000 |
Bolt, union - 10x35 |
Turbo charger (DIESEL) |
| 13942-73J00-000 |
Bolt, union - 10x27 |
Turbo charger (DIESEL) |
| 13943-73J00-000 |
Gasket - 12.2x18x3 |
Turbo charger (DIESEL) |
| 13946-73J00-000 |
Bolt - 6x16 |
Turbo charger (DIESEL) |
| 13950-73J00-000 |
Pipe, oil return |
Turbo charger (DIESEL) |
| 13951-73J00-000 |
Hose, oil return |
Turbo charger (DIESEL) |
| 13961-73J00-000 |
Deflector, turbo air |
Turbo charger (DIESEL) |
| 14116-66G00-000 |
Bolt,turbo outlet pipe |
Turbo charger (DIESEL) |
| 16937-67G10-000 |
BOLT,6X16 |
Turbo charger (DIESEL) |
