Search › Model › RH413
RH413

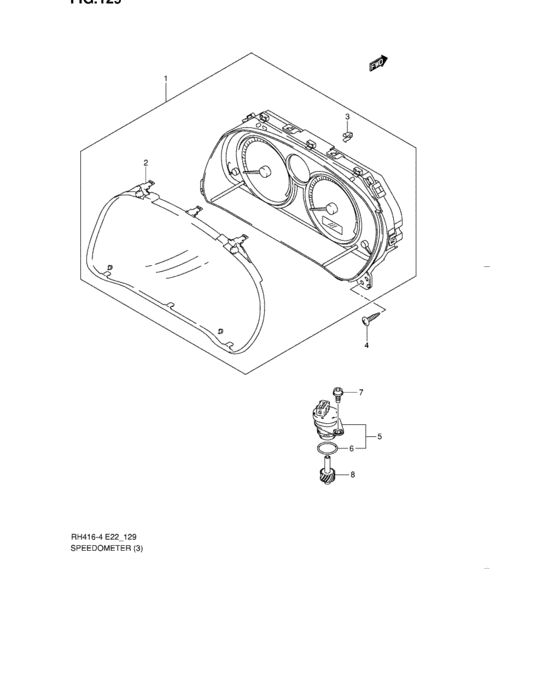

Speedometer (DIESEL) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 34100-68J30-000 | SPEEDOMETER ASSY,COMB |
| 1 | 34100-68J20-000 | SPEEDOMETER ASSY,COMB |
| 2 | 34112-59J00-000 | GLASS,METER WINDOW |
| 3 | 09409-08326-000 | CLIP |
| 4 | 03142-0520A-000 | スクリュ |
| 4 | 03142-0520B-000 | SCREW |
| 5 | 34960-68J00-000 | Sensor assy, speed |
| 6 | 34962-68J00-000 | O ring |
| 7 | 34924-68J00-000 | Bolt |
| 8 | 34915-68J10-000 | Gear, speed sensor |
| OEM | Part name | Category |
|---|---|---|
| 03142-0520A-000 | スクリュ | Speedometer (DIESEL) |
| 03142-0520B-000 | SCREW | Speedometer (DIESEL) |
| 09409-08326-000 | CLIP | Speedometer (DIESEL) |
| 34100-68J20-000 | SPEEDOMETER ASSY,COMB | Speedometer (DIESEL) |
| 34100-68J30-000 | SPEEDOMETER ASSY,COMB | Speedometer (DIESEL) |
| 34112-59J00-000 | GLASS,METER WINDOW | Speedometer (DIESEL) |
| 34915-68J10-000 | Gear, speed sensor | Speedometer (DIESEL) |
| 34924-68J00-000 | Bolt | Speedometer (DIESEL) |
| 34960-68J00-000 | Sensor assy, speed | Speedometer (DIESEL) |
| 34962-68J00-000 | O ring | Speedometer (DIESEL) |
