RH413

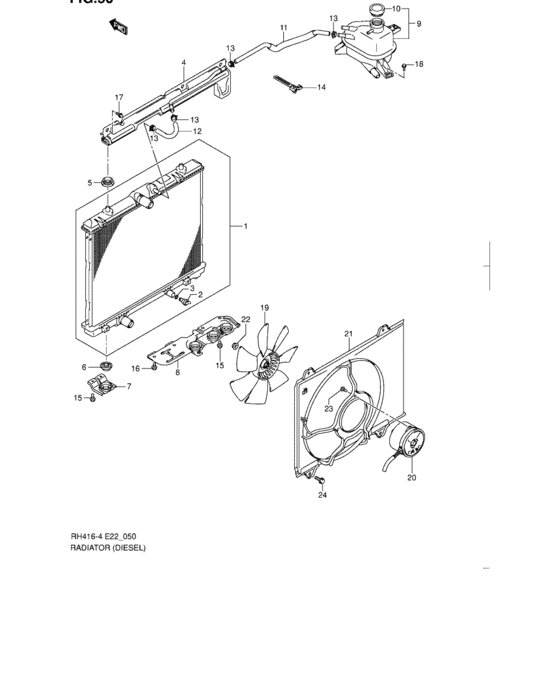

Radiator (DIESEL) 25
| # | OEM | Part name |
|---|---|---|
| 1 | 17700-73J00-000 | RADIATOR ASSY |
| 2 | 17751-61A00-000 | PLUG,DRAIN |
| 3 | 17759-72010-000 | O-RING |
| 4 | 17811-73J00-000 | BRACKET,RDTR SUPPORT UPPER |
| 5 | 17812-54G00-000 | MOUNT,RDTR SUPPORT UPR |
| 6 | 17813-60G10-000 | MOUNT,RDTR SUPPORT LWR |
| 7 | 17814-73J00-000 | BRACKET,RDTR SUPPORT LOWER |
| 8 | 17814-73J10-000 | BRACKET,RDTR SUPPORT LOWER |
| 9 | 17930-73J00-000 | TANK ASSY,DEGASSING |
| 10 | 17920-68DB0-000 | CAP,DEGASSING TANK 1.1 |
| 11 | 17936-73J00-000 | HOSE,RDTR TO DEGASSING TANK 2 |
| 12 | 17942-73J00-000 | HOSE,RDTR TO DEGASSING TANK 1 |
| 13 | 09401-14404-000 | CLIP |
| 14 | 09407-12404-000 | CLAMP(L:140) |
| 15 | 01551-0816C-000 | Bolt |
| 16 | 01551-1016A-000 | Bolt |
| 17 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 18 | 02162-0630A-000 | SCREW |
| 19 | 17111-73J00-000 | FAN,COOLING 7 BLADES |
| 20 | 17120-73J00-000 | MOTOR ASSY,COOLING FAN |
| 21 | 17760-73J00-000 | SHROUD |
| 22 | 08316-2005A-000 | NUT |
| 23 | 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate |
| 23 | 02142-0510B-000 | SCREW - Bolt |
| 24 | 09122-86002-000 | SCREW(6X12) |
| OEM | Part name | Category |
|---|---|---|
| 01551-0816C-000 | Bolt | Radiator (DIESEL) |
| 01551-1016A-000 | Bolt | Radiator (DIESEL) |
| 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate | Radiator (DIESEL) |
| 02142-0510B-000 | SCREW - Bolt | Radiator (DIESEL) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Radiator (DIESEL) |
| 02162-0630A-000 | SCREW | Radiator (DIESEL) |
| 08316-2005A-000 | NUT | Radiator (DIESEL) |
| 09122-86002-000 | SCREW(6X12) | Radiator (DIESEL) |
| 09401-14404-000 | CLIP | Radiator (DIESEL) |
| 09407-12404-000 | CLAMP(L:140) | Radiator (DIESEL) |
| 17111-73J00-000 | FAN,COOLING 7 BLADES | Radiator (DIESEL) |
| 17120-73J00-000 | MOTOR ASSY,COOLING FAN | Radiator (DIESEL) |
| 17700-73J00-000 | RADIATOR ASSY | Radiator (DIESEL) |
| 17751-61A00-000 | PLUG,DRAIN | Radiator (DIESEL) |
| 17759-72010-000 | O-RING | Radiator (DIESEL) |
| 17760-73J00-000 | SHROUD | Radiator (DIESEL) |
| 17811-73J00-000 | BRACKET,RDTR SUPPORT UPPER | Radiator (DIESEL) |
| 17812-54G00-000 | MOUNT,RDTR SUPPORT UPR | Radiator (DIESEL) |
| 17813-60G10-000 | MOUNT,RDTR SUPPORT LWR | Radiator (DIESEL) |
| 17814-73J00-000 | BRACKET,RDTR SUPPORT LOWER | Radiator (DIESEL) |
| 17814-73J10-000 | BRACKET,RDTR SUPPORT LOWER | Radiator (DIESEL) |
| 17920-68DB0-000 | CAP,DEGASSING TANK 1.1 | Radiator (DIESEL) |
| 17930-73J00-000 | TANK ASSY,DEGASSING | Radiator (DIESEL) |
| 17936-73J00-000 | HOSE,RDTR TO DEGASSING TANK 2 | Radiator (DIESEL) |
| 17942-73J00-000 | HOSE,RDTR TO DEGASSING TANK 1 | Radiator (DIESEL) |
