Search › Model › RH413
RH413

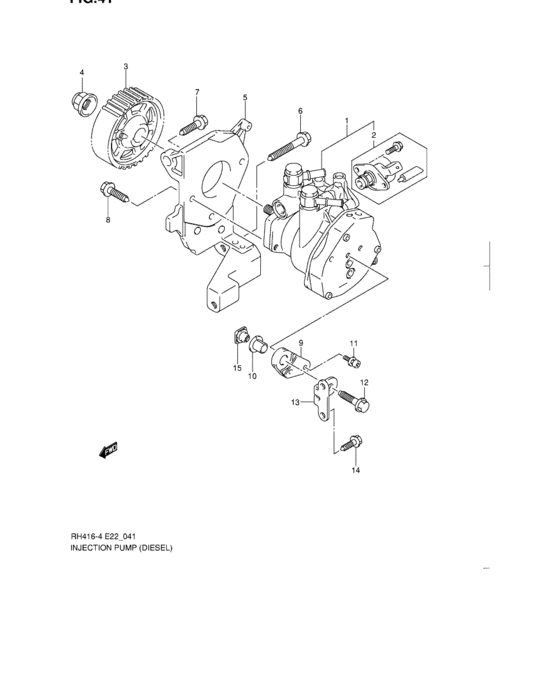

Injection pump (DIESEL) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 15200-73J00-000 | Pump, injection |
| 2 | 12820-73J00-000 | Regulator |
| 3 | 12811-73J00-000 | Gear, injection pump |
| 4 | 12812-66G10-000 | NUT,M14 |
| 5 | 12813-73J00-000 | Bracket, inj pump |
| 6 | 12821-73J00-000 | Bolt - 8x55 |
| 7 | 12830-73J00-000 | Bolt - 8x35 |
| 8 | 13967-66GA0-000 | Bolt - 6x30 |
| 9 | 12816-73J00-000 | Bracket, pump rear |
| 10 | 12817-73J00-000 | Bush |
| 11 | 12822-73J00-000 | Bolt - 5x16 |
| 12 | 95192-73J00-000 | Bolt, compressor bracket |
| 13 | 12814-73J00-000 | Bracket, pump rear |
| 14 | 16592-67G00-000 | BOLT,6X18 |
| 15 | 12818-73J00-000 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 12811-73J00-000 | Gear, injection pump | Injection pump (DIESEL) |
| 12812-66G10-000 | NUT,M14 | Injection pump (DIESEL) |
| 12813-73J00-000 | Bracket, inj pump | Injection pump (DIESEL) |
| 12814-73J00-000 | Bracket, pump rear | Injection pump (DIESEL) |
| 12816-73J00-000 | Bracket, pump rear | Injection pump (DIESEL) |
| 12817-73J00-000 | Bush | Injection pump (DIESEL) |
| 12818-73J00-000 | Nut | Injection pump (DIESEL) |
| 12820-73J00-000 | Regulator | Injection pump (DIESEL) |
| 12821-73J00-000 | Bolt - 8x55 | Injection pump (DIESEL) |
| 12822-73J00-000 | Bolt - 5x16 | Injection pump (DIESEL) |
| 12830-73J00-000 | Bolt - 8x35 | Injection pump (DIESEL) |
| 13967-66GA0-000 | Bolt - 6x30 | Injection pump (DIESEL) |
| 15200-73J00-000 | Pump, injection | Injection pump (DIESEL) |
| 16592-67G00-000 | BOLT,6X18 | Injection pump (DIESEL) |
| 95192-73J00-000 | Bolt, compressor bracket | Injection pump (DIESEL) |
