RH413

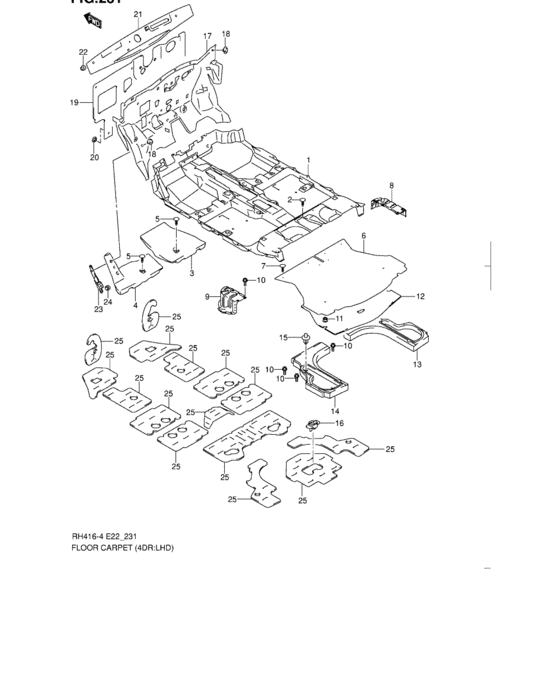

Floor carpet (4DR:LHD) 28
| # | OEM | Part name |
|---|---|---|
| 1 | 75110-55G51-R8V | CARPET,FL |
| 2 | 09409-10302-P4Z | CLIP(GRAY) |
| 3 | 75621-54G10-000 | PAD,DASH LOWER,R |
| 4 | 75671-54G10-000 | PAD,DASH LOWER,L |
| 5 | 09409-08321-5ES | CLIP(BLACK) |
| 6 | 75130-55G00-R2B | CARPET,LUGGAGE FL |
| 6 | 75130-55G10-R2B | CARPET,LUGGAGE FL |
| 8 | 75434-54G01-000 | PANEL,RR SEAT SUPPORT,R |
| 9 | 75435-54G01-000 | PANEL,RR SEAT SUPPORT,L |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 11 | 09410-00072-000 | CLAMP |
| 12 | 75410-55G00-000 | COVER,SPARE TIRE |
| 12 | 75410-54G30-000 | COVER,SPARE TIRE |
| 13 | 75431-55G01-000 | PAD,SPARE TIRE COVER |
| 14 | 75432-55G00-000 | PAD,TIRE COVER UNDER,L |
| 15 | 09409-07330-P4Z | CLIP(GRAY) |
| 16 | 75450-54G01-000 | HOLDERSPARES TIRE |
| 16 | 75450-80J00-000 | HOLDER,SPARE TIRE |
| 16 | 75450-60G00-000 | HOLDER,SPARE TIRE |
| 17 | 75210-54G12-000 | SILENCER,DASH PANEL |
| 17 | 75210-54G30-000 | SILENCER,DASH PANEL |
| 18 | 09148-05037-000 | CLIP |
| 19 | 72443-54G31-000 | SILENCER,DASH PANEL OUTER |
| 20 | 09148-05048-000 | NUT |
| 21 | 72444-54G00-000 | SILENCER,COWL UPPER |
| 23 | 75551-54G10-000 | BRACKET,FOOTREST |
| 24 | 08316-1006A-000 | NUT |
| 25 | 99611-60A01-000 | SHEET,SILENCER 800X1000X3 |
| OEM | Part name | Category |
|---|---|---|
| 02162-0612A-000 | SCREW - Bolt, bracket | Floor carpet (4DR:LHD) |
| 08316-1006A-000 | NUT | Floor carpet (4DR:LHD) |
| 09148-05037-000 | CLIP | Floor carpet (4DR:LHD) |
| 09148-05048-000 | NUT | Floor carpet (4DR:LHD) |
| 09409-07330-P4Z | CLIP(GRAY) | Floor carpet (4DR:LHD) |
| 09409-08321-5ES | CLIP(BLACK) | Floor carpet (4DR:LHD) |
| 09409-10302-P4Z | CLIP(GRAY) | Floor carpet (4DR:LHD) |
| 09410-00072-000 | CLAMP | Floor carpet (4DR:LHD) |
| 72443-54G31-000 | SILENCER,DASH PANEL OUTER | Floor carpet (4DR:LHD) |
| 72444-54G00-000 | SILENCER,COWL UPPER | Floor carpet (4DR:LHD) |
| 75110-55G51-R8V | CARPET,FL | Floor carpet (4DR:LHD) |
| 75130-55G00-R2B | CARPET,LUGGAGE FL | Floor carpet (4DR:LHD) |
| 75130-55G10-R2B | CARPET,LUGGAGE FL | Floor carpet (4DR:LHD) |
| 75210-54G12-000 | SILENCER,DASH PANEL | Floor carpet (4DR:LHD) |
| 75210-54G30-000 | SILENCER,DASH PANEL | Floor carpet (4DR:LHD) |
| 75410-54G30-000 | COVER,SPARE TIRE | Floor carpet (4DR:LHD) |
| 75410-55G00-000 | COVER,SPARE TIRE | Floor carpet (4DR:LHD) |
| 75431-55G01-000 | PAD,SPARE TIRE COVER | Floor carpet (4DR:LHD) |
| 75432-55G00-000 | PAD,TIRE COVER UNDER,L | Floor carpet (4DR:LHD) |
| 75434-54G01-000 | PANEL,RR SEAT SUPPORT,R | Floor carpet (4DR:LHD) |
| 75435-54G01-000 | PANEL,RR SEAT SUPPORT,L | Floor carpet (4DR:LHD) |
| 75450-54G01-000 | HOLDERSPARES TIRE | Floor carpet (4DR:LHD) |
| 75450-60G00-000 | HOLDER,SPARE TIRE | Floor carpet (4DR:LHD) |
| 75450-80J00-000 | HOLDER,SPARE TIRE | Floor carpet (4DR:LHD) |
| 75551-54G10-000 | BRACKET,FOOTREST | Floor carpet (4DR:LHD) |
| 75621-54G10-000 | PAD,DASH LOWER,R | Floor carpet (4DR:LHD) |
| 75671-54G10-000 | PAD,DASH LOWER,L | Floor carpet (4DR:LHD) |
| 99611-60A01-000 | SHEET,SILENCER 800X1000X3 | Floor carpet (4DR:LHD) |
