| 01550-0612A-000 |
Bolt |

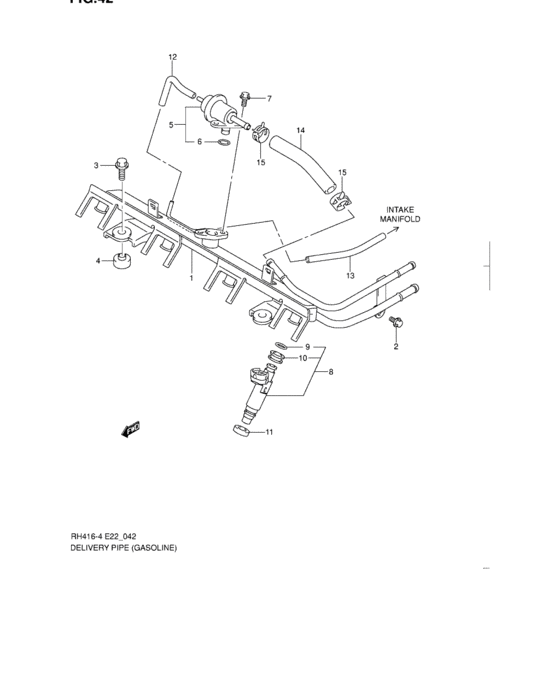

Delivery pipe (GASOLINE) |
| 01550-0830A-000 |
Bolt - Bolt, mount oil seal cover |
Delivery pipe (GASOLINE) |
| 09103-06168-000 |
BOLT(6X10) |
Delivery pipe (GASOLINE) |
| 09320-08062-000 |
CUSHION |
Delivery pipe (GASOLINE) |
| 09355-35006-601 |
Hose(3.5X7.5X601) |
Delivery pipe (GASOLINE) |
| 09355-35754-601 |
HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) |
Delivery pipe (GASOLINE) |
| 09356-55117-600 |
HOSE(5.5X11.5X600) - Hose, fuel rtn (body side) |
Delivery pipe (GASOLINE) |
| 09401-10409-000 |
CLIP |
Delivery pipe (GASOLINE) |
| 15610-67D00-000 |
REGULATOR,FUEL PRESSURE |
Delivery pipe (GASOLINE) |
| 15710-09300-000 |
O-RING |
Delivery pipe (GASOLINE) |
| 15710-51E10-000 |
O-RING |
Delivery pipe (GASOLINE) |
| 15710-54G00-000 |
INJECTOR ASSY,FUEL |
Delivery pipe (GASOLINE) |
| 15710-54G20-000 |
Injector assy,fuel |
Delivery pipe (GASOLINE) |
| 15710-80G01-000 |
INJECTOR ASSY,FUEL |
Delivery pipe (GASOLINE) |
| 15720-09300-000 |
GROMMET |
Delivery pipe (GASOLINE) |
| 15730-54G00-000 |
PIPE,FUEL DELIVERY |
Delivery pipe (GASOLINE) |
| 15735-58B00-000 |
INSULATOR,DELIVERY PIPE - Insulator, delivery pipe |
Delivery pipe (GASOLINE) |
