RH413

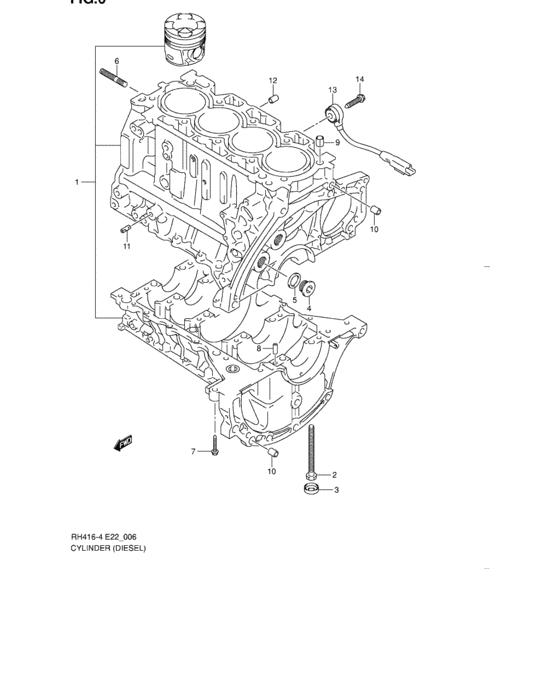

Cylinder (DIESEL) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 11210-73J00-000 | Block set, cylinder |
| 2 | 11261-73J00-000 | Bolt - 9x115 |
| 3 | 11263-73J00-000 | Plug - D:25 |
| 4 | 11295-73J00-000 | Plug, drain - 22x150 |
| 5 | 11298-73J00-000 | Gasket - D:22.7 |
| 6 | 11264-73J00-000 | Stud bolt - M10 |
| 7 | 11164-67G00-000 | BOLT,6X36 |
| 8 | 11266-73J00-000 | Pin - 8x17 |
| 9 | 11267-73J00-000 | Pin - 14x15 |
| 10 | 11268-73J00-000 | Pin - 14x20 |
| 11 | 11269-73J00-000 | Pin - 8x18 |
| 12 | 11273-73J00-000 | Pin - 10x13 |
| 13 | 18640-73J00-000 | Sensor, knock |
| 14 | 18641-73J00-000 | Bolt - 8x30 |
| OEM | Part name | Category |
|---|---|---|
| 11164-67G00-000 | BOLT,6X36 | Cylinder (DIESEL) |
| 11210-73J00-000 | Block set, cylinder | Cylinder (DIESEL) |
| 11261-73J00-000 | Bolt - 9x115 | Cylinder (DIESEL) |
| 11263-73J00-000 | Plug - D:25 | Cylinder (DIESEL) |
| 11264-73J00-000 | Stud bolt - M10 | Cylinder (DIESEL) |
| 11266-73J00-000 | Pin - 8x17 | Cylinder (DIESEL) |
| 11267-73J00-000 | Pin - 14x15 | Cylinder (DIESEL) |
| 11268-73J00-000 | Pin - 14x20 | Cylinder (DIESEL) |
| 11269-73J00-000 | Pin - 8x18 | Cylinder (DIESEL) |
| 11273-73J00-000 | Pin - 10x13 | Cylinder (DIESEL) |
| 11295-73J00-000 | Plug, drain - 22x150 | Cylinder (DIESEL) |
| 11298-73J00-000 | Gasket - D:22.7 | Cylinder (DIESEL) |
| 18640-73J00-000 | Sensor, knock | Cylinder (DIESEL) |
| 18641-73J00-000 | Bolt - 8x30 | Cylinder (DIESEL) |
